Discontinued - Hydromatic Pump

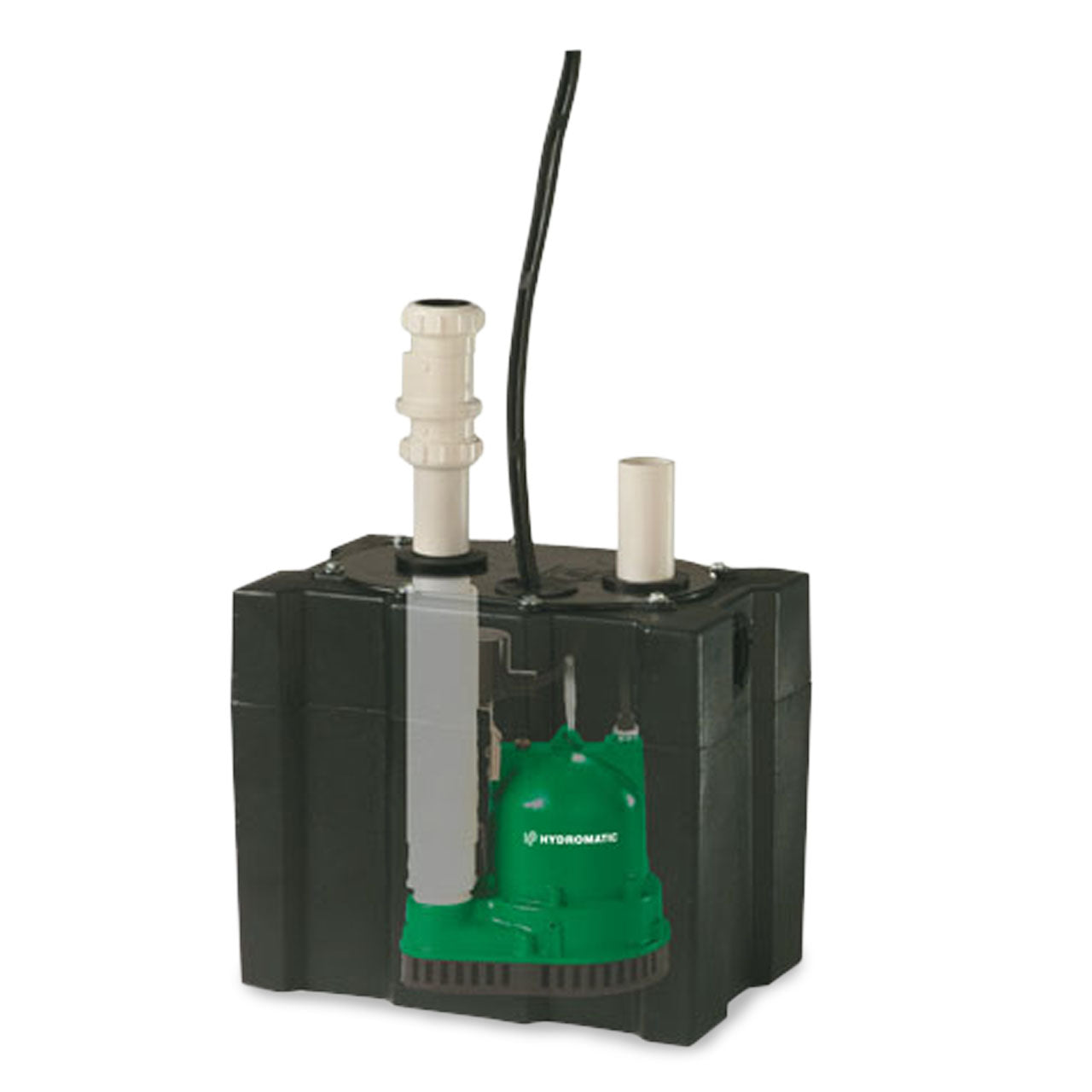

Hydromatic 118 Unassembled Sump Pump Basin Description

The Hydromatic 118 Basin System is here for the professional plumber. This package is an economical, above floor system. The Hydromatic sump pump basin allows you to add a drain without adding the headache of major remodeling (i.e. cutting concrete to install a basin). The 118 Basin System is a solution for immediate installation as well as a great idea for retro-fitting. The compact polyethylene water box with outside dimensions of approximately 17" x 12" x 14" (see dimensional drawing) is ideal for small places. Although compact, it has the capacity for washing machine discharge, laundry trays, utility sinks, wet bars and air conditioning or dehumidifier drainage.

At the heart of the Hydromatic 118 Basin System is the V-A1 sump pump. This .3 HP heavy-duty sump pump is a proven Hydromatic design that runs on 115 volts. The oil-cooled motor also has built-in automatic thermal overload protection and a 10' power cord. The compact basin & V-A1 pump make the Hydromatic 118 Basin System a value-packed package for the professional plumber. The Hydromatic SKV40 submersible pump is specifically designed to meet the demands of residential wastewater and sewage applications, and the quality standards of the professional plumber. See all sump pump basins for sale on our website.

Hydromatic 118 Unassembled Sump Pump Basin Typical Application

• Wet Bars
• Air Conditioner
• Humidifer Condensate
• Laundry Trays

Hydromatic 118 Unassembled Sump Pump Basin Superior Features

• Package includes 10-gallon polyethylene sump box, cover, gasket package, discharge nipple, check valve and V-A1 pump
• Hydromatic's V-A1, 1/3 HP sump pump provided
• The 118 sump package gives the professional plumber the ability to add a drain without breaking concrete
• Ideal for wet bars, air conditioner/humidifer condensate and laundry trays
• Assembled unit

Hydromatic V-A1 Technical Details

• Pump switch included
• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.33 HP
• RPM: 1550
• MAXIMUM HEAD: up to 25'
• MAXIMUM CAPACITY: up to 48 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1/2"
• AMP DRAW (full load): 8.0
• CORD LENGTH: 10'; Type SJTW
• VOLTAGE: 1ø, 115V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Shaded Pole with Thermal Overload, Oil Filled
• IMPELLER CONSTRUCTION: Thermoplastic

Hydromatic V-A1 Pump Curve
