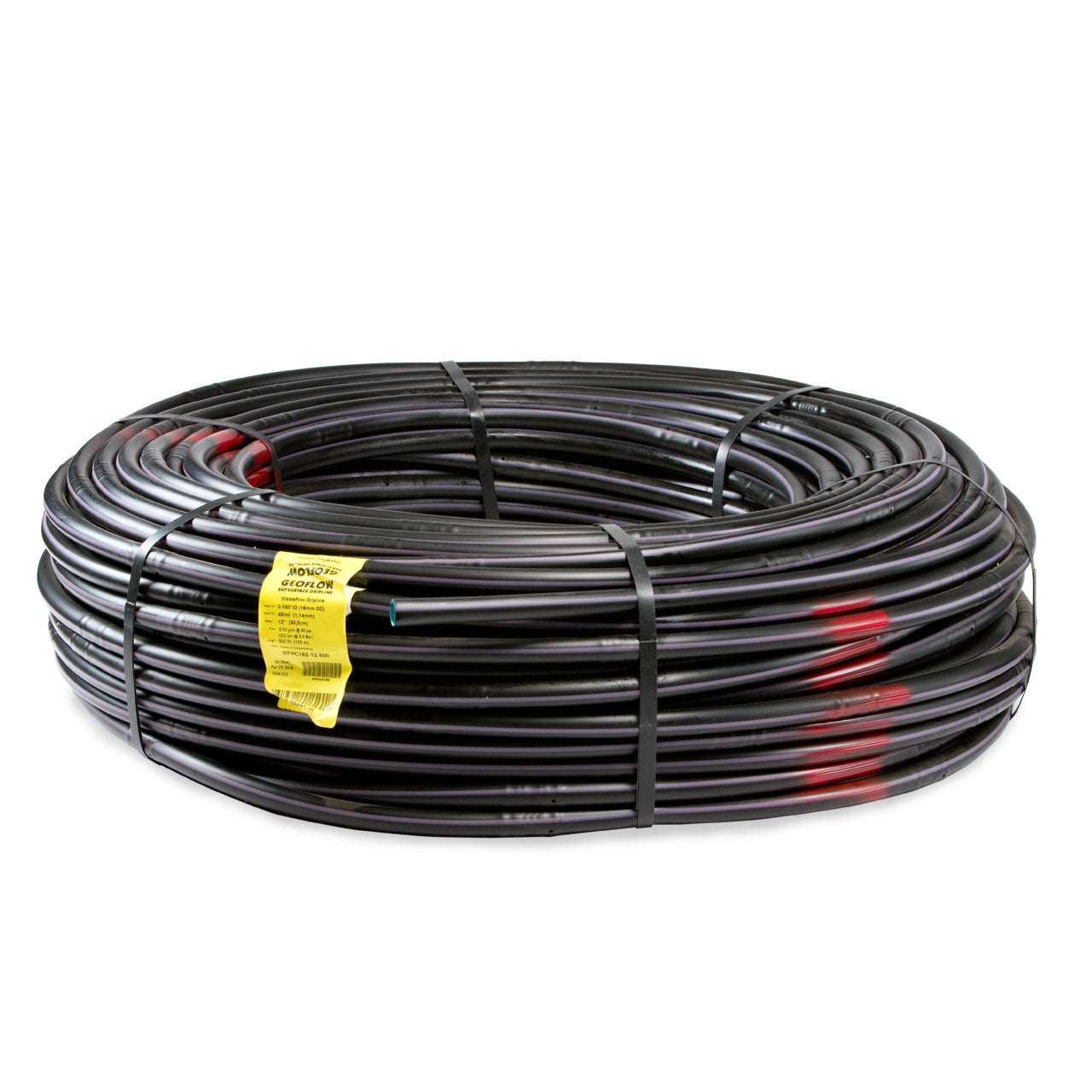

The flexible 1/2” polyethylene dripline has large emitters regularly spaced in the line. With the dripline hidden about six inches below ground, effluent is distributed slowly and uniformly, reducing ponding, even in difficult soils and hilly terrain. WASTEFLOW is built to last. It is guaranteed to be trouble-free from root intrusion with built-in nano-ROOTGUARD® protection, and the dripline wall is protected from organic growth with the Geoshield lining. WASTEFLOW provides uniform distribution. The emitters have a Coefficient of variation of less than .05. Use 600 series compression adapters or lockslip fittings to connect the dripline to PVC pipe.

Nano-ROOTGUARD® Protection WASTEFLOW dripline features patented nano-ROOTGUARD technology to prevent roots from clogging the emission points. The pre-emergent, Treflan®, is bound into WASTEFLOW emitters when they are molded to divert roots from growing into the emitter outlet. The system is guaranteed against root intrusion for 15 years.

BACTERICIDE Protection Geoshield® is incorporated into the inner lining and emitters of WASTEFLOW dripline to prevent bacteria from forming and eliminates the need to scour the tubing. It is a tin-based formula that defeats the energy system of microbial cells. This means smaller pumps or larger zones can be used with WASTEFLOW dripline than unprotected dripline.

PC vs. CLASSIC Geoflow, Inc. offers WASTEFLOW dripline in both pressures compensating (WASTEFLOW PC) and non-compensating (WASTEFLOW Classic) models. We recommend that WASTEFLOW PC be used when the advantages are of substantial economic value.

1. Very long runs.
2. Steep slopes. Systems should be designed for the dripline lateral to follow the contour. If this is possible, the extra cost of pressure regulators required for WASTEFLOW Classic would likely be less than the incremental cost of WASTEFLOW PC...
3. Rolling terrain. If the difference in height from trough to peak exceeds six feet then WASTEFLOW PC should be used.
4. Vacuum relief valves must be placed at the top of each rise.

WASTEFLOW PC and WASTEFLOW Classic can be interchanged to meet filter and zone flow requirements

Geoflow Wasteflow PC Drip Tubing Specifications

The dripline shall consist of nominal sized one-half inch linear low density polyethylene tubing, with turbulent flow drip emitters bonded to the inside wall. The drip emitter flow passage shall be 0.032” x 0.045” square. The tubing shall have an outside diameter (O.D.) of approximately .64-inches and an inside diameter (I.D.) of approximately .55-inches. The tubing shall consist of three layers; the inside layer shall be a Geoshield® protection, the middle layer shall be black and the outside layer shall be purple striped for easy identification. The dripline shall have emitters regularly spaced 24” (or 18” or 12”) apart. The pressure compensating emitters shall be molded from virgin polyethylene resin with a silicone rubber diaphragm. The pressure compensating emitters shall have nominal discharge rates of 0.53 gallons per hour. The emitters shall be impregnated with Treflan® to inhibit root intrusion for a minimum period of fifteen years and shall be guaranteed by the manufacturer to inhibit root intrusion for this period. 0.53 gph WASTEFLOW PC pressure compensating dripline shall be Geoflow model number WFPC16-2-24 (or WFPC16-2-18 or WFPC16-2-12)

Geoflow Wasteflow PC Drip Tubing Technical Details
