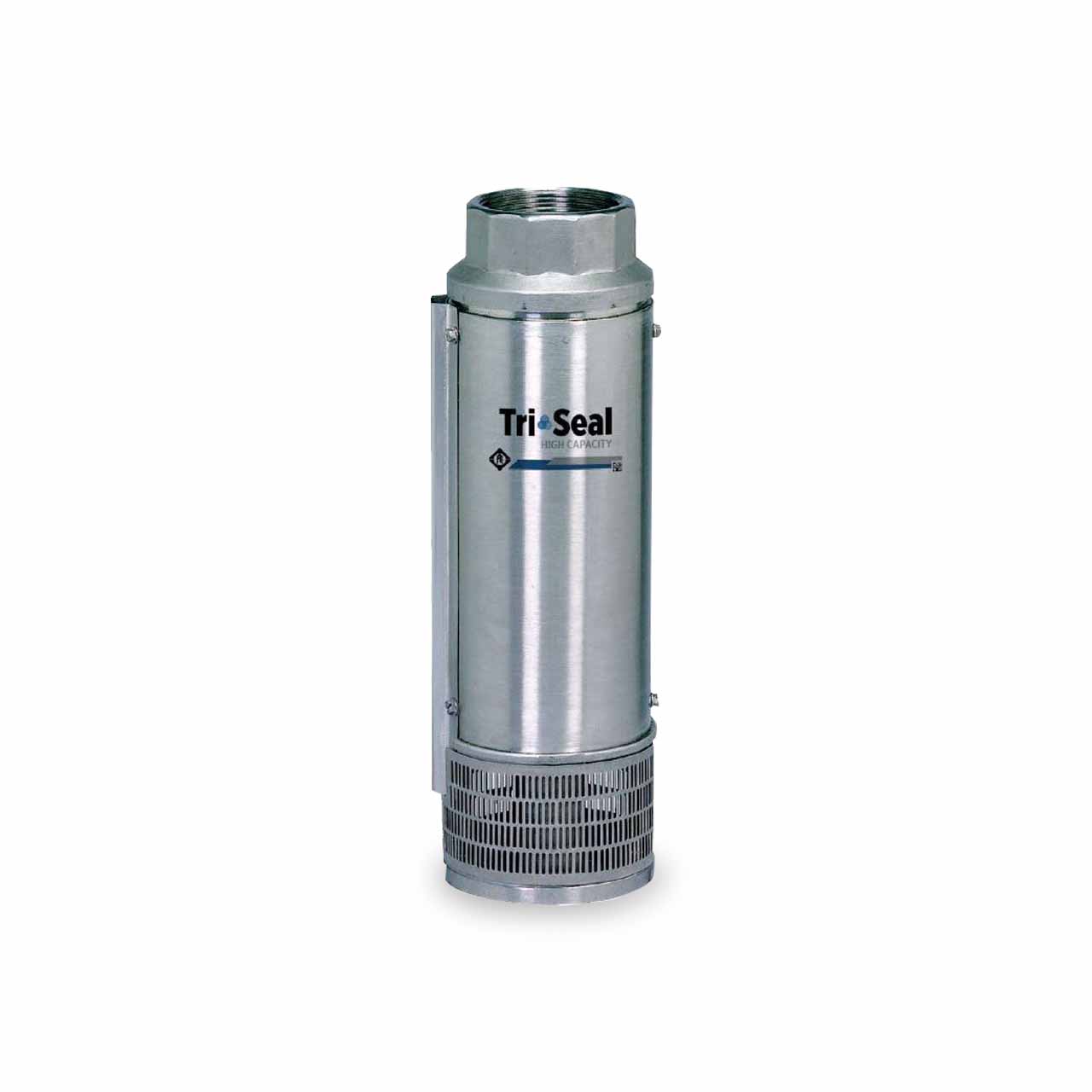

Franklin Electric Tri-Seal 6" High Capacity 125FH20S6-PE Submersible Well Pump End Only 125 GPM 20 HP
Franklin Electric Tri-Seal 6" High Capacity 125FH20S6-PE Submersible Well Pump End Only 125 GPM 20 HP
SKU : FEC93652510
In Stock Quantity:0
:
:
Brand
:
Regular price
$5,202.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Tri-Seal 6" High Capacity Pumps
Ideal for farm, home, irrigation, industry, municipal and commercial applications, equipped with the power, performance and reliability you expect from Franklin Electric. Flow ratings of 50, 75, 100 and 125 GPM with TDH up to 1200 ft. Horsepower ranges from 1-1/2 to 40 hp.
Franklin Electric Tri-Seal 6" High Capacity Pump Features
- Heavy-Duty Stainless Steel Discharge Head and Motor Bracket
- Stainless Steel Shaft, Shell, Intake Screen and Cable Guard Provides Corrosion Resistance and Longer Pump Life
- High Flow Hydraulic Staging Allows for Maximum Output, Exceeds all Energy Efficiency Standards and Provides Increased Product Longevity.
- Glass-Filled Modified PPO Nylon Impeller Stage Assemblies Provide Exceptional Strength and Durability
- Ceramic Shaft Sleeve and Rubber Discharge Bearing Minimize Bearing Wear and Shaft Misalignment
- 3" NPT Heavy-Duty Stainless Steel Discharge Head
- Modular Motor Bracket Enabling 4" or 6" Motor Mount for 5-10 Horsepower Units
- Flow Ratings of 50, 75, 100 and 125 GPM with TDH up to 1400 ft.
- Horsepower Ranges from 1-1/2 to 40 HP
Specifications
Specifications
Franklin Electric Tri-Seal 6" High Capacity Pump Specifications
- DISCHARGE SIZE: 3.0” NPT
- NOMINAL FLOW RATING: 125 GPM
- HORSEPOWER: 20 HP
- MAXIMUM CAPACITY: 160 GPM
- MAXIMUM HEAD: 600’
- STAGES: 9
- IMPELLER MATERIAL: Glass-Filled Modified PPO
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C
Franklin Electric Tri-Seal 6" High Capacity 125 GPM PumpPerformance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Tri-Seal 6" High Capacity Pump Product Resources
Download Franklin Electric Tri-Seal 6" High Capacity Brochure
Download Franklin Electric Tri-Seal 6" High Capacity Catalog Pages
