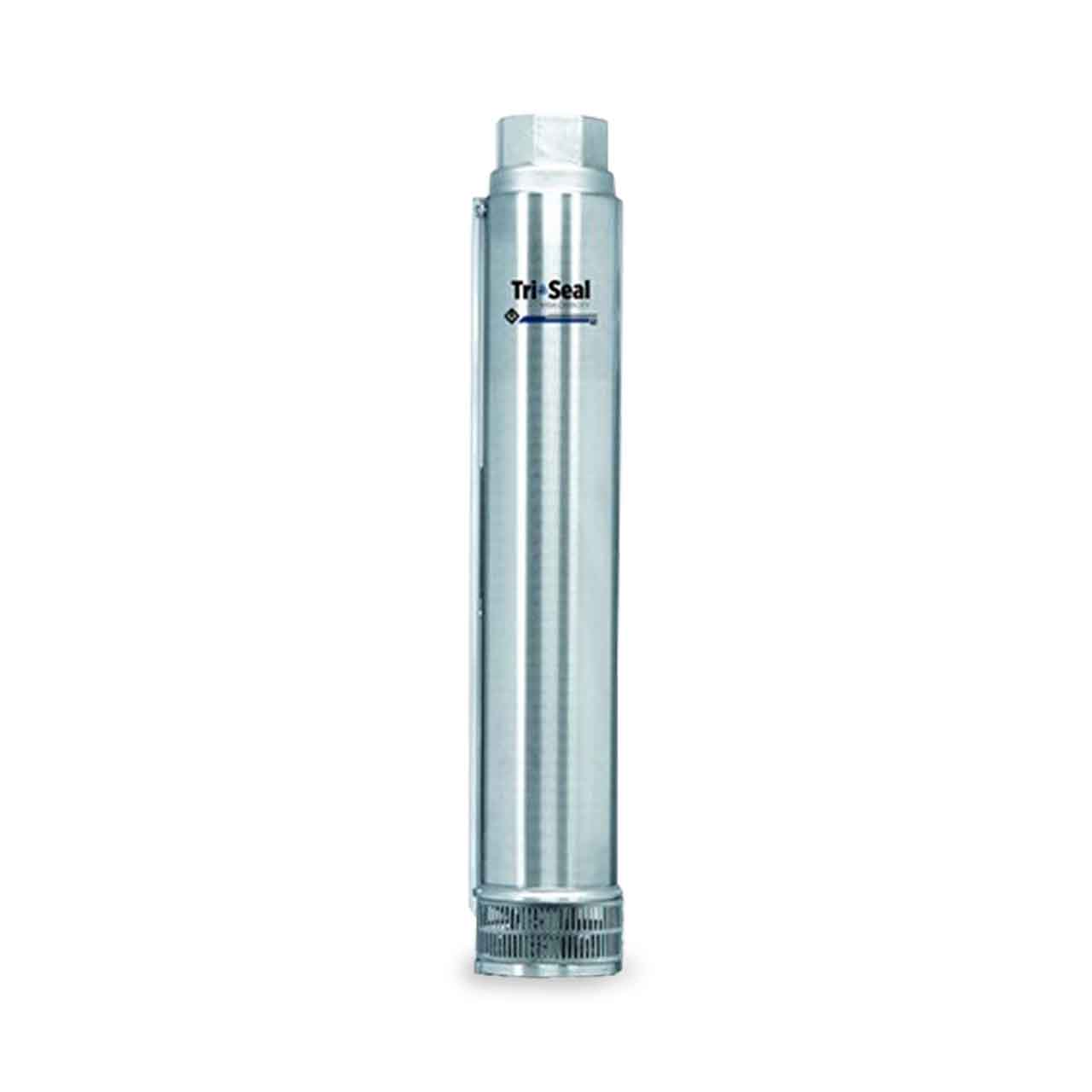

Franklin Electric Tri-Seal 4" High Capacity Pumps

Ideal for farm, home, irrigation, industry, municipal and commercial applications, equipped with the power, performance and reliability you expect from Franklin Electric. Flow ratings of 35, 45, 60 and 90 GPM with TDH up to 1200 ft. Horsepower ranges from 1 to 10 hp.

Franklin Electric Tri-Seal 4" High Capacity Pump Features

• Four Performance Ranges: 35, 45, 60 and 90 GPM
• 2" NPT Discharge, with and without an Internal Stainless Steel Wafer-Style Check Valve
• Stainless Steel Discharge Head and Motor Bracket
• High Flow Hydraulic Staging Allows for Maximum Pump Output, Exceeds all Energy Efficiency Standards and Provides Increased Product Longevity
• Ceramic Shaft Sleeve and Rubber Discharge Bearing Eliminates Sand Wear
• Intermediate Bearing for Increased Shaft Stability when Pump Lengths Dictate on High Horse High Performance Constructions
• Impeller Eye and Hub Seals for Improved Performance and Efficiency
• Stainless Steel Hex Pump Shaft, Shell and Shaft Coupling
• High Capacity Upthrust Assembly for Protection During Start-Up and Operation (45, 60 and 90 GPM models)
• Designed for Optimal Performance when Powered by Franklin's Corrosion-Resistant 4" Submersible Motors
• Check Valve Must be Ordered Separately
• DOE (Department of Energy) Compliant


Franklin Electric 90FH5S4-PE 4" High Capacity Pump Specifications

• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 90 GPM
• HORSEPOWER: 5.0 HP
• MAXIMUM CAPACITY: 130 GPM
• MAXIMUM HEAD: 350’
• STAGES: 12
• IMPELER DESIGN: Floating Stack
• IMPELLER MATERIAL: Glass-Filled Modified PPO
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C

Franklin Electric Tri-Seal 4" High Capacity 60 GPM Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric Tri-Seal 4" High Capacity Pump Product Resources

Download Franklin Electric Tri-Seal 4" High Capacity Catalog Pages

Download Franklin Electric 4" and 6" Submersible Pumps Manual
