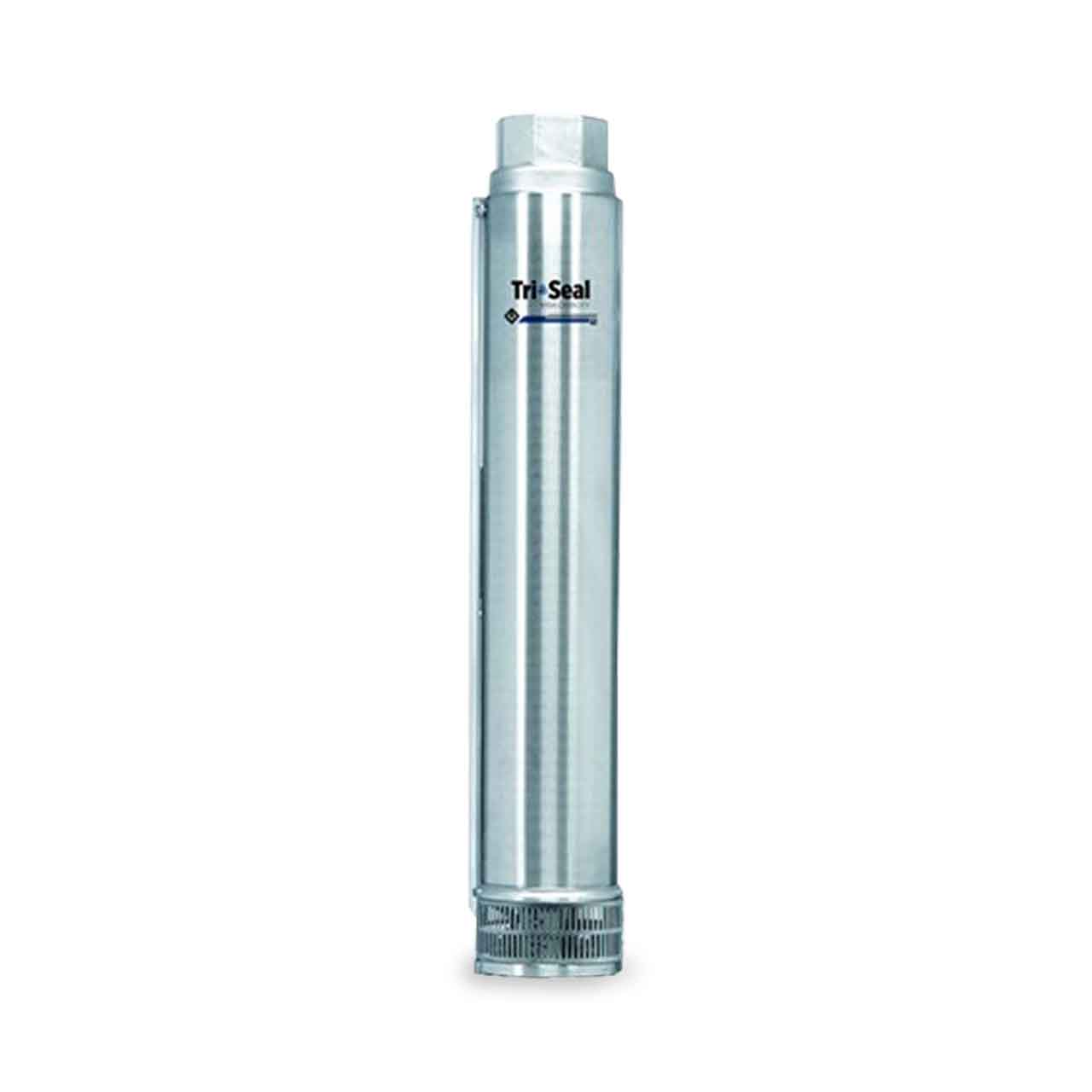

Franklin Electric Tri-Seal 4" High Capacity 45FH10S4-PE Submersible Well Pump End Only 45 GPM 10 HP
Franklin Electric Tri-Seal 4" High Capacity 45FH10S4-PE Submersible Well Pump End Only 45 GPM 10 HP
SKU : FEC93654531
In Stock Quantity:0
:
:
Brand
:
Regular price
$5,228.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Tri-Seal 4" High Capacity Pumps
Ideal for farm, home, irrigation, industry, municipal and commercial applications, equipped with the power, performance and reliability you expect from Franklin Electric. Flow ratings of 35, 45, 60 and 90 GPM with TDH up to 1200 ft. Horsepower ranges from 1 to 10 hp.
Franklin Electric Tri-Seal 4" High Capacity Pump Features
- Four Performance Ranges: 35, 45, 60 and 90 GPM
- 2" NPT Discharge, with and without an Internal Stainless Steel Wafer-Style Check Valve
- Stainless Steel Discharge Head and Motor Bracket
- High Flow Hydraulic Staging Allows for Maximum Pump Output, Exceeds all Energy Efficiency Standards and Provides Increased Product Longevity
- Ceramic Shaft Sleeve and Rubber Discharge Bearing Eliminates Sand Wear
- Intermediate Bearing for Increased Shaft Stability when Pump Lengths Dictate on High Horse High Performance Constructions
- Impeller Eye and Hub Seals for Improved Performance and Efficiency
- Stainless Steel Hex Pump Shaft, Shell and Shaft Coupling
- High Capacity Upthrust Assembly for Protection During Start-Up and Operation (45, 60 and 90 GPM models)
- Designed for Optimal Performance when Powered by Franklin's Corrosion-Resistant 4" Submersible Motors
- Check Valve Must be Ordered Separately
- DOE (Department of Energy) Compliant
Specifications
Specifications
Franklin Electric 45FH10S4-PE 4" High Capacity Pump Specifications
- DISCHARGE SIZE: 2.0” NPT
- NOMINAL FLOW RATING: 45 GPM
- HORSEPOWER: 10 HP
- MAXIMUM CAPACITY: 63 GPM
- MAXIMUM HEAD: 950’
- STAGES: 31
- IMPELER DESIGN: Floating Stack
- IMPELLER MATERIAL: Glass-Filled Modified PPO
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C
Franklin Electric Tri-Seal 4" High Capacity 45 GPM Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Tri-Seal 4" High Capacity Pump Product Resources
Download Franklin Electric Tri-Seal 4" High Capacity Catalog Pages
Download Franklin Electric 4" and 6" Submersible Pumps Manual
