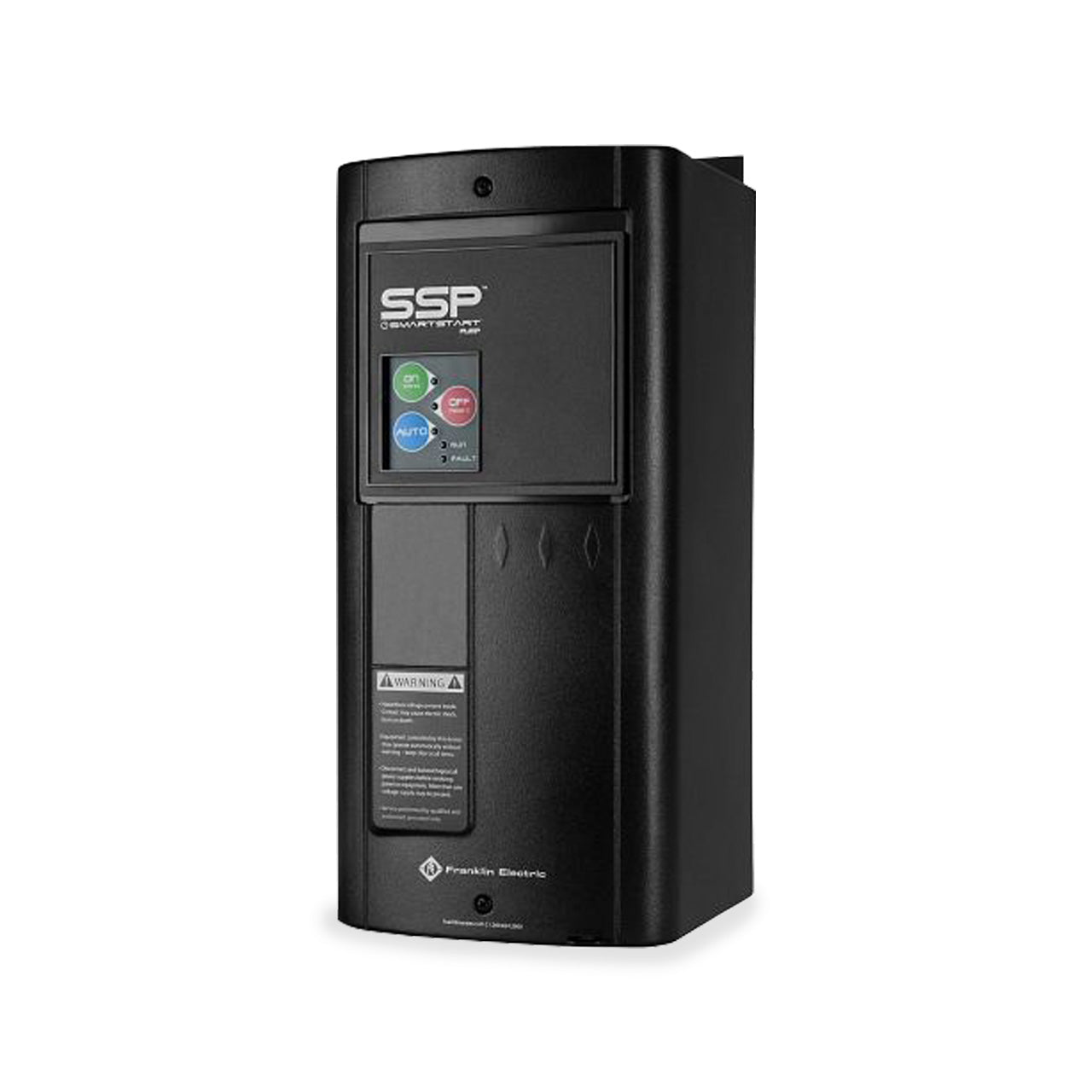

The SmartStart™ Pump Starter offers industry-leading protections including underload (dry-run protection) and enhanced Class 10 electronic overload protection to prolong pumping system's life.
3-Phase, 50/60 Hz, 200~600 VAC ±10%, NEMA Type 3R Enclosed Starter

• Ambient Operating Temperature: 41 °F (5 °C) to 104 °F (40 °C)
• Ambient Storage Temperature: -40 °F (-40 °C) to 185 °F (85 °C)
• Relative Humidity: 5% to 95% Non-Condensing

Franklin Electric SSP - SmartStart Pump Starter Features

• Integrated Electronic Overload Protection
• Enhanced Class 10 Electronic Overload Protection
• Specifically Designed for Submersible Motors
• Built-in 1.15 Service Factor Compensation
• Underload (dry-run protection)
• Current Phase Unbalance Protection
• Cycle Fault Protection
• Locked Rotor and Stall Protection
• Multi-Voltage Operating Range with Automation I/O
• Accepts 200-600 VAC Directly, True Plug and Play
• Includes a Dry Contact Auto-Run Input and Fault Relay Output
• Industrial Grade Construction
• Door Mounted, Heavy-Duty HOA Switch
• Housed in an Outdoor Rated, Gasketed, NEMA 3R Enclosure
• NEMA/IEC Rated Magnetic Contactors Feature 2.5 Millio Electrical Cycles at Full Rated Current
• Optional Circuit Breaker Disconnect (Service Entrance Rated)
• UL 489 Circuit Breaker Provides Branch and Short Circuit Protection
• No Fuses Required - Saves Time and Money
• Lockable Handle for Safety
• Revolutionary Motor Protection
• Aware: SMARTSTART™ Protects your System from Adverse Dry-Run Conditions with Built-In Underload Protection Standard.
• Watchful: SMARTSTART™ Detects Harmful Extended Starting Conditions with Maximum Time to Start. Monitors Motor In-Rush Current Conditions and Trips if the Motor Doesn't Start within 10 Seconds (class 10 overload) Regardless of FLA Setting.
• Active: Active Current Monitoring Provides Superior Protection Against Locked Rotor and Stall Conditions, Tripping Faster than a Standard Inverse Trip Curve, Regardless of the FLA Setting.

Franklin Electric SSP3B -3A100S  SmartStart Pump Starter Specifications

• Enclosure Rating: NEMA Type 3R
• Phase: Three-Phase
• Volts: 200-600 VAC
• Minimum Current: 40 A
• Maximum Current: 52 A
• Operating Temperature: 41 °F (5 °C) to 104 °F (40 °C)
• Storage Temperature: -40 °F (-40 °C) to 185 °F (85 °C)
• Pump Starter with Disconnect
