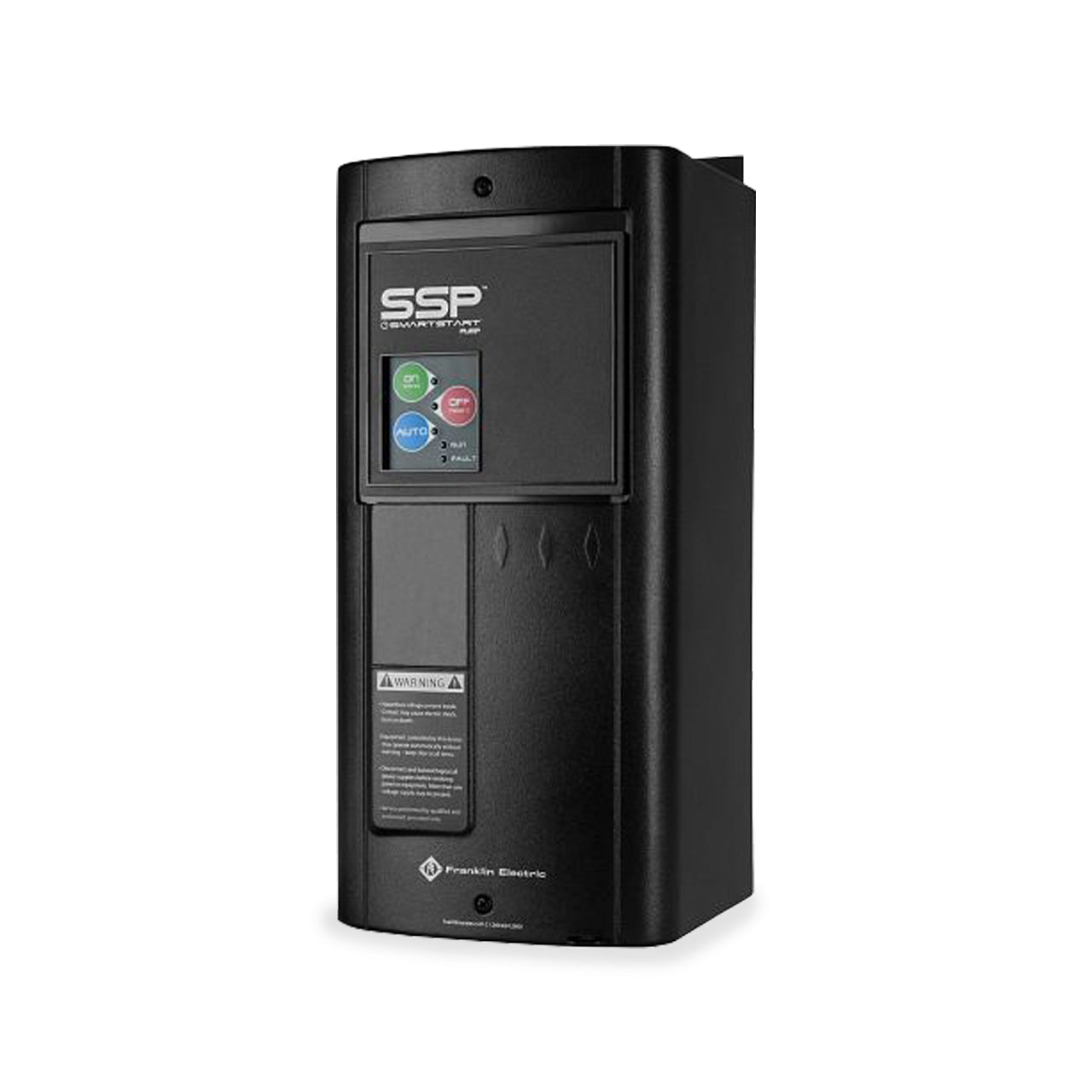

Franklin Electric SSP3B-3A015S SmartStart Pump Starter 200-600 VAC 6-8A NEMA 3R
Franklin Electric SSP3B-3A015S SmartStart Pump Starter 200-600 VAC 6-8A NEMA 3R
SKU : FECSSP3B-3A015S
In Stock Quantity:0
:
Brand
:
Regular price
$2,076.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric SSP - SmartStart Pump Starter
The SmartStart™ Pump Starter offers industry-leading protections including underload (dry-run protection) and enhanced Class 10 electronic overload protection to prolong pumping system's life.
3-Phase, 50/60 Hz, 200~600 VAC ±10%, NEMA Type 3R Enclosed Starter
- Ambient Operating Temperature: 41 °F (5 °C) to 104 °F (40 °C)
- Ambient Storage Temperature: -40 °F (-40 °C) to 185 °F (85 °C)
- Relative Humidity: 5% to 95% Non-Condensing
Franklin Electric SSP - SmartStart Pump Starter Features
- Integrated Electronic Overload Protection
- Enhanced Class 10 Electronic Overload Protection
- Specifically Designed for Submersible Motors
- Built-in 1.15 Service Factor Compensation
- Underload (dry-run protection)
- Current Phase Unbalance Protection
- Cycle Fault Protection
- Locked Rotor and Stall Protection
- Multi-Voltage Operating Range with Automation I/O
- Accepts 200-600 VAC Directly, True Plug and Play
- Includes a Dry Contact Auto-Run Input and Fault Relay Output
- Industrial Grade Construction
- Door Mounted, Heavy-Duty HOA Switch
- Housed in an Outdoor Rated, Gasketed, NEMA 3R Enclosure
- NEMA/IEC Rated Magnetic Contactors Feature 2.5 Millio Electrical Cycles at Full Rated Current
- Optional Circuit Breaker Disconnect (Service Entrance Rated)
- UL 489 Circuit Breaker Provides Branch and Short Circuit Protection
- No Fuses Required - Saves Time and Money
- Lockable Handle for Safety
- Revolutionary Motor Protection
- Aware: SMARTSTART™ Protects your System from Adverse Dry-Run Conditions with Built-In Underload Protection Standard.
- Watchful: SMARTSTART™ Detects Harmful Extended Starting Conditions with Maximum Time to Start. Monitors Motor In-Rush Current Conditions and Trips if the Motor Doesn't Start within 10 Seconds (class 10 overload) Regardless of FLA Setting.
- Active: Active Current Monitoring Provides Superior Protection Against Locked Rotor and Stall Conditions, Tripping Faster than a Standard Inverse Trip Curve, Regardless of the FLA Setting.
Specifications
Specifications
Franklin Electric SSP3B -3A015S SmartStart Pump Starter Specifications
- Enclosure Rating: NEMA Type 3R
- Phase: Three-Phase
- Volts: 200-600 VAC
- Minimum Current: 6 A
- Maximum Current: 8 A
- Operating Temperature: 41 °F (5 °C) to 104 °F (40 °C)
- Storage Temperature: -40 °F (-40 °C) to 185 °F (85 °C)
- Pump Starter with Disconnect
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SSP -30S SmartStart Pump Starter Resources
Franklin Electric SSP - 30S SmartStart Pump Starter Owners Manual
