Franklin Electric SPS3R-RV-S1-J-G15 Standard Pump Soft Starter 200-600 VAC 6-8A
Franklin Electric SPS3R-RV-S1-J-G15 Standard Pump Soft Starter 200-600 VAC 6-8A
SKU : FECSPS3RRVS1JG15
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

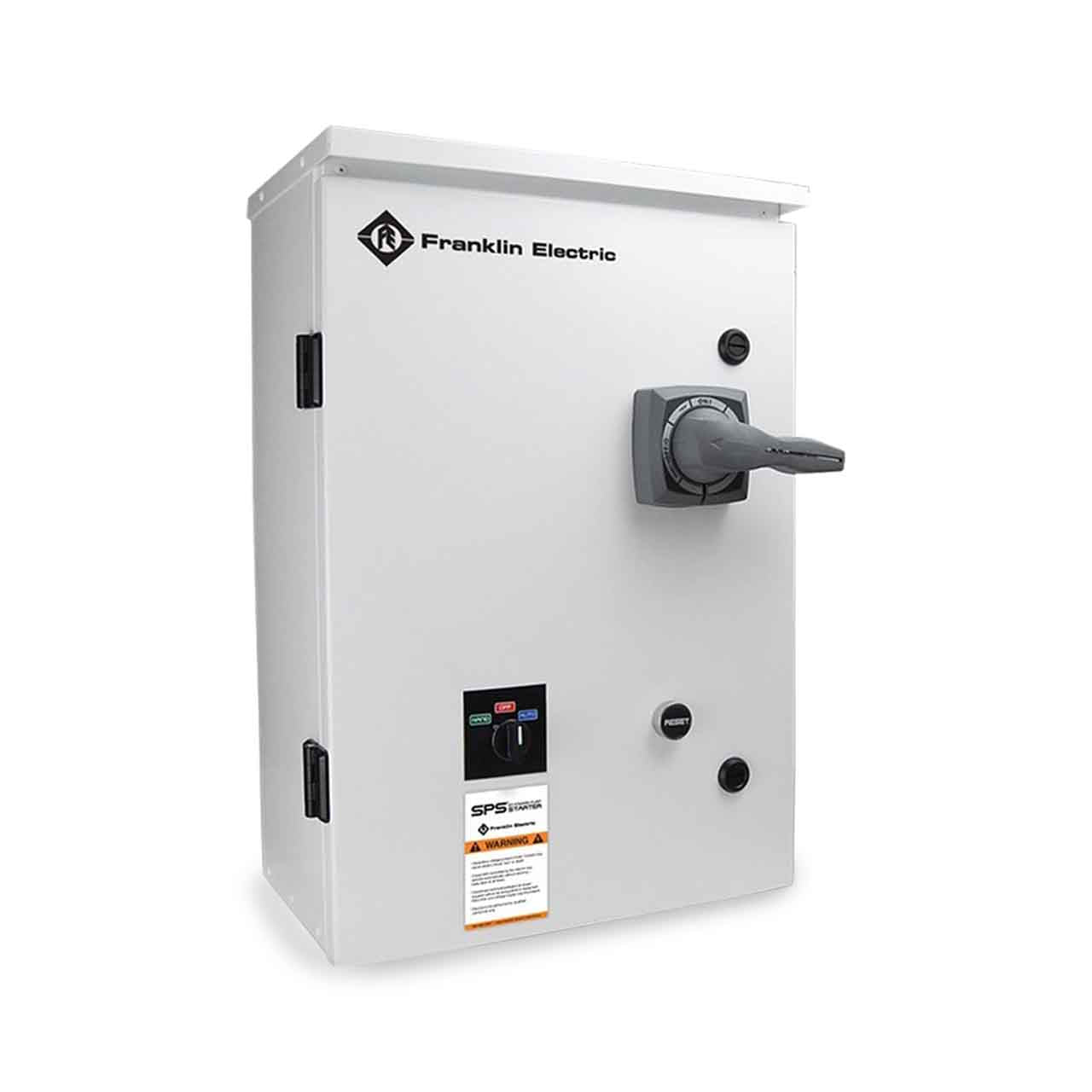

Franklin Electric Standard Pump Soft Starter
Integrated electronic pump protection overload, a wide range of voltage acceptance (200-600 VAC), and hp-rated contactor bypass. 3Ø, 50/60 Hz, 200~600 VAC, 2~75 hp.
Franklin Electric Standard Pump Soft Starter Features
- Electronic Motor Protection and Automation I/0
- Wide-Range, Class 10 Electronic Overload
- Current Phase Unbalance Protection
- Locked Rotor / Stall Protection
- Cycle Fault Protection
- Accepts 200-600 VAC Directly, True Plug and Play
- Voltage Auto-Run Input
- Dry Contact Auto-Run Input
- Status Relay Output
- Hand/Off/Auto Keypad with LEDs for Mode, Fault and Run Indication
- Soft Starter Features
- Full HP Rated Bypass Contactor
- Across-the-Line Start for Emergency Situations
- Adjustable Current Limit, Start/Stop Voltage and Start/Stop Time
- SCR Over-Temperature Detection
- Short SCR Detection
- Industrial Grade Construction
- Door Mounted HOA Keypad
- Housed in an Outdoor Rated, Gasketed, NEMA 3R Enclosure
- NEMA Rated Bypass Contactor Features 2.5 Million Electrical Cycles at Full Rated Current - Nearly Twice the Life as our Competitors
Specifications
Specifications
Franklin Electric Standard Pump Soft Starter Specifications
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Standard Pump Soft Starter Resources
Franklin Electric Standard Pump Soft Starter Specification Sheet
