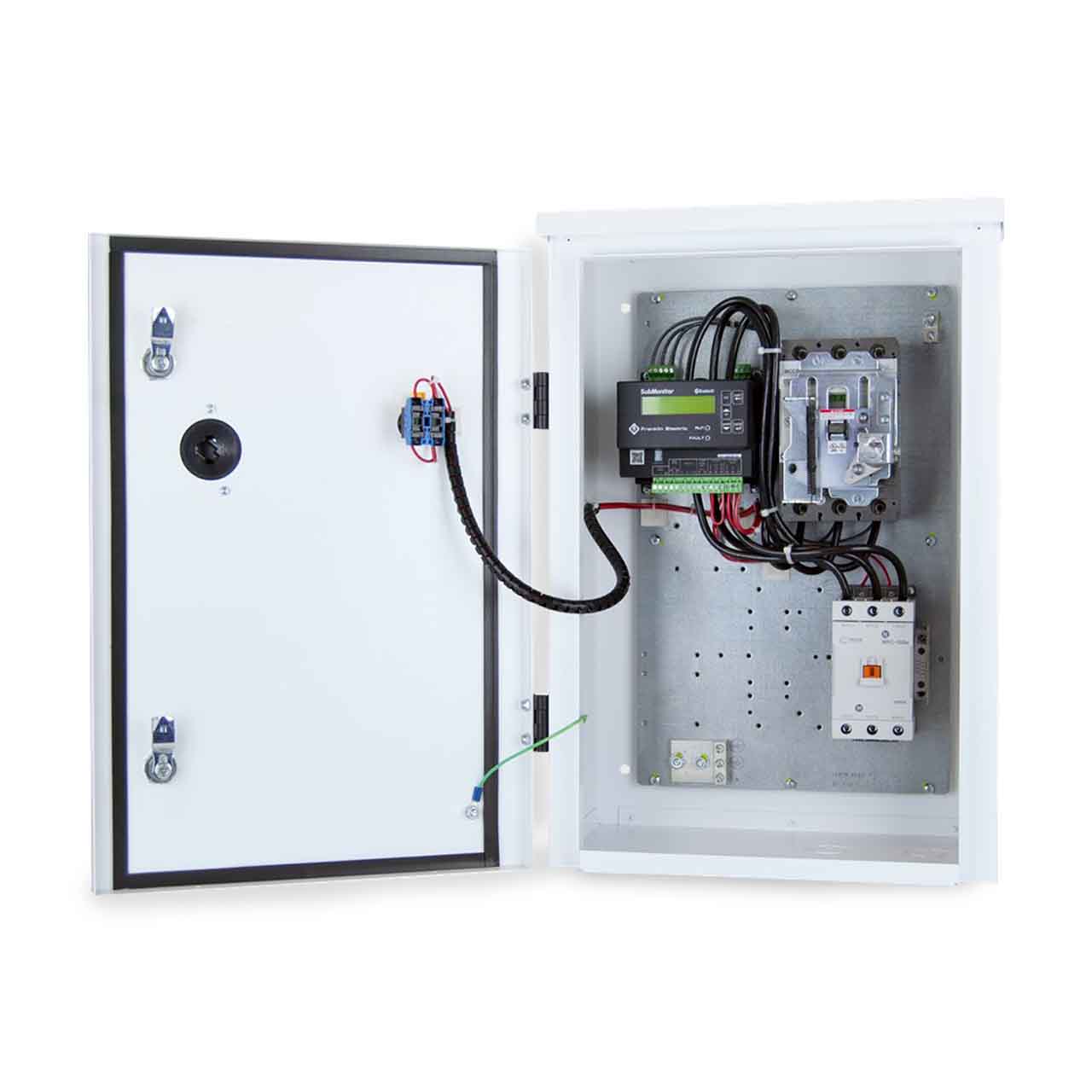

Equipped with the Franklin Electric SubMonitor overload relay, the SMS provides ideal motor protection for Franklin Electric submersible motors. The SMS also has an array of factory installable options for your specific application:

Franklin Electric SubMonitor Connect Starter Features

Electronic Overload Motor Protection
• Wide Range, Adjustable, Class 5-30 Electronic Overload
• Dry Pump Detection Protects Your Pump and Motor from Adverse Conditions and Allows for Time-Based Automatic Restart with Well Recovery Mode
• Industry-Leading Motor Protection for the Following Conditions: Over/Under Power (dry-run), Over/Under Voltage Protection, Voltage Phase Loss, Voltage and Current Phase Unbalance, Locked Rotor, Cycle Fault, Ground Fault
• Easy Access to Input and Output Terminals
• 32-Character, Backlit, NEMA 4x, Wash-Down Rated Screen Mounted on Front of Panel Allowing for Safe Viewing of Conditions while Motor is Running
• Motor Insulation Check
Real-Time & Date-Stamped Fault Logging
• Unit Ships with a Pre-Programmed Real Time Clock with a 10-Year Battery Backup
• Contains SepArate Fault, Configuration Change and Start Logs. Independent Logs Allow User to see Fault even if it Occurred Years Ago
• Fault Log Tracks 150 Faults with Date and Time Stamp Accurate Down to the Second; Allows Users to Diagnose Power Problems and Prove them to your Power Provider; Unit will give Users a 'Snapshot' of Conditions at the Time of Fault, Such as Line to Line Voltage and Current, Alarms Present and I/O Status; Format of Time Stamping Example: 7/7/1610:15:24
Application-Based Setup
• SubMonitor Connect is an Advanced, Comprehensive, 3-Phase Motor Protection Relay that Allows users to Dial in Protection and Automation with Extreme Accuracy and Parameter Depth. However, SubMonitor Connect also has a Streamlined Basic Setup Wizard to Allow Users to Get Up and Running Quickly.
• 9 Simple Steps to Program Unit
• Users Select Between Submersible, Surface or Custom and SubMonitor Prepopulates Protection Parameters Accordingly
• Confirm Basic Motor Info, Key Protection Info, Time to get Started
Automation Ready- Advanced Pump Control
• 12-240 VAC/VDC Wet Input for Remote Start/Stop
• Dry Contacts for Auto Run/ Shutdown or High Float/Low Float
• ModbuS RTA Communication
• Automatic Fault Reset and On and Off Delay Settings
• Well Recovery Mode
Heavy-Duty, Industrial-Grade Construction
• Hand-Off-Auto Switch Rated IP69K for Dust Tight, High Pressure Spray-Down Applications
• Outdoor Rated, Gasketed, Powder Coated, NEMA 3R Enclosure Designed in House by FCS to Optimize Layout and Functionality
• UL 489 Circuit Breaker Disconnect for Branch and Short Circuit Protection
• No Fuses Required Saving Time and Money
• Lockable Handle

Franklin Electric SubMonitor Connect Starter Specifications

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SubMonitor Starter Connect Resources

Franklin Electric SubMonitor Connect Brochure

Franklin Electric SubMonitor Connect Spec Sheet

Franklin Electric SubMonitor Connect Owners Manual
