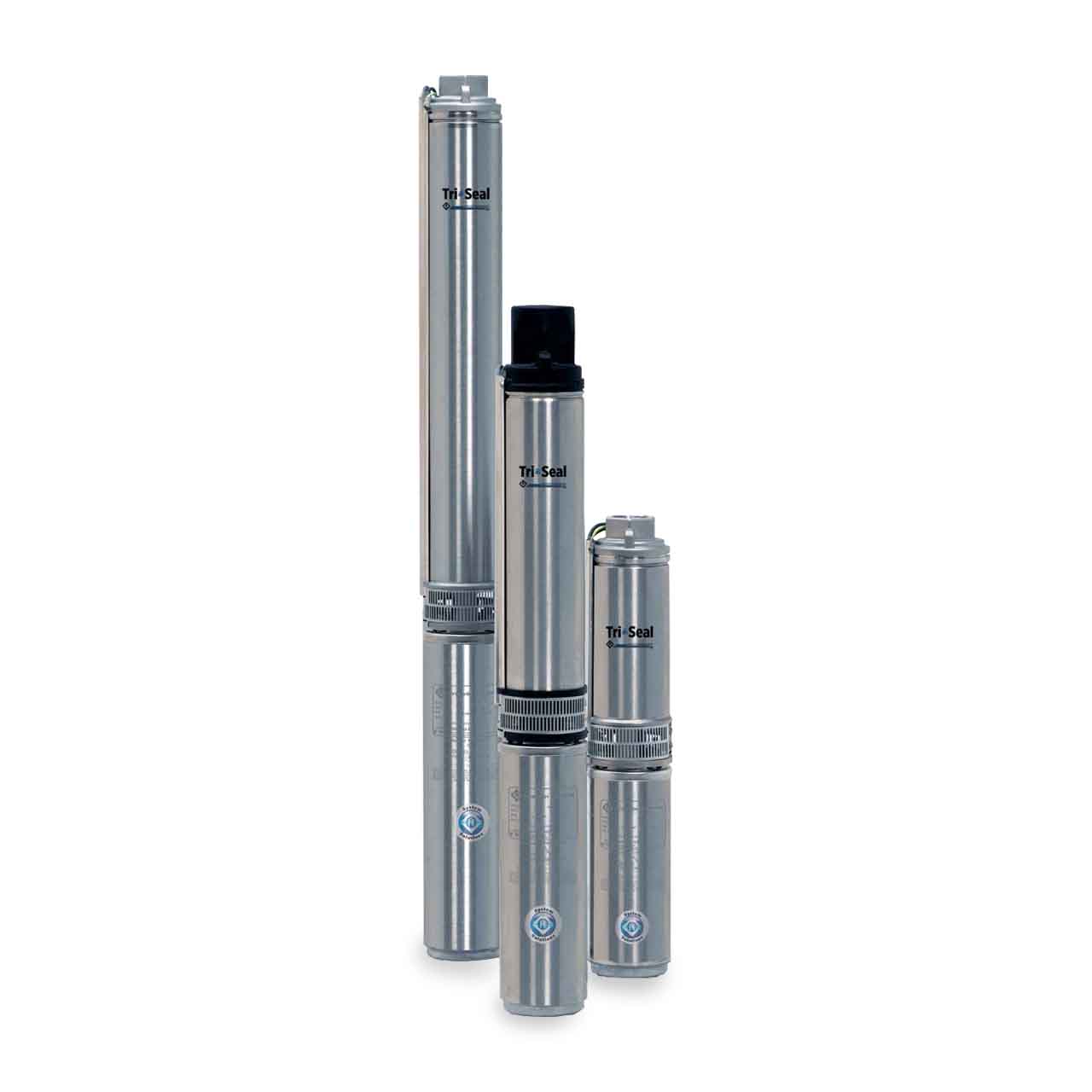

Franklin Electric SandHandler Tri-Seal 7JS07P4-3W230 Submersible Well Pump & Motor 7 GPM 0.75 HP 230V 1PH 3-Wire
Franklin Electric SandHandler Tri-Seal 7JS07P4-3W230 Submersible Well Pump & Motor 7 GPM 0.75 HP 230V 1PH 3-Wire
SKU : FEC93740740
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See Replacement Franklin Electric 3200 Series 7FR07P4-3W230 Submersible Pump 7 GPM 0.75 HP 230V 1PH 3-Wire
Franklin Electric SandHandler Tri-Seal Submersible Pump
The Standard J-Class Tri-Seal 4" submersible pump features the TRI-SEAL floating stage system. This stage system further improves efficiency and protects against wear when pumping abrasives (sand).
Franklin Electric SandHandler Tri-Seal Submersible Pump Features
- 300 Series Stainless Steel Hub Floats with Impeller Maintaining a Positive Seal.
- Phenolic Washer Provides Down-Thrust Protection
- Acetal Impeller Provides High Efficiency Performance and Abrasion Resistance
- Modified PPO Diffuser and Disc - Proven Abrasion Resistant Material
- Floating Stage Design Allows Impeller to Float Independently
- Removable, Spring-Loaded Check Valve
- Maximum Water Temperature: 120 °F / 49 °C
- Ceramic Shaft Sleeve and Rubber Discharge Bearing Protect Shaft and Eliminate Sand Wear
- Powered by Franklin Electric Corrosion Resistant 4" Submersible Motor with Lightning Protection.
- Patented Impeller Hub Seal System Seals Radially and Axially to Prevent Fluid Recirculation, Providing High Performance in the Harshest Conditions.
Specifications
Specifications
Franklin Electric Tri-Seal 7JS07P4-3W230 Submersible Pump Specifications
- Water Well Motors
- BODY CONSTRUCTION: Thermoplastic
- HORSEPOWER: 0.75 HP
- VOLTAGE: 1ø, 230V
- RPM: 3450
- MAX AMBIENT TEMPERATURE: 120°F/49°C
- LEAD: 3-wire
- CONTROL BOX REQUIRED Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 7 GPM
- HORSEPOWER: 0.75 HP
- MAXIMUM CAPACITY: 11 GPM
- MAXIMUM HEAD: 425’
- STAGES: 10
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Acetal
- BODY MATERIAL: Thermoplastic
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Franklin Electric SandHandler Tri-Seal 7 GPM Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SandHandler Tri-Seal Submersible Pump Product Resources
Download Franklin Electric SandHandler Tri-Seal Brochure
Download Franklin Electric SandHandler Tri-Seal Catalog Pages
