Discontinued See Replacement:  Franklin Electric 3200 Series 5FR07P4-PE Submersible Pump End Only 5 GPM 0.75 HP

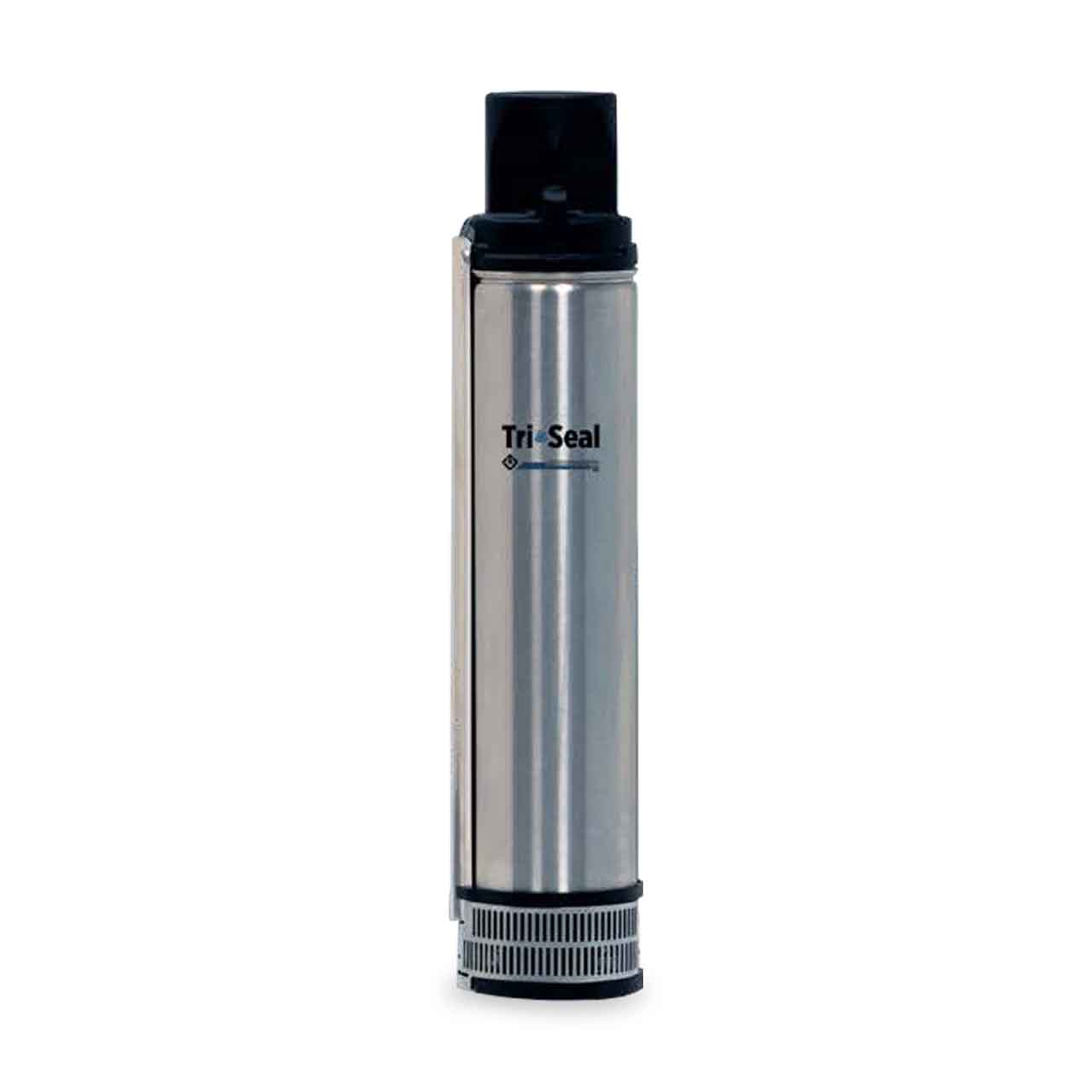

Franklin Electric SandHandler Tri-Seal Pump End

The Standard J-Class SandHandler 4" submersible pump features the TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand). All J-Class SandHandler pumps are unconditionally guaranteed against sand locking in abrasive well conditions for one full year.

Franklin Electric SandHandler Tri-Seal Pump Features

• 300 Series Stainless Steel Hub Floats with the Impeller Maintaining a Positive Seal.
• Phenolic Washer Provides Down-Thrust Protection.
• Acetal Impeller Provides High Efficiency Performance and Abrasion Resistance.
• Modified PPO Diffuser and Disc - Proven Abrasion Resistant Material.
• Floating Stage Design Allows Impeller to Float Independently.
• Removable, Spring-Loaded Check Valve.
• Maximum Water Temperature: 120°F / 49°C.
• Ceramic Shaft Sleeve and Rubber Discharge Bearing Protect Shaft and Eliminate Sand Wear.
• Powered by Franklin Electric Corrosion Resistant 4" Submersible Motor.
• Patented Impeller Hub Seal System Seals Radially and Axially to Prevent Fluid Recirculation, Providing High Performance in the Harshest Conditions.

Franklin Electric SandHandler Tri-Seal 5 GPM Well Pump End Specifications

• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 5 GPM
• HORSEPOWER: 0.75 HP
• MAXIMUM CAPACITY: 8 GPM
• MAXIMUM HEAD: 500’
• STAGES: 12
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Thermoplastic
• BODY MATERIAL: 300 Series Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C

Franklin Electric SandHandler Tri-Seal 5 GPM Well Pump Curve
