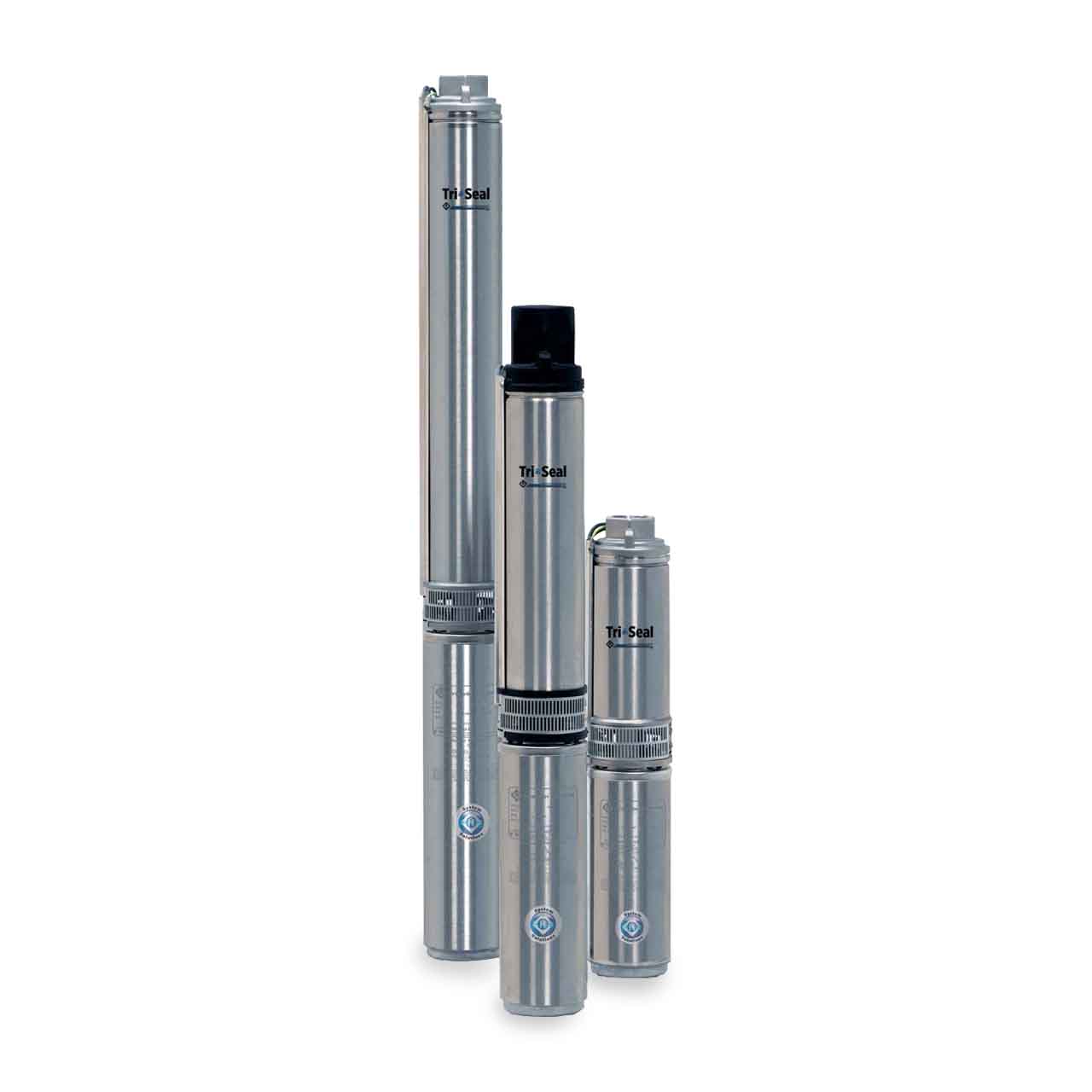

Franklin Electric SandHandler Tri-Seal Submersible Pump

The Standard J-Class Tri-Seal 4" submersible pump features the TRI-SEAL floating stage system. This stage system further improves efficiency and protects against wear when pumping abrasives (sand).

Franklin Electric SandHandler Tri-Seal Submersible Pump Features

• 300 Series Stainless Steel Hub Floats with Impeller Maintaining a Positive Seal.
• Phenolic Washer Provides Down-Thrust Protection
• Acetal Impeller Provides High Efficiency Performance and Abrasion Resistance
• Modified PPO Diffuser and Disc - Proven Abrasion Resistant Material
• Floating Stage Design Allows Impeller to Float Independently
• Removable, Spring-Loaded Check Valve
• Maximum Water Temperature: 120 °F / 49 °C
• Ceramic Shaft Sleeve and Rubber Discharge Bearing Protect Shaft and Eliminate Sand Wear
• Powered by Franklin Electric Corrosion Resistant 4" Submersible Motor with Lightning Protection.
• Patented Impeller Hub Seal System Seals Radially and Axially to Prevent Fluid Recirculation, Providing High Performance in the Harshest Conditions.

Franklin Electric Tri-Seal 20JS07S4-3W230 Submersible Pump Specifications

Water Well Motors
• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 0.75 HP
• VOLTAGE: 1ø, 230V
• RPM: 3450
• MAX AMBIENT TEMPERATURE: 120°F/49°C
• LEAD: 3-wire
• CONTROL BOX REQUIRED
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 20 GPM
• HORSEPOWER: 0.75 HP
• MAXIMUM CAPACITY: 30 GPM
• MAXIMUM HEAD: 200’
• STAGES: 5
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Acetal
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric SandHandler Tri-Seal 20 GPM Submersible Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SandHandler Tri-Seal Submersible Pump Product Resources

Download Franklin Electric SandHandler Tri-Seal Brochure

Download Franklin Electric SandHandler Tri-Seal Catalog Pages

Download Franklin Electric Submersible Pumps Manual
