Franklin Electric SandHandler Tri-Seal 15JS1P4-PE Submersible Well Pump End Only 15 GPM 1.0 HP
Franklin Electric SandHandler Tri-Seal 15JS1P4-PE Submersible Well Pump End Only 15 GPM 1.0 HP
SKU : FEC93751515
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

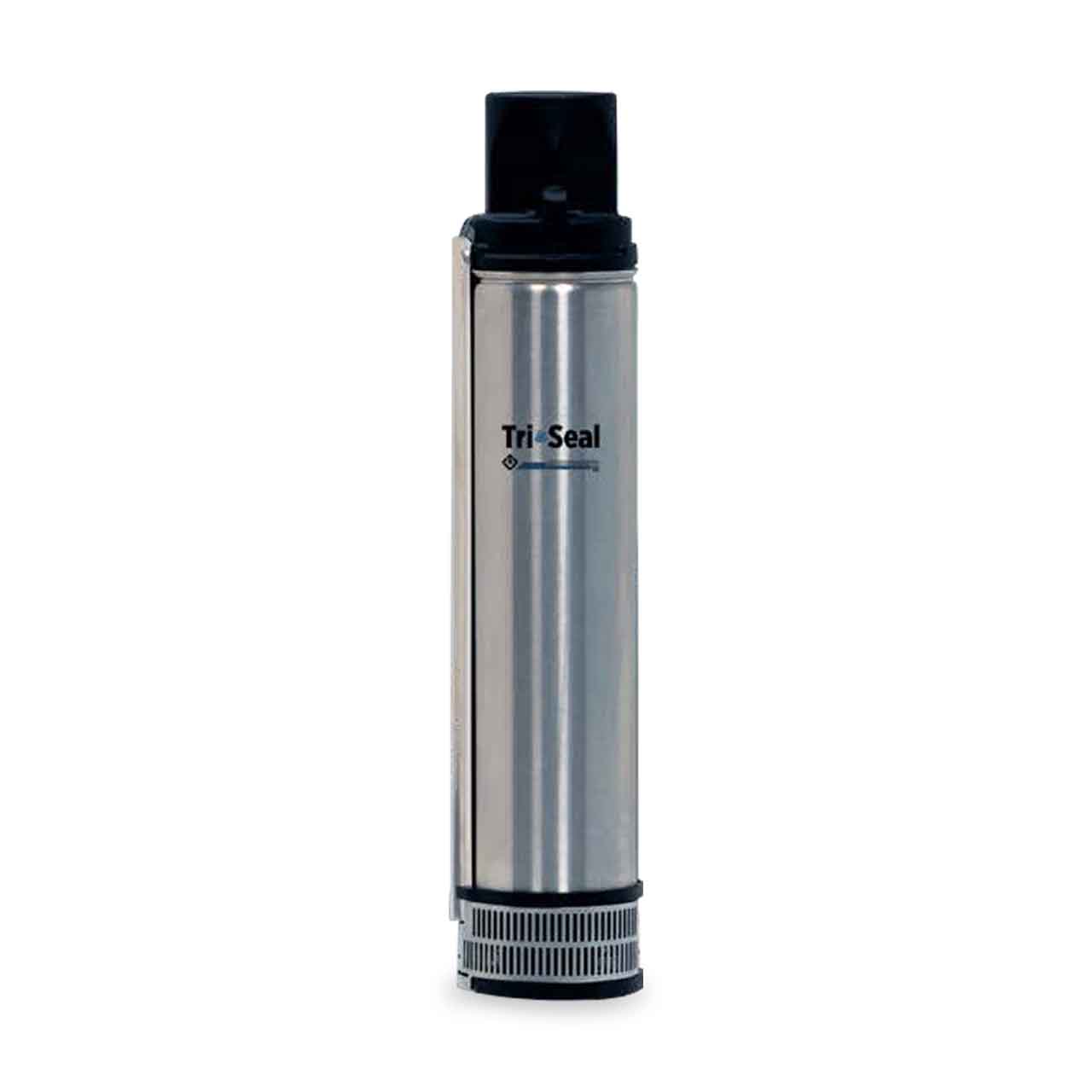

Franklin Electric SandHandler Tri-Seal Pump End
The Standard J-Class Sand Handler 4" submersible pump features the TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand). All J-Class Sand Handler pumps are unconditionally guaranteed against sand locking in abrasive well conditions for one full year.
Franklin Electric SandHandler Tri-Seal Pump Features
- 300 Series Stainless Steel Hub Floats with the Impeller Maintaining a Positive Seal.
- Phenolic Washer Provides Down-Thrust Protection.
- Acetal Impeller Provides High Efficiency Performance and Abrasion Resistance.
- Modified PPO Diffuser and Disc - Proven Abrasion Resistant Material.
- Floating Stage Design Allows Impeller to Float Independently.
- Removable, Spring-Loaded Check Valve.
- Maximum Water Temperature: 120°F / 49°C.
- Ceramic Shaft Sleeve and Rubber Discharge Bearing Protect Shaft and Eliminate Sand Wear.
- Powered by Franklin Electric Corrosion Resistant 4" Submersible Motor.
- Patented Impeller Hub Seal System Seals Radially and Axially to Prevent Fluid Recirculation, Providing High Performance in the Harshest Conditions.
Specifications
Specifications
Franklin Electric SandHandler Tri-Seal 15 GPM Well Pump End Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 15 GPM
- HORSEPOWER: 1.0 HP
- MAXIMUM CAPACITY: 21 GPM
- MAXIMUM HEAD: 350’
- STAGES: 9
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Thermoplastic
- BODY MATERIAL: 300 Series Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C
Franklin Electric SandHandler Tri-Seal 15 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SandHandler Tri-Seal Product Resources
Download Franklin Electric SandHandler Tri-Seal Brochure
Download Franklin Electric SandHandler Tri-Seal Catalog Pages
