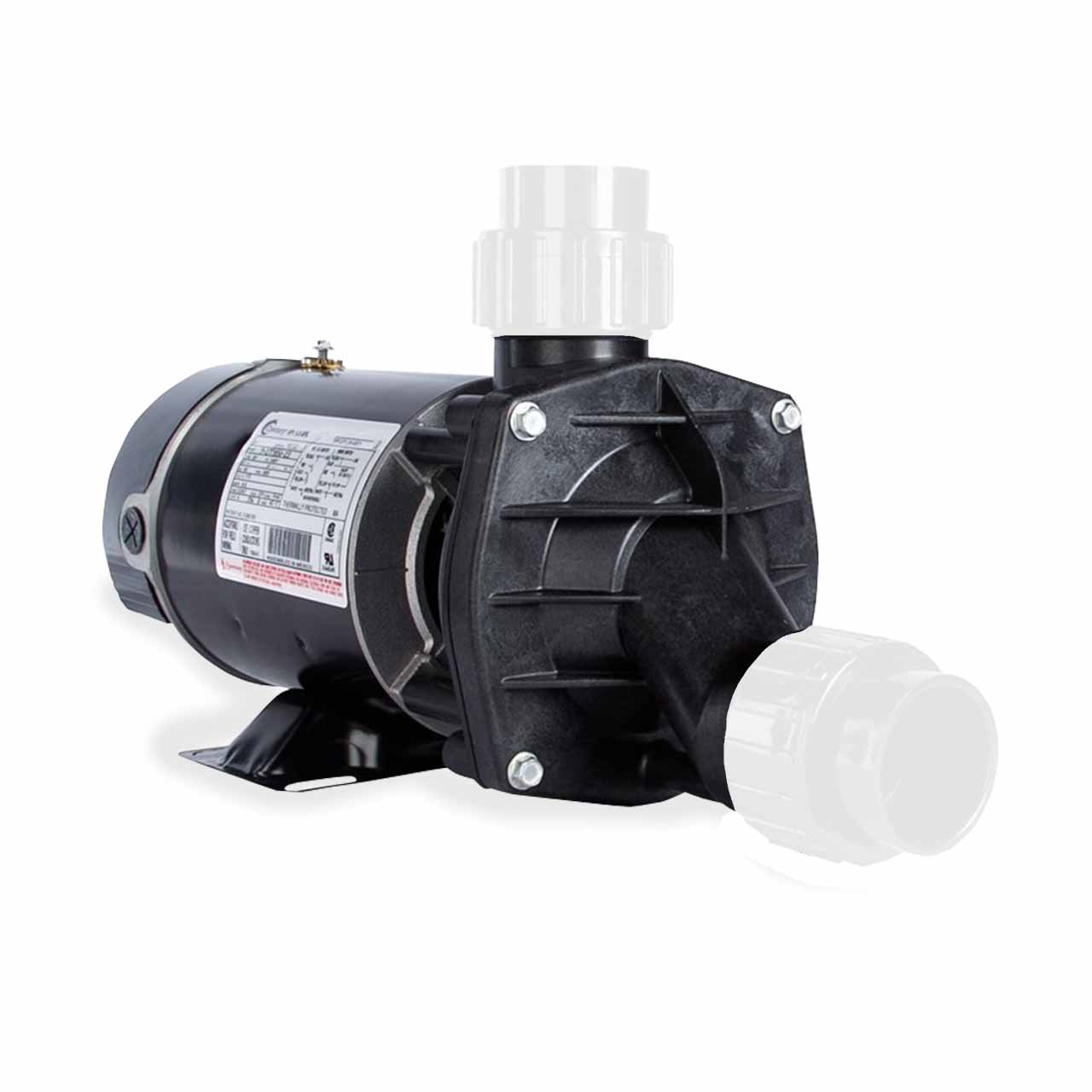

Franklin Electric S15JCM Non-Corrosive JCM Series Single Speed Transfer Pump 1.5 HP 115V
Franklin Electric S15JCM Non-Corrosive JCM Series Single Speed Transfer Pump 1.5 HP 115V
SKU : FEC94216587
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Transfer Pumps
Franklin Electric Non-Corrosive JCM Series Single Transfer Pumps
The JCM series allows you to drain the container completely with the lower suction level. Flooded suction centrifugal pump suitable for use with saltwater, chemical transfer, and other pumping applications that deal with corrosive substances.
Franklin Electric Non-Corrosive JCM Series Transfer Pump Features
- High-Tech, Non-Corrosive Plastic Construction and Stainless Steel for Components in Contact with Liquid
- Patented, Air-Cooled Heat Sink Allows Pump to run Dry or in Loss-of-Prime Conditions without Damage to the Shaft Seal
- Floating Eye Seal between the Closed Impeller and the Pump Case Maximizes Pump Efficiency for Best Flow and Pressure
- Phenolic/Ceramic Mechanical Shaft Seal with Nitrile Elastomers and 18-88SS Components
- Accepts a Standard 1-1/2" Union (ordered separately)
- UL and CSA Agency Listings Apply to Clean Water Applications Only
Specifications
Specifications
Franklin Electric Non-Corrosive JCM Series Transfer Pump Specifications
- BODY CONSTRUCTION: Plastic
- HORSEPOWER: 1.5 HP
- SHUT-OFF PRESSURE: up to 61'
- FLOW RATE: 78 GPM
- DISCHARGE: 1.5" MNPT
- SUCTION: 1.5"
- VOLTAGE: 115V
- FULL LOAD AMPS: 12.4
Franklin Electric Non-Corrosive JCM Series Transfer Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Non-Corrosive JCM Series Transfer Pump Resources
Franklin Electric Transfer Pump Product Pages
Franklin Electric Cast Iron JCM Series Transfer Pump Product Pages
Franklin Electric Non-Corrosive JCM Series Transfer Pump Owner's Manual
