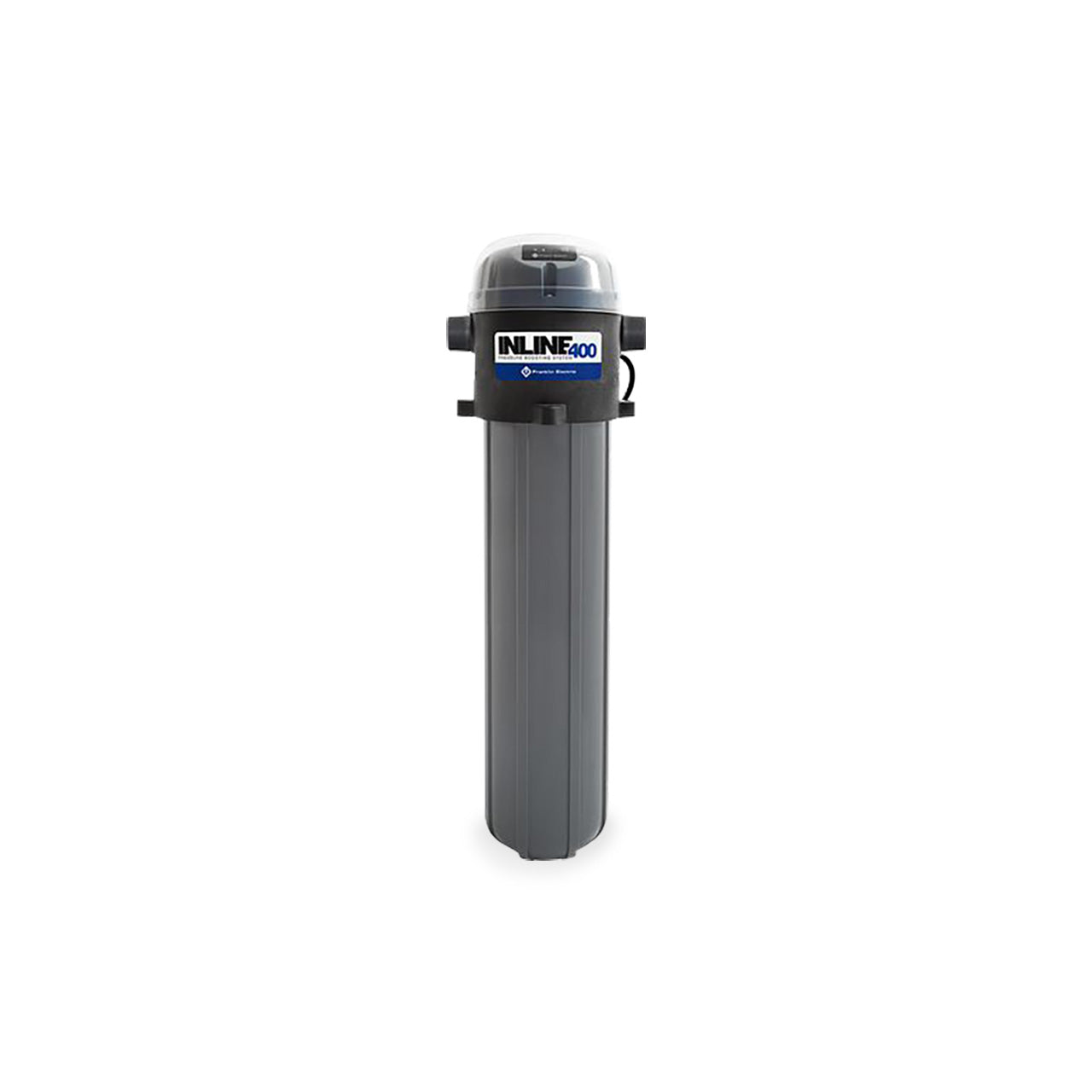

The Inline 400 booster is designed to be compact and an economical way to meet all of your pressure boosting needs. This inline pressure booster pump's symmetrical design allows for easy installation (mounting either vertically or horizontally) while also enabling it to work with your existing plumbing configuration.

Franklin Electric Inline 400 Pressure Booster Applications

• City Water Pressure Boosting
• Pressurize Water From Cistern Tank
• Re-Pressurizing After Filtration
• Irrigation System Boosting

Franklin Electric Inline 400 Pressure Booster Features

• Utilizes Proven Franklin Electric Pump and Motor to Create the Most Trustworthy Product on the Market
• Simple Flow-Based Controls Mean you get the Pressure Every Time you Need it
• Whisper-Quiet Operation
• Installs Vertically or Horizontally
• 1-1/4" NPT Inlet and Outlet
• 115V and 230V Models Available
• Plug-In Electrical Cord Connected Unit
• Protective Features: Over/Under Voltage Protection, Dry Run and Over Temperature
• Product Power Rating: 1/3 HP, 0.246 kW
• Maximum Water Temperature: 120°F / 49°C

Franklin Electric Inline 400 Pressure Booster Specifications

• DISCHARGE SIZE: 1-1/4" NPT
• INLET SIZE: 1-1/4" NPT
• MAXIMUM HEAD: 56'
• MAXIMUM CAPACITY: 20 GPM
• HORSEPOWER: 0.33 HP
• VOLTAGE: 1ø, 115V, 60Hz
• FULL LOAD AMPS: 6.6
