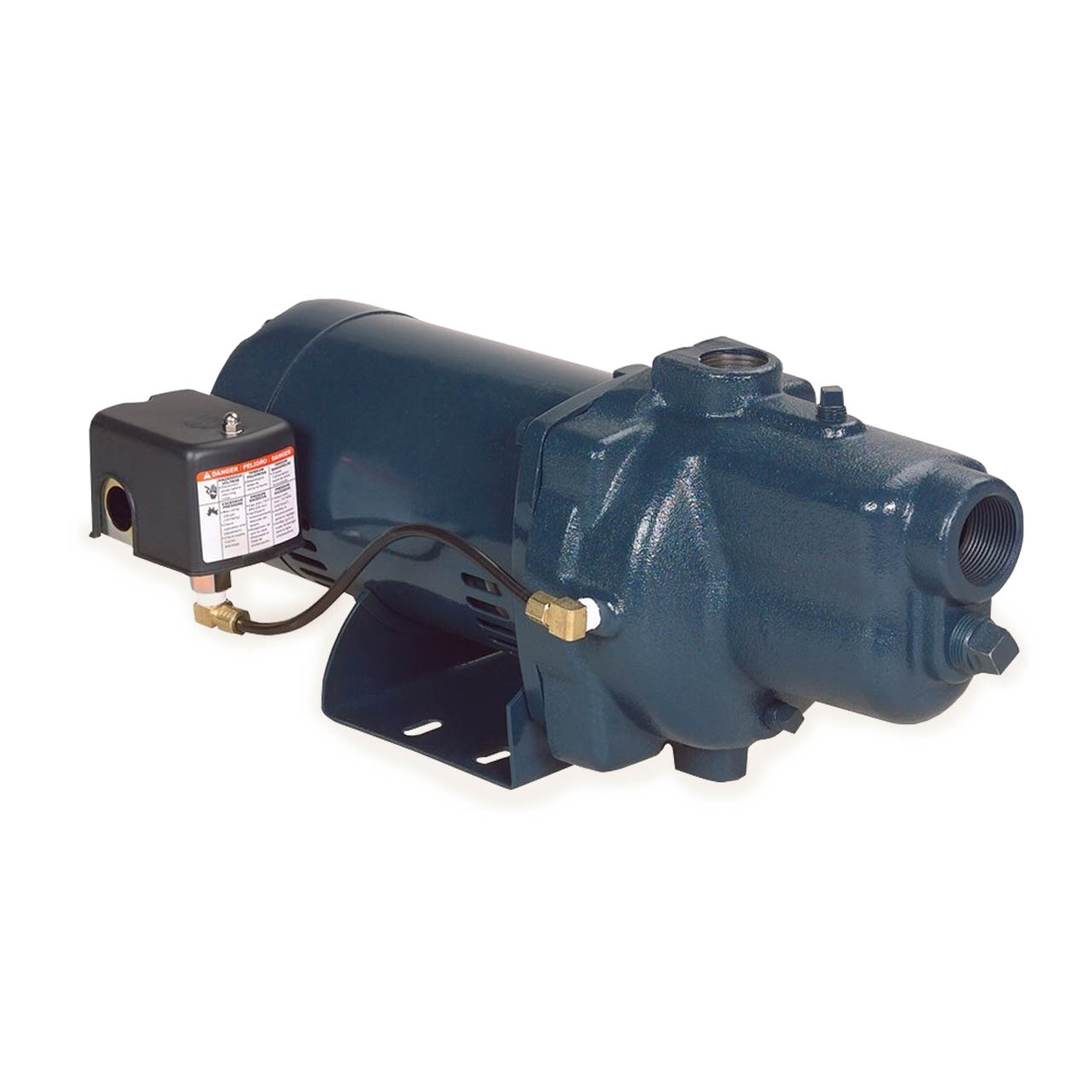

Franklin Electric FVJ1CI Shallow Well VersaJet Series Jet Pump 1.0 HP 115/230V 1PH
Franklin Electric FVJ1CI Shallow Well VersaJet Series Jet Pump 1.0 HP 115/230V 1PH
SKU : FEC91180010
In Stock Quantity:0
:
Brand
:
Regular price
$1,049.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Shallow Well VersaJet Series Jet Pump Description
Built for easy customization, this 1-HP Jet Pump covers a variety of performance needs. With our patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.
Franklin Electric Shallow Well VersaJet Series Jet Pump Features
- Revolutionary "Quick-Change" Jet Nozzle Replacement System Allows Easy Customization of the Pump; Performance can be Changed Quickly from a High Pressure to a High Flow Set-Up without Removing the Plumbing or Opening the Case
- Impeller (with stainless steel insert), Diffuser, Jet Nozzle and Venturi all Molded with Modified PPO, a Material that Increases Efficiency and Hydraulic Performance
- Phenolic/Ceramic Mechanical Shaft Seal with Nitrile Elastomers and 18-8SS Hardware Ensures Positive Sealing and longevity
- Heavy-Duty Cast Iron Case Includes Both Pressure and Drain Ports
- Floating Stainless Steel Eye Seal Provides Maximum Performance and Efficiency
- Powered by High Quality, Industry Proven, UL778 Approved, Indoor/Outdoor Square-Flange Single Phase Motors
- Pressure Switch Installed and Set at 30/50 PSI
- Water Temperatures up to 120 °F/49 °C; 75 PSI Maximum Working Pressure
- 1-1/4" NPT Inlet and 1.0" NPT Discharge - All Models
Specifications
Specifications
Franklin Electric FVJ1CI Specifications
- DISCHARGE SIZE: 1.0" NPT
- INLET SIZE: 1.25" NPT
- MAXIMUM CAPACITY: 71
- MAXIMUM HEAD: 25
- IMPELLER MATERIAL: Thermoplastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1.0
- VOLTAGE: 1ø, 115/230V
- MAXIMUM LIQUID TEMPERATURE: 120 °F/49 °C
- FULL LOAD AMPS: 14.8/7.4
Franklin Electric Shallow Well VersaJet Series Performance
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Shallow Well VersaJet Series Jet Pump Resources
Franklin Electric Jet Pump Product Pages
Franklin Electric VersaJet Series Jet Pump Product Brochure
