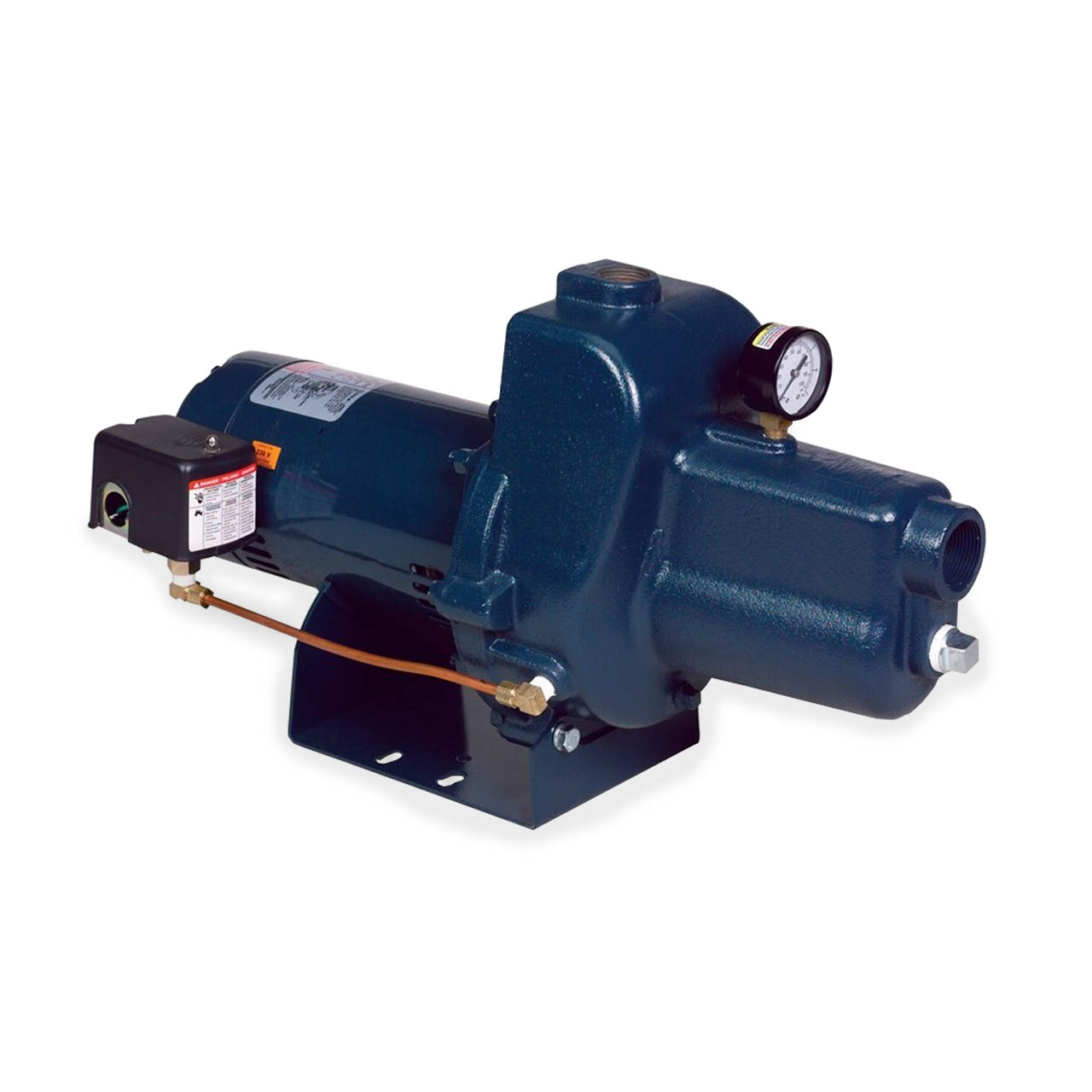

Franklin Electric FVJ07CI-P Shallow Well VersaJet Pro Series Jet Pump 0.75 HP 115/230V 1PH
Franklin Electric FVJ07CI-P Shallow Well VersaJet Pro Series Jet Pump 0.75 HP 115/230V 1PH
SKU : FEC91181007
In Stock Quantity:0
:
:
Brand
:
Regular price
$1,087.10 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Shallow Well VersaJet Pro Series Jet Pump Description
Built for easy customization, this 3/4-HP jet pump covers a variety of performance needs. With our patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.
Franklin Electric Shallow Well VersaJet Pro Series Jet Pump Features
- Impeller (with stainless steel insert), Diffuser, Jet Nozzle and Venturi all Molded with Modified PPO, a Material that Increases Efficiency and Hydraulic Performance
- Heavy-Duty Cast Iron Case Ensures Optimum Durability and Long Life
- Floating Stainless Steel Eye Seal Provides Maximum Performance and Efficiency
- Powered by High Quality, Industry Proven, UL778 Approved, Indoor/Outdoor Square-Flange Motors
- Revolutionary "Quick-Change" Jet Nozzle Replacement System Allows Easy Customization of the Pump; Performance can be Changed Quickly from a High Pressure to a High Flow Set-Up without Removing the Plumbing or Opening the Case
- Easily Adjustable Dual Voltage Motor can be Set to Run either 115V or 230V
- Professional Grade 30/50 Pressure Switch with Copper Hose is Adjustable in Both the Differential and the Range
- Built-In Drain Plug for Easy Winterizing and Servicing
- Handles Water Temperatures up to 120 °F/49 °C and Shut-Off Pressures up to 90 PSI
- 1.0" NPT Discharge, 1-1/4" NPT Suction
- UL 778 Certified for Indoor or Outdoor Use
Specifications
Specifications
Franklin Electric FVJ07CI-P Specifications
- DISCHARGE SIZE: 1.0" NPT
- INLET SIZE: 1.25" NPT
- MAXIMUM CAPACITY: 71
- MAXIMUM HEAD: 25
- IMPELLER MATERIAL: Cast Iron
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.75
- VOLTAGE: 1ø, 115/230V
- MAXIMUM LIQUID TEMPERATURE: 120°F/49 °C
- FULL LOAD AMPS: 14.8/7.4
Franklin Electric Shallow Well VersaJet Pro Series Performance
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Shallow Well VersaJet Pro Series Jet Pump Resources
Franklin Electric Jet Pump Product Pages
Franklin Electric Shallow Well VersaJet Pro Series Jet Pump Product Brochure
Franklin Electric Shallow Well VersaJet Pro Series Jet Pump Owner's Manual
