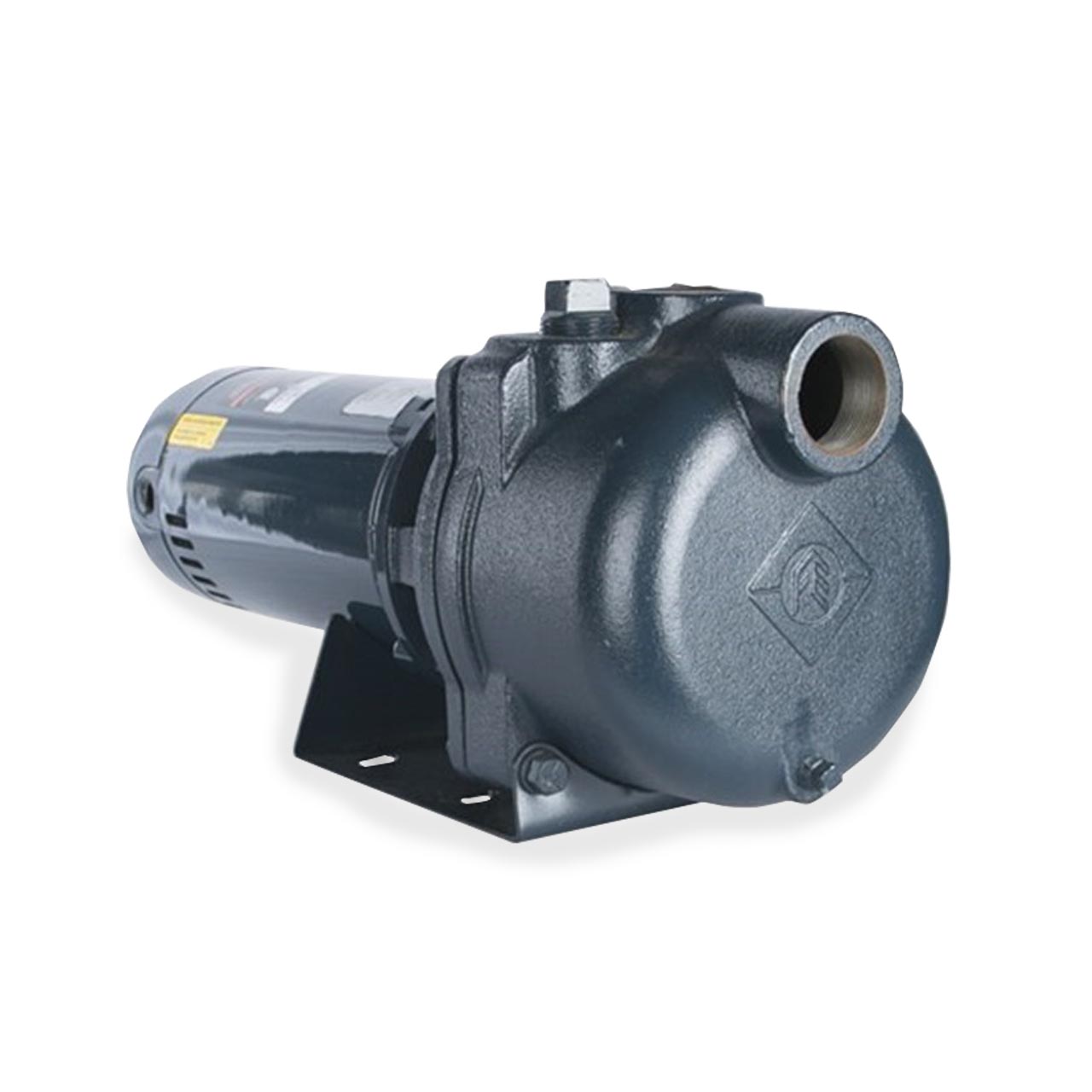

Franklin Electric FTB2CI-SSI Turf Boss Self Priming Pump 2.0 HP 230V 1PH
Franklin Electric FTB2CI-SSI Turf Boss Self Priming Pump 2.0 HP 230V 1PH
SKU : FEC92981020
In Stock Quantity:0
:
:
Brand
:
Regular price
$1,649.60 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Turf Boss Self Priming Pumps
The Turf Boss excels when used to supply water to a timer operated irrigation system, but the rugged, easily serviced pump can be used in other areas as well. Some of which are residential water transfer, commercial dewatering, rainwater drainage, light agricultural irrigation, sump drainage, and industrial liquid transfer. As a premium self-priming sprinkler pump, the Turf Boss is approved for indoor or outdoor operation through CSA and UL.
Whether it is a sprinkler system, a construction site, or a water transfer tank, when moving high volumes of water the Turf Boss guarantees the right amount of water right on time.
Franklin Electric Turf Boss Self Priming Pump Features
- Self-Priming Design, with the Ability to Lift Water from a Depth of 25 Feet.
- Easily Serviced Through a Back Pull-Out Design, Which Leaves the Plumbing and Both the Pump’s Base and Case Undisturbed in their Original Location.
- Rugged Pump Case Constructed with Heavy-Duty Cast Iron Ensures Optimum Durability, Quiet Operation and Long Life.
- Hydraulic Components Molded with Modified PPO Thermoplastic, when Coupled with the Floating Stainless Steel Impeller Eye-Seal, Ensures Dependable and Efficient Operation.
- Available with a 304 Stainless Steel Impeller for Maximum Durability.
- Industry Proven Indoor and Outdoor 56J Motors.
- Single-Phase: 1 and 1.5 HP Motors are Dual Voltage, Set to Run with Either 115 or 230V Incoming Power (2 HP is 230V only).
- Available in all Horsepower's with a Three-Phase Motor.
- Mechanical Shaft Seal Allows Positive Protection Against Leaking.
- Built-In Drain Plug for Easy Winterizing and Servicing.
- Shut-Off Pressures up to 130 Feet, and Flow Rates to 70 GPM.
- Handles Water Temperatures up to 120°F.
- Integrated 1-inch NPT Priming Plug.
- 1.5-inch NPT Suction, 1.5-inch NPT Discharge.
Franklin Electric Turf Boss Self Priming Pump Applications
- Irrigation
- Construction
- Commercial
- Municipal
- Light Industrial
- Residential
- Water Transfer
Specifications
Specifications
Franklin Electric FTB2CI-SSI Self Priming Pump Specifications
- DISCHARGE SIZE: 1.5" NPT
- INLET SIZE: 1.5" NPT
- MAXIMUM CAPACITY: 78 GPM
- MAXIMUM HEAD: 130'
- IMPELLER MATERIAL: Stainless Steel
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 2.0
- MOTOR TYPE: 56J Frame
- VOLTAGE: 1ø, 230V
- MAXIMUM LIQUID TEMPERATURE: 120°F
Franklin Electric Turf Boss Self Priming Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Turf Boss Self Priming Transfer Pump Resources
Franklin Electric Self Priming Pump Product Pages
Franklin Electric Turf Boss Self Priming Pump Product Brochure
Franklin Electric Turf Boss Self Priming Pump Owner's Manual
