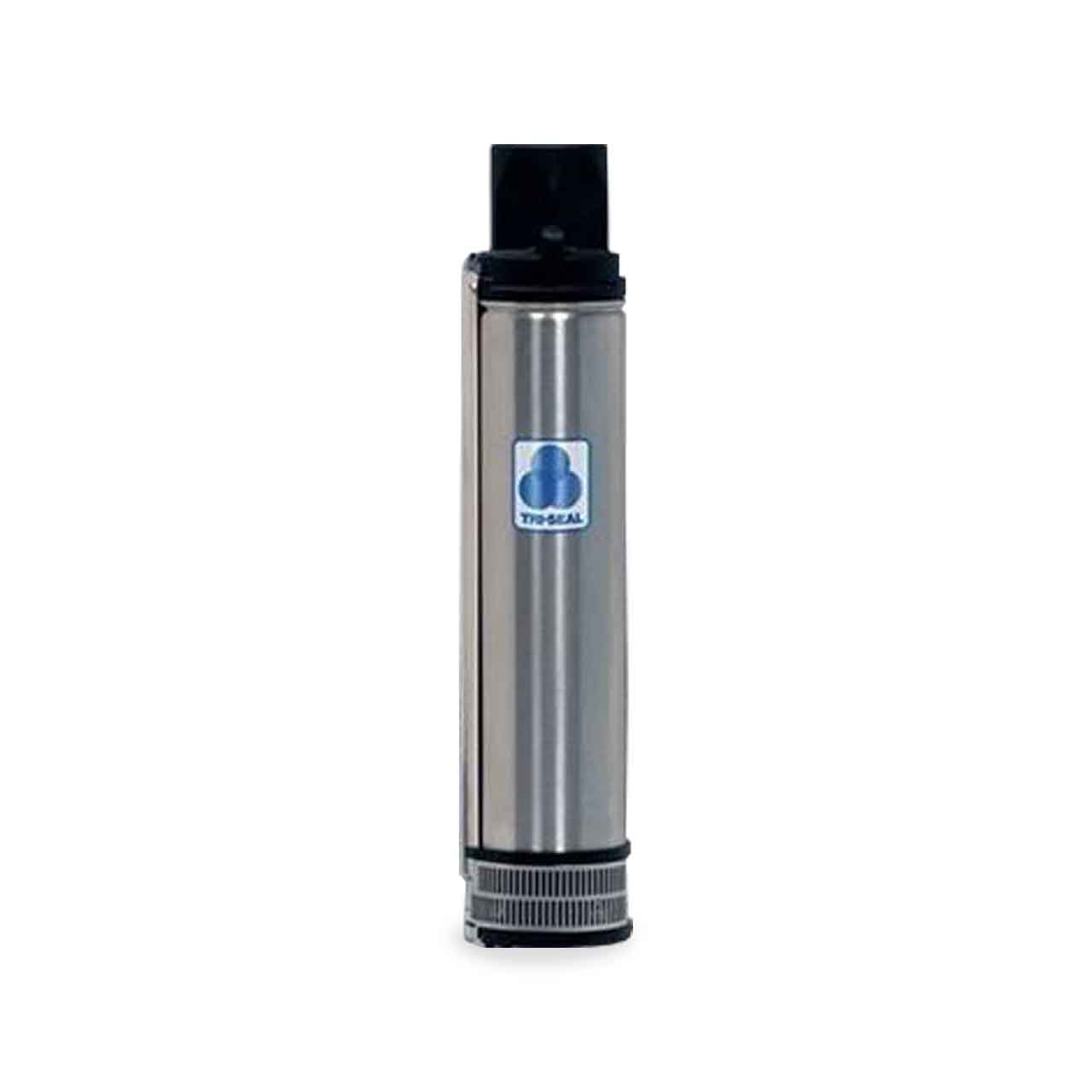

Franklin Electric FPS 4400 Tri-Seal 5FA1P4-PE Submersible Well Pump End Only 5 GPM 1.0 HP
Franklin Electric FPS 4400 Tri-Seal 5FA1P4-PE Submersible Well Pump End Only 5 GPM 1.0 HP
SKU : FEC93790515
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See Replacement: Franklin Electric 3200 Series 5FR1P4-PE Submersible Pump End Only 5 GPM 1.0 HP
Franklin Electric 4400 Tri-Seal
The Standard J-Class Tri-Seal 4-inch submersible pump features the new TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand). All J-Class Tri-Seal pumps are unconditionally guaranteed against sand locking in abrasive conditions for one full year.
Franklin Electric 4400 Tri-Seal Features
- 300 series stainless steel hub floats with the impeller maintaining a positive seal
- Phenolic washer provides down-thrust protection
- Acetal impeller provides high efficiency performance and abrasion resistance.
- Modified PPO diffuser and disc - proven abrasion resistant material.
- Floating stage design allows impeller to float independently
- Removable, spring-loaded check valve
- Maximum water temperature: 120 °F / 49 °C
- Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear
- Powered by Franklin Electric corrosion resistant 4" submersible motor
- Patented impeller hub seal system seals radially and axially to prevent fluid recirculation. Providing high performance in the harshest conditions.
*Celcon® is a registered trademark of The Celanese Corporation
*Noryl® is a registered trademark of G.E.
Specifications
Specifications
Franklin Electric 4400 Tri-Seal 5 GPM Well Pump End Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 5 GPM
- HORSEPOWER: 1.0 HP
- MAXIMUM CAPACITY: 8 GPM
- MAXIMUM HEAD: 600’
- STAGES: 15
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Thermoplastic
- BODY MATERIAL: 300 Series Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C
Franklin Electric 4400 Tri-Seal 5 GPM Well Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric 4400 Tri-Seal Product Resources
Download Franklin Electric 4400 Tri-Seal Brochure
