Franklin Electric FPS 4400 Tri-Seal 20FA05S4-2W115 Submersible Well Pump & Motor 20 GPM 0.5 HP 115 1 PH 2-Wire
Franklin Electric FPS 4400 Tri-Seal 20FA05S4-2W115 Submersible Well Pump & Motor 20 GPM 0.5 HP 115 1 PH 2-Wire
SKU : FEC93812005
In Stock Quantity:0
:
:
Brand
:
Regular price
$1,976.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

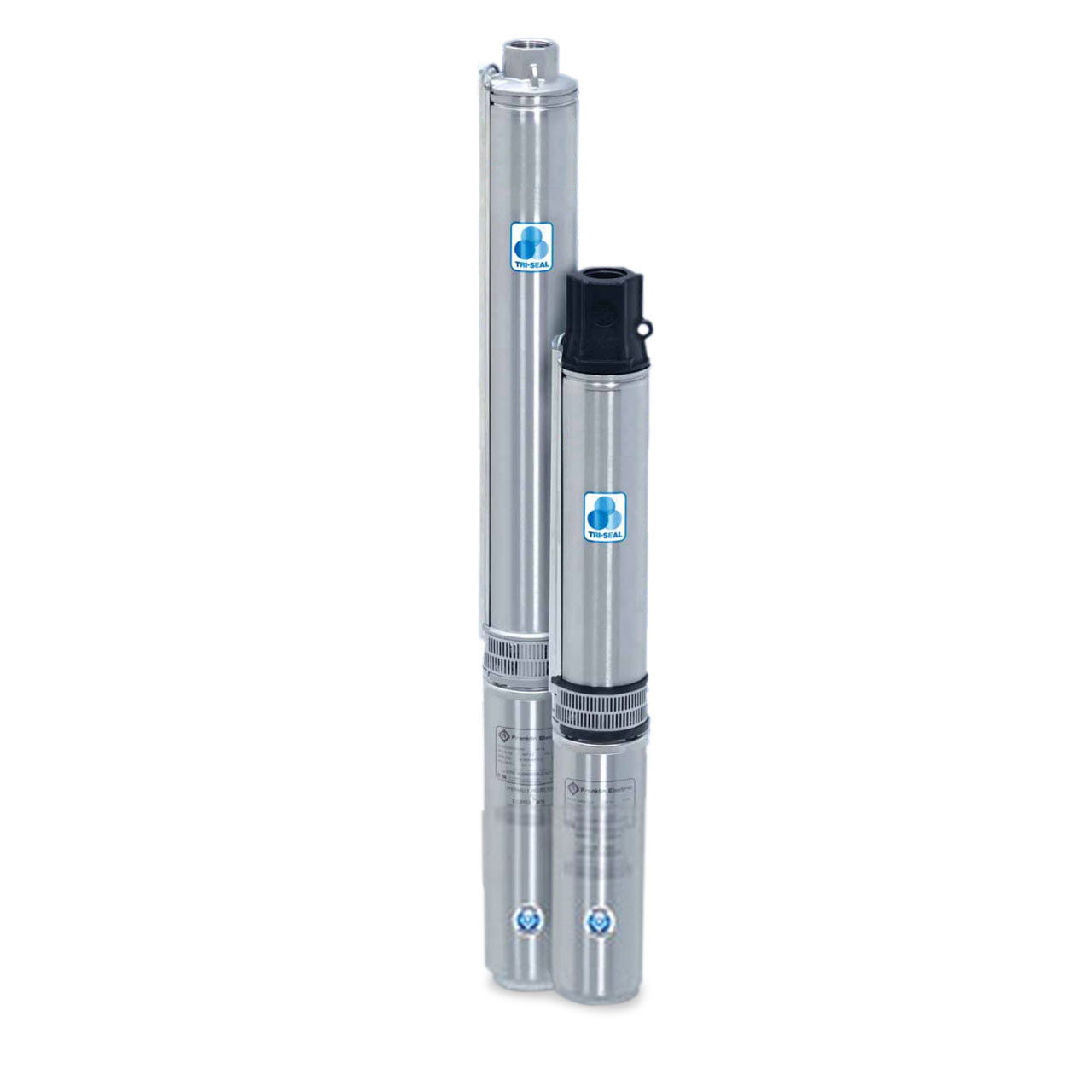

Franklin Electric FPS 4400 Tri-Seal Submersible Pump
The standard FPS 4400 4-inch submersible pump features the new TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand).
Franklin Electric FPS 4400 Tri-Seal Submersible Pump Features
- 300 Series Stainless Steel Hub Floats with the Impeller Maintaining a Positive Seal
- Phenolic Washer Provides Down-Thrust Protection
- Acetal Impeller Provides High Efficiency Performance and Abrasion Resistance
- Modified PPO Diffuser and Disc - Proven Abrasion Resistant Material
- Floating Stage Design Allows Impeller to Float Independently
- Removable, Spring-Loaded Check Valve
- Maximum Water Temperature: 120°F / 49°C
- Ceramic Shaft Sleeve and Rubber Discharge Bearing Protect Shaft and Eliminate Sand Wear
- Powered by Franklin Electric Corrosion-Resistant Super Stainless 4" Submersible Motors
- Patented Impeller Hub Seal System Seals Radially and Axially to Prevent Fluid Recirculation, Providing High Performance in the Harshest Conditions.
Specifications
Specifications
Franklin Electric 4400 Tri-Seal 20FA05S4-2W115 Submersible Pump Specifications
- Water Well Motors
- BODY CONSTRUCTION: Stainless Steel
- HORSEPOWER: 0.5 HP
- VOLTAGE: 1ø, 115V
- RPM: 3450
- MAX AMBIENT TEMPERATURE: 120°F/49°C
- LEAD: 2-wire Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 20 GPM
- HORSEPOWER: 0.5 HP
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Acetal
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Franklin Electric 4400 Tri-Seal 20 GPM Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric FPS 4400 Tri-Seal Submersible Pump Product Resources
Download Franklin Electric FPS 4400 Tri-Seal Submersible Pump Brochure
Download Franklin Electric FPS 4400 Tri-Seal Submersible Pump Catalog Pages
