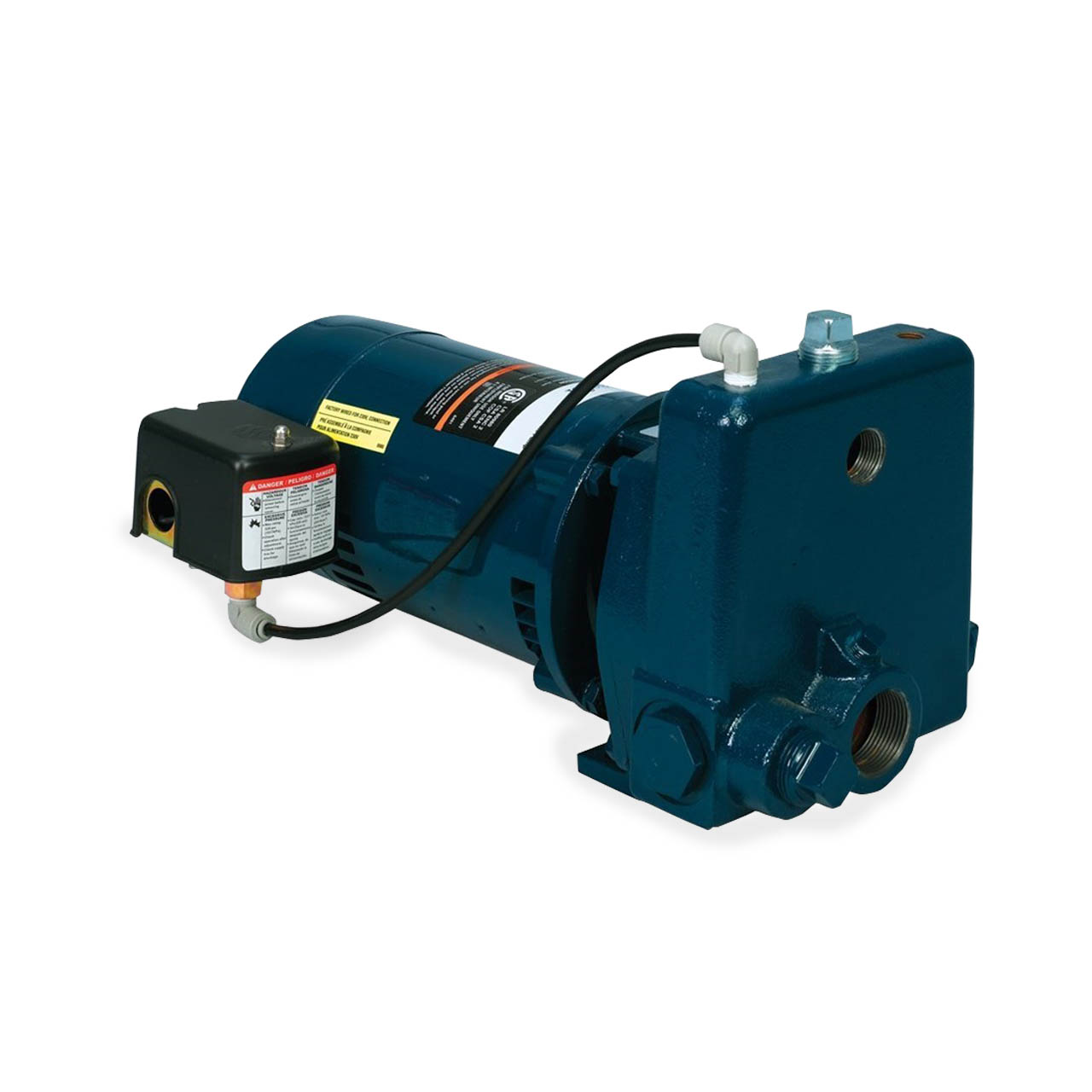

The C Series 3/4-hp convertible jet pump is equipped with a stainless steel impeller for high performance and longevity. The C Series delivers up to 16 gallons per minute from either shallow well or deep well installations.

Franklin Electric C Series Convertible Jet Pump Features

• Heavy-Duty Cast Iron Construction for Long Life
• Stainless Steel Impeller for High Performance
• Thermoplastic Diffuser is Molded for Efficiency and Dependability
• Screw-In Injector for Easy Conversion from Shallow to Deep Well Installation
• Motor with Stainless Steel Shaft for Direct Mounting of Impeller
• Mechanical Shaft Seal Ensures Leakproof Fit and Continuous Lubrication
• Factory Assembled as Shallow Well Unit
• Hardware Kit Allows for Versatility of Installation. Includes Pressure Gauge and Plugs
• Deep Well Injector Kits Must be Ordered Separately
• Standard 30-50 PSI Pressure Switch
• Connections: 1-1/4" FNPT Suction / 3/4" FNPT Discharge / 1" FNPT Drive Line

Franklin Electric FE07CI-C Jet Pump Specifications

• DISCHARGE SIZE: 1.25"
• INLET SIZE: 1.0"
• MAXIMUM CAPACITY: 61
• MAXIMUM HEAD: 25
• IMPELLER MATERIAL: Stainless Steel
• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.75 HP
• MOTOR TYPE: 56J Frame
• VOLTAGE: 115/230V
• MAXIMUM LIQUID TEMPERATURE: 140°F/60°C

Franklin Electric C Series Convertible Jet Pump Performance

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric Jet Pump Product Pages

Franklin Electric C Series Convertible Jet Pump Product Brochure

Franklin Electric C Series Convertible Jet Pump Owner's Manual

Franklin Electric C Series Convertible Jet Pump Replacement Parts
