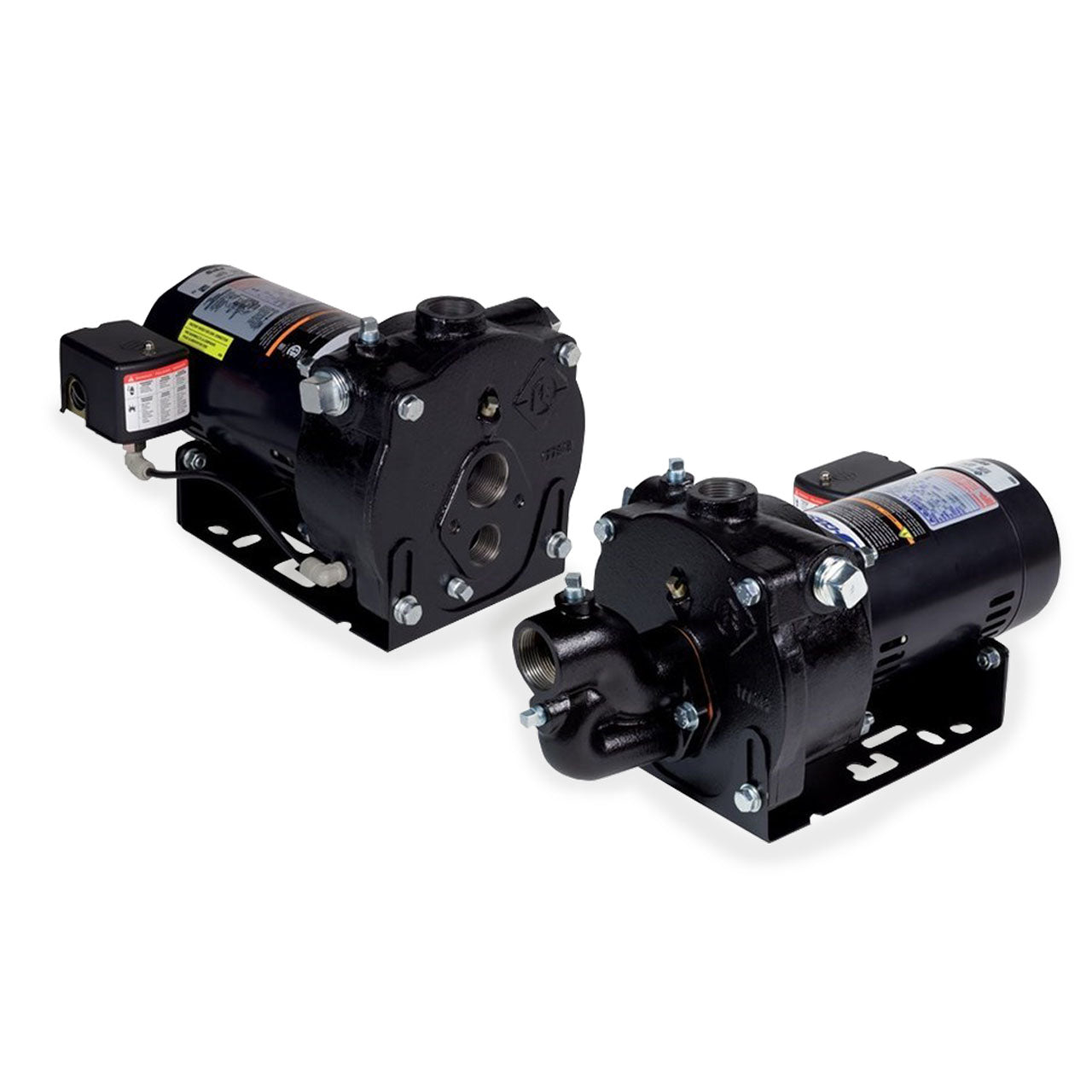

Franklin Electric FCVJ05CI-P-DW Convertible VersaJet Pro Deep Well Pump 0.5 HP 115/230V 1 Phase
Franklin Electric FCVJ05CI-P-DW Convertible VersaJet Pro Deep Well Pump 0.5 HP 115/230V 1 Phase
SKU : FEC96131005DW
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Jet Pumps
Franklin Electric Convertible VersaJet Pro Pumps
Although no single pump can meet all applications, the Convertible VersaJet from Franklin Electric comes close. Each model can be configured with a variety of pressure and flow choices in both shallow and deep set installations. In addition, four different suction flange options make this pump the contractor's choice for those tough replacement jobs.
Franklin Electric Convertible VersaJet Pro Pump Features
- Heavy-Duty Cast Iron Pump Case Includes (3) 1" Discharge/Pressure Ports for Optimum Installation Flexibility, Plus a 1/4" NPT Port for Pressure Gauge Mounting.
- Each Rating is Available with One of (5) Factory Mounted Suction Flanges to Enable the Pump to Replace a Deep Well Pump Unit Installed in the Field without Altering the Existing Suction and Pressure Pipe Connections; Includes Vacuum Port for AVC Connection.
- Adjustable Height Pump Base Further Enables Matching the Pump to Existing Plumbing.
- Thermoplastic Impeller and Diffuser are Precision Molded for High Efficiency and Dependability.
- Phenolic/Ceramic Mechanical Shaft Seal with Nitrile Elastomers and 18-8SS Hardware Ensures Positive Sealing Longevity.
- Adjustable Pressure Switch is Factory Set at 30/50 PSI.
- Water Temperature up 120°F/49°C; 75 PSI Maximum Working Pressure.
- Powered by High Quality, Industry Proven, UL778 Approved, Indoor/Outdoor Square Flange Motors.
Specifications
Specifications
Franklin Electric Convertible VersaJet Pro Pump Specifications
- DISCHARGE SIZE: 1.0" FNPT
- INLET SIZE: 1.25" FNPT
- MAXIMUM CAPACITY: 97
- MAXIMUM HEAD: 90
- IMPELLER MATERIAL: Thermoplastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.5
- VOLTAGE: 115/230V
- MAXIMUM LIQUID TEMPERATURE: 120 °F/49 °C
Franklin Electric Convertible VersaJet Pro Pump Performance
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Convertible VersaJet Pro Pump Resources
Franklin Electric Convertible VersaJet Pro Pump Product Brochure
Franklin Electric Convertible VersaJet Injector Kit
Franklin Electric Convertible VersaJet Suction Flange Kit
Franklin Electric Convertible VersaJet Pro Pump Owner's Manual
