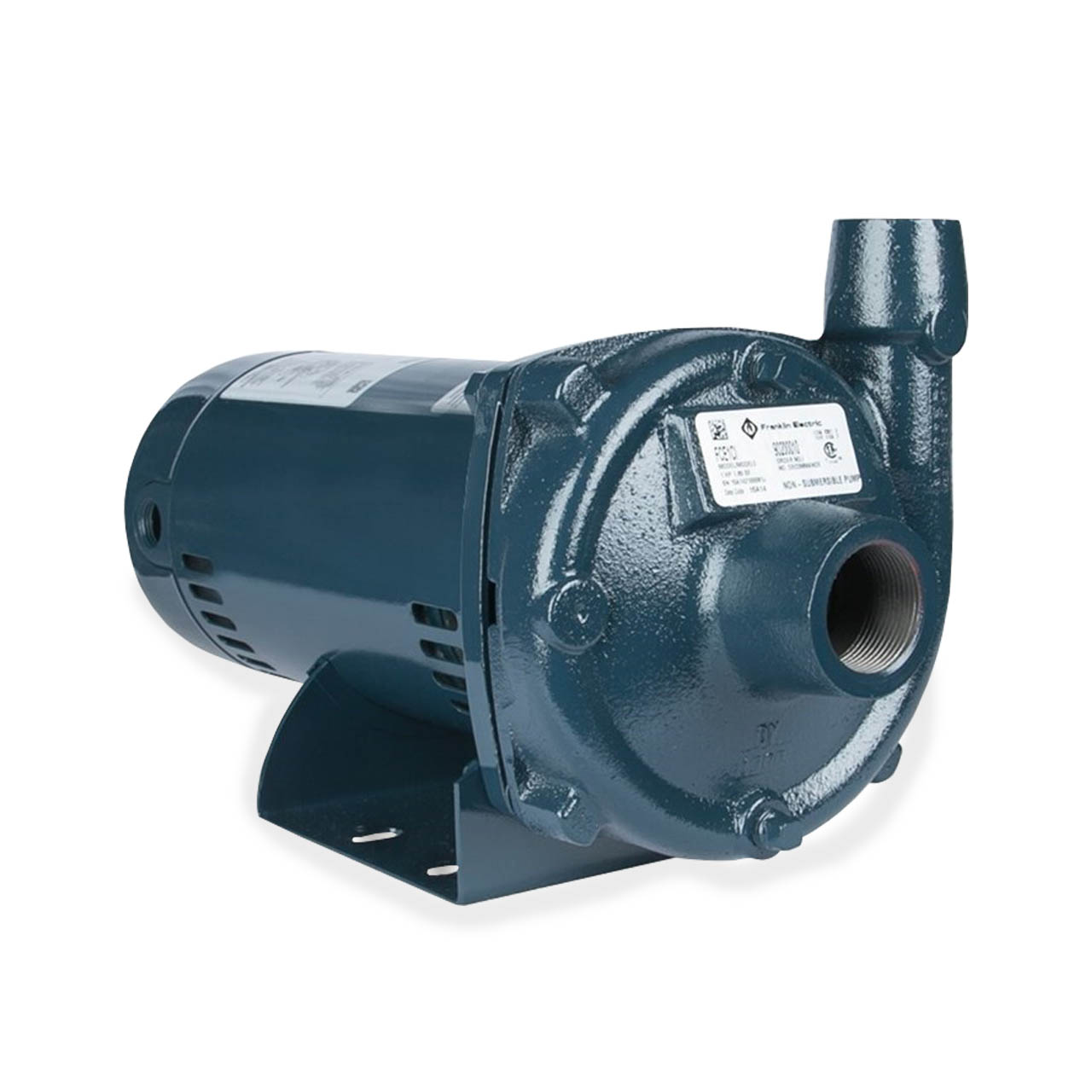

Franklin Electric FCE15CI FCE Series Transfer Pump 1.5 HP 115/230V 1PH
Franklin Electric FCE15CI FCE Series Transfer Pump 1.5 HP 115/230V 1PH
SKU : FEC90200015X
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See Replacement: Franklin Electric DR2S15-CS DR Series Transfer Pump 1.5 HP 230V 1PH
Franklin Electric Cast Iron FCE Series Transfer Pumps
Versatility is the name of the game on the FCE series pumping up to 125 feet and 85 gpm. The 3-way volute rotates every 90 degrees simplifying installation and can be mounted vertically or horizontally.
Franklin Electric Cast Iron FCE Series Transfer Pump Features
- Cast Iron Volute and Seal Plate
- Volute can be Rotated in 90° Increments for Ease of Installation
- Modified PPO Impeller with Stainless Steel Hub for Optimum Efficiency and Performance
- Phenolic/Ceramic Mechanical Shaft Seal with Nitrile Elastomers and 18-8SS Compenents
- Powered by High Quality, Industry Proven, UL778 Approved, Indoor/Outdoor Square-Flange Motors; 2-Compartment Design for Ease of Service
- Back Pull-Out Design; Access to Pump Parts without Disturbing the Plumbing
- Can be Mounted in a Vertical or Horizontal Position
- Maximum Fluid Temperature of 160°F/71°C; Maximum Working Pressure 75 PSI
Specifications
Specifications
Franklin Electric Cast Iron FCE Series Transfer Pump Specifications
- DISCHARGE SIZE: 1.0" FNPT
- INLET SIZE: 1.25" FNPT
- MAXIMUM CAPACITY: 65 GPM
- MAXIMUM HEAD: 115'
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1.5
- VOLTAGE: 1ø, 115/230V
- MAXIMUM LIQUID TEMPERATURE: 160°F/71°C
Franklin Electric Cast Iron FCE Series Transfer Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Cast Iron FCE Series Transfer Pump Resources
Franklin Electric Transfer Pump Product Pages
Franklin Electric Cast Iron FCE Series Transfer Pump Product Pages
Franklin Electric Cast Iron FCE Series Transfer Pump Owner's Manual
