Discontinued - Pump Starters

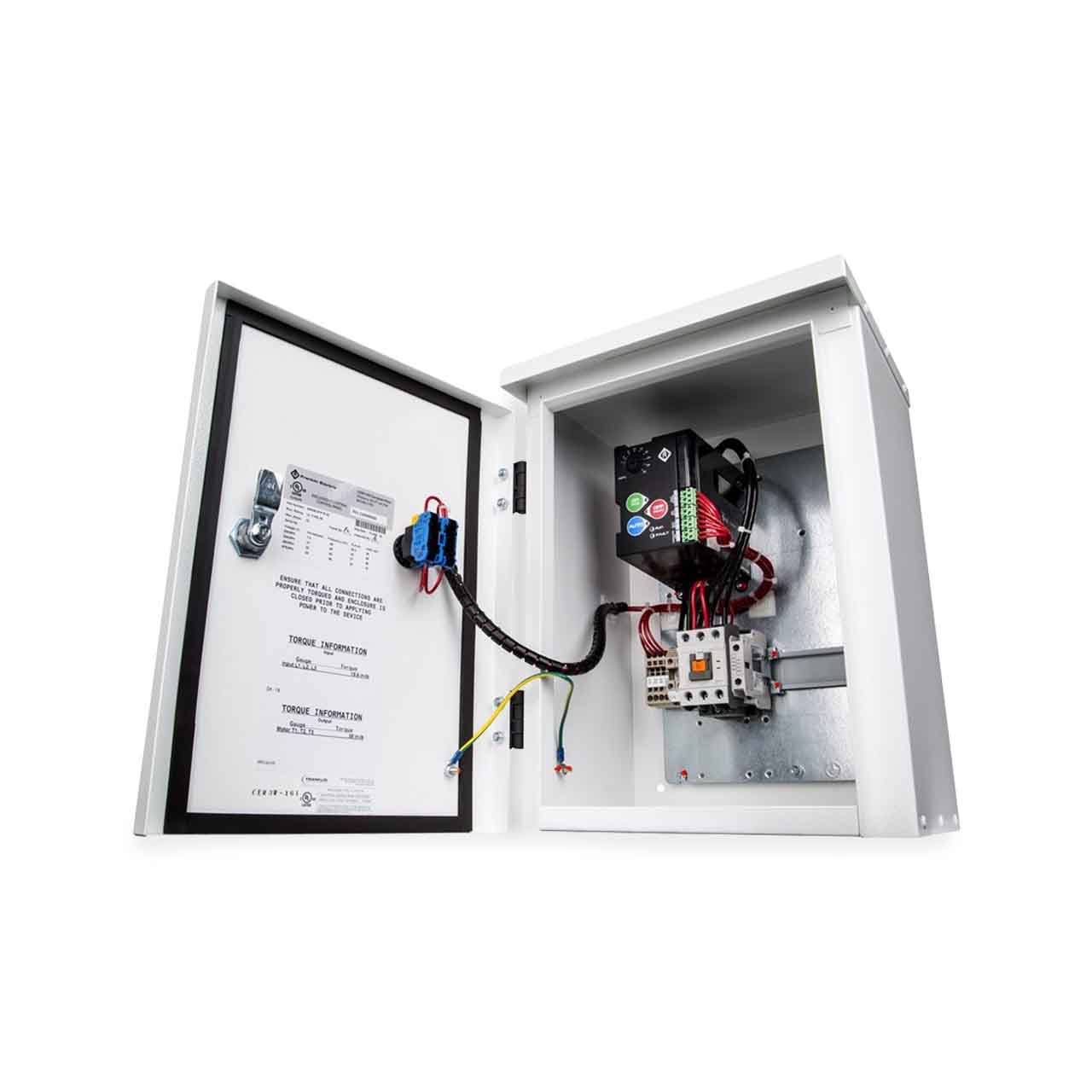

The enhanced Franklin Electric Economy Pump Starter (EPS) provides a simple and dependable starting option with a wide electronic overload range that meets submersible standards for overload protection. Offered exclusively through water systems distributors for agricultural and industrial applications, the EPS accepts 200-600 VAC while covering submersible systems between five and 20 horsepower at 200V, five and 25 horsepower at 230V, and five and 50 horsepower at 480V in just three models. It is available with a NEMA 3R enclosure for indoor and outdoor use or a cost-effective NEMA 1 enclosure with a smaller footprint for better installation flexibility. Internally, the EPS features a circuit breaker with easy-to-replace components to eliminate the need to replace burnt fuses. It has a true plug-and-play design that is compatible with single- and three-phase products, is CSA and UL approved, and includes a dry contact auto-run input and fault relay output.

Franklin Electric EPS - Economy Standard Pump Starter Features

• Integrated Electronic Overload Protection
• Class S Electronic Overload Protection Specifically Designed for Submersible Motors
• Phase Loss Protection
• Multi-Voltage Operating Range with Automation I/O
• Accepts 200-600 VAC Directly with no Adjustments, True Plug and Play
• Control I/O Includes a Dry Contact Auto-Run Input and Fault Relay Output
• Industrial Grade Construction
• High Reliability
• Door Mounted, Heavy-Duty HOA Switch
• NEMA 1, 3R, 4 and 4X Enclosure Options; 3R Enclosed EPS have a Service Entrance Rated Circuit Breaker Disconnect Option
• NEMA/IEC Rated Contactors that will Survive up to 2.5 Million Electrical Cycles
• Thoroughly Tested and Designed to Run on Multiple Power Sources - Power Line, Generators, Phase Converters
• Factory Installed Options Available
• Surge Suppressors
• Control Power Transformer
• Fault and Run Pilot Lights
• Keyed HOA Switch
• Float Switch Control Terminals

Franklin Electric EPS - Economy Standard Pump Starter Specifications

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric EPS - Economy Pump Starter Specification Sheet

Franklin Electric Economy Pump Starter N1 QuickStart Manual

Franklin Electric Economy Pump Starter N3R QuickStart Manual
