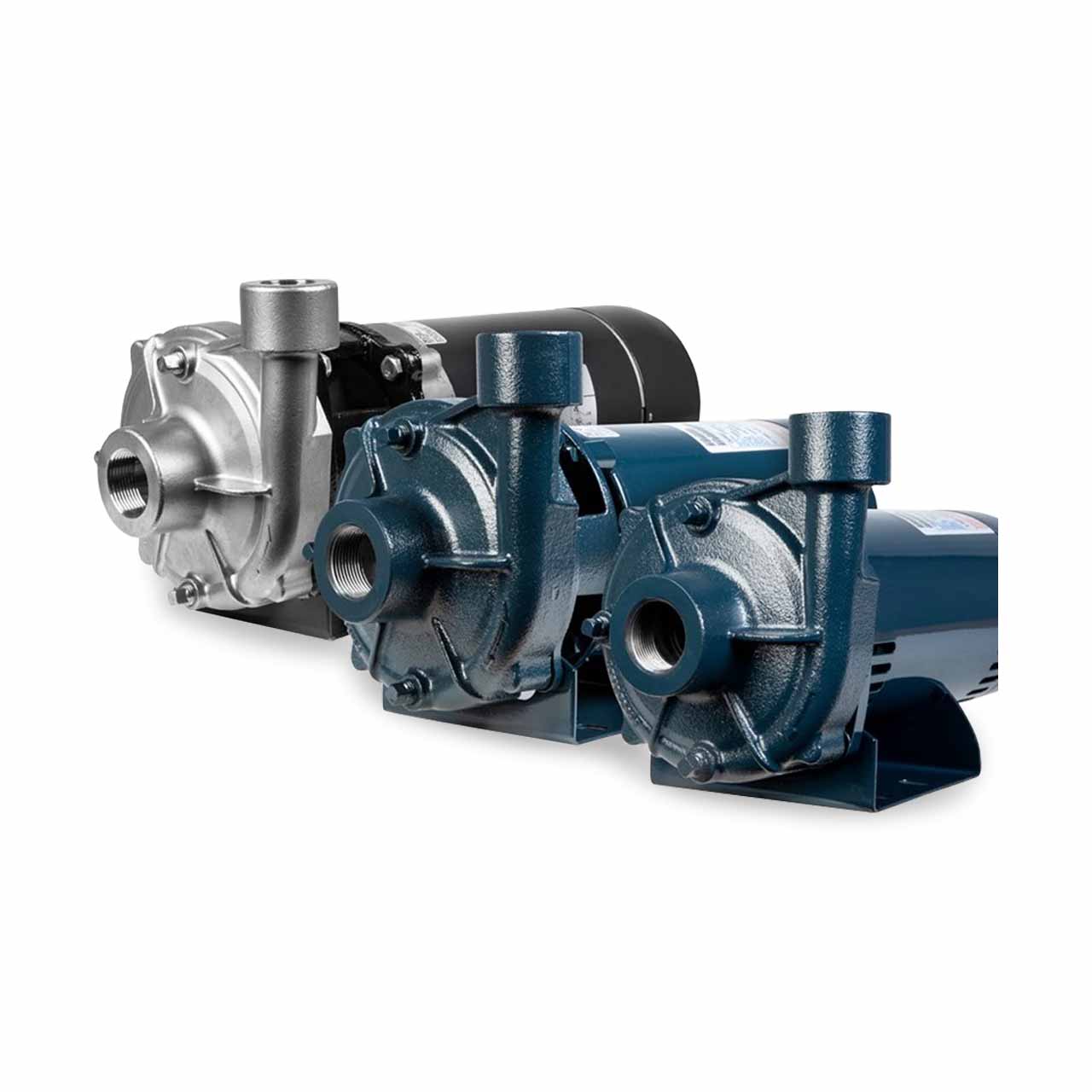

Franklin Electric DR1S07-CP-T DR Series Close-Coupled Centrifugal Pump 0.75 HP 230/460V 3PH
Franklin Electric DR1S07-CP-T DR Series Close-Coupled Centrifugal Pump 0.75 HP 230/460V 3PH
SKU : FEC97113007
In Stock Quantity:0
:
Brand
:
Regular price
$1,200.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric DR Series Close-Coupled Centrifugal Pumps Descriptions
The robust DR1-DR2 Series close-coupled centrifugal pumps are available in a variety of pump construction materials to enable handling a wide array of applications. Square Flange, 56J threaded and 56C keyed shaft motor driven units are available , as well as pump end kits for those customers who choose to provide their own 56J or 56C motors to pair with our close-coupled centrifugal pump.
Franklin Electric DR Series Close-Coupled Centrifugal Pumps Applications
- Water Circulation
- Booster Service
- Liquid Transfer
- Spraying Systems
- Jockey Pump Service
- General Purpose Pumping
Franklin Electric DR Series Close-Coupled Centrifugal Pump Features
- Back Pull-Out Design Provides Access to Internal Parts without Disturbing the Plumbing
- Robust Cast Iron Volute Standard; Stainless Steel Alternated Available for DR1 Series
- Volute Discharge can be Rotated in 90°Increments with Top Vertical Standard from the Factory
- Multiple 1/4" NPT Drain/Pressure Ports Enable Winterizing no Matter the Volute Orientation
- Enclosed Impeller Design for Increased Efficiencies; Thermoplastic and Stainless Steel Options
- Multiple Mechanical Seal Construction Materials to Accommodate Handling Various Fluids
- Every Pump Unit Factory Wet Tested to Insure Customer Satisfaction
- Suitable for Horizontal or Vertical (motor end up) Installation
- NEMA Standard Motor Options Include:
- Pump End Kits Available for 56C & 56J Motor Construction
- Rotation: Right Hand; Clockwise when Viewed from Motor End
- Maximize Fluid Handling Temperature 180°F (82°C)
Specifications
Specifications
Franklin Electric DR1S07-CP-T Close-Coupled Centrifugal Pump Specifications
- DISCHARGE SIZE: 1.0" NPT
- INLET SIZE: 1-1/4" NPT
- MAXIMUM CAPACITY: 70 GPM
- MAXIMUM HEAD: 100'
- IMPELLER MATERIAL: Plastic
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.75 HP
- MOTOR TYPE: ODP Enclosure
- VOLTAGE: 3ø, 230/460V
- MAXIMUM LIQUID TEMPERATURE:180°F (82°C)
Franklin Electric DR Series Close-Coupled Centrifugal Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric DR Series Close-Coupled Centrifugal Pump Resources
Franklin Electric DR Series Close-Coupled Centrifugal Pump Product Pages
Franklin Electric DR Series Close-Coupled Centrifugal Pump Owner's Manual
