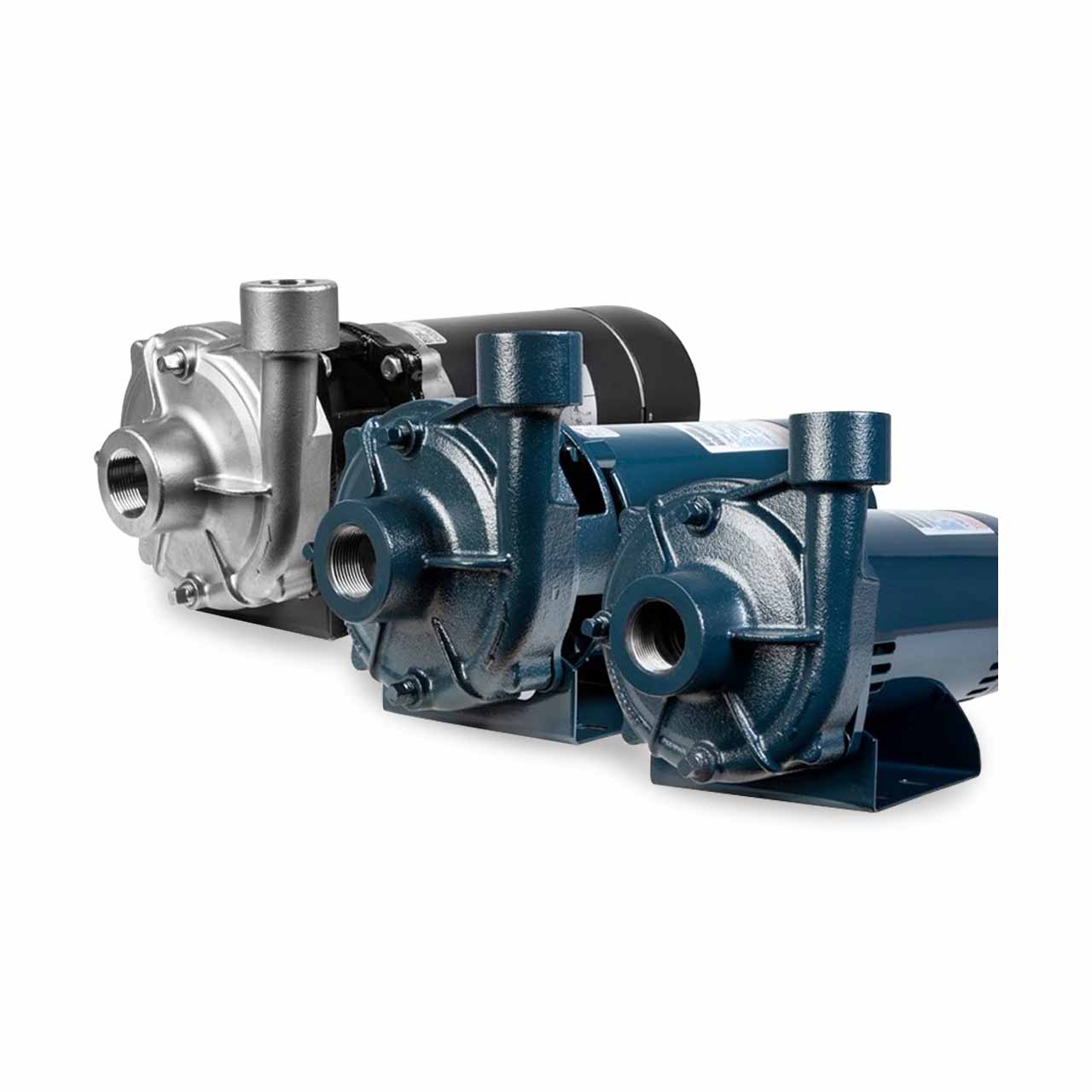

Franklin Electric DR Series Close-Coupled Centrifugal Pumps Descriptions

The robust DR1-DR2 Series close-coupled centrifugal pumps are available in a variety of pump construction materials to enable handling a wide array of applications. Square Flange, 56J threaded and 56C keyed shaft motor driven units are available , as well as pump end kits for those customers who choose to provide their own 56J or 56C motors to pair with our close-coupled centrifugal pump.

Franklin Electric DR Series Close-Coupled Centrifugal Pumps Applications

• Water Circulation
• Booster Service
• Liquid Transfer
• Spraying Systems
• Jockey Pump Service
• General Purpose Pumping

Franklin Electric DR Series Close-Coupled Centrifugal Pump Features

• Back Pull-Out Design Provides Access to Internal Parts without Disturbing the Plumbing
• Robust Cast Iron Volute Standard; Stainless Steel Alternated Available for DR1 Series
• Volute Discharge can be Rotated in 90°Increments with Top Vertical Standard from the Factory
• Multiple 1/4" NPT Drain/Pressure Ports Enable Winterizing no Matter the Volute Orientation
• Enclosed Impeller Design for Increased Efficiencies; Thermoplastic and Stainless Steel Options
• Multiple Mechanical Seal Construction Materials to Accommodate Handling Various Fluids
• Every Pump Unit Factory Wet Tested to Insure Customer Satisfaction
• Suitable for Horizontal or Vertical (motor end up) Installation
• NEMA Standard Motor Options Include:
• Pump End Kits Available for 56C & 56J Motor Construction
• Rotation: Right Hand; Clockwise when Viewed from Motor End
• Maximize Fluid Handling Temperature 180°F (82°C)
