Discontinued - Convertible Jet Pumps

Although no single pump can meet all applications, the Convertible VersaJet Pump from Franklin Electric comes close. Each model can be configured with a variety of pressure and flow choices in both shallow and deep set installations. In addition, four different suction flange options make this pump the contractor's choice for those tough replacement jobs.

Franklin Electric Convertible VersaJet Pump Features

• Heavy-Duty Cast Iron Case Ensures Optimum Durability and Long Life.
• Modular Suction Flange System to Retrofit Current Installations without Disturbing the Existing Plumbing.
• Thermoplastic Impeller and Diffuser Precision Molded for High Efficiency and Dependability
• Phenolic/Ceramic Mechanical Shaft Seal Ensures Leakproof Fit and Maximum Pressure Handling Capability
• Adjustable Pressure Switch is Factory Set at 30/50 PSI
• Powered by High Quality , Industry Proven, UL778 Approved, Indoor/Outdoor Square-Flange Motors
• Dual Voltage Motor can be set to Run at Either 115V or 230V.
• Built-In Drain Plug for Easy Winterization and Servicing.
• Pressure Switch is Installed and Set at 30/50 PSI.
• Water Temperatures up to 120°F/49°C; 75 PSI Maximum Working Pressure
• Connections:
• 1-1/4" FNPT Suction
• 1.0" FNPT Drive Line

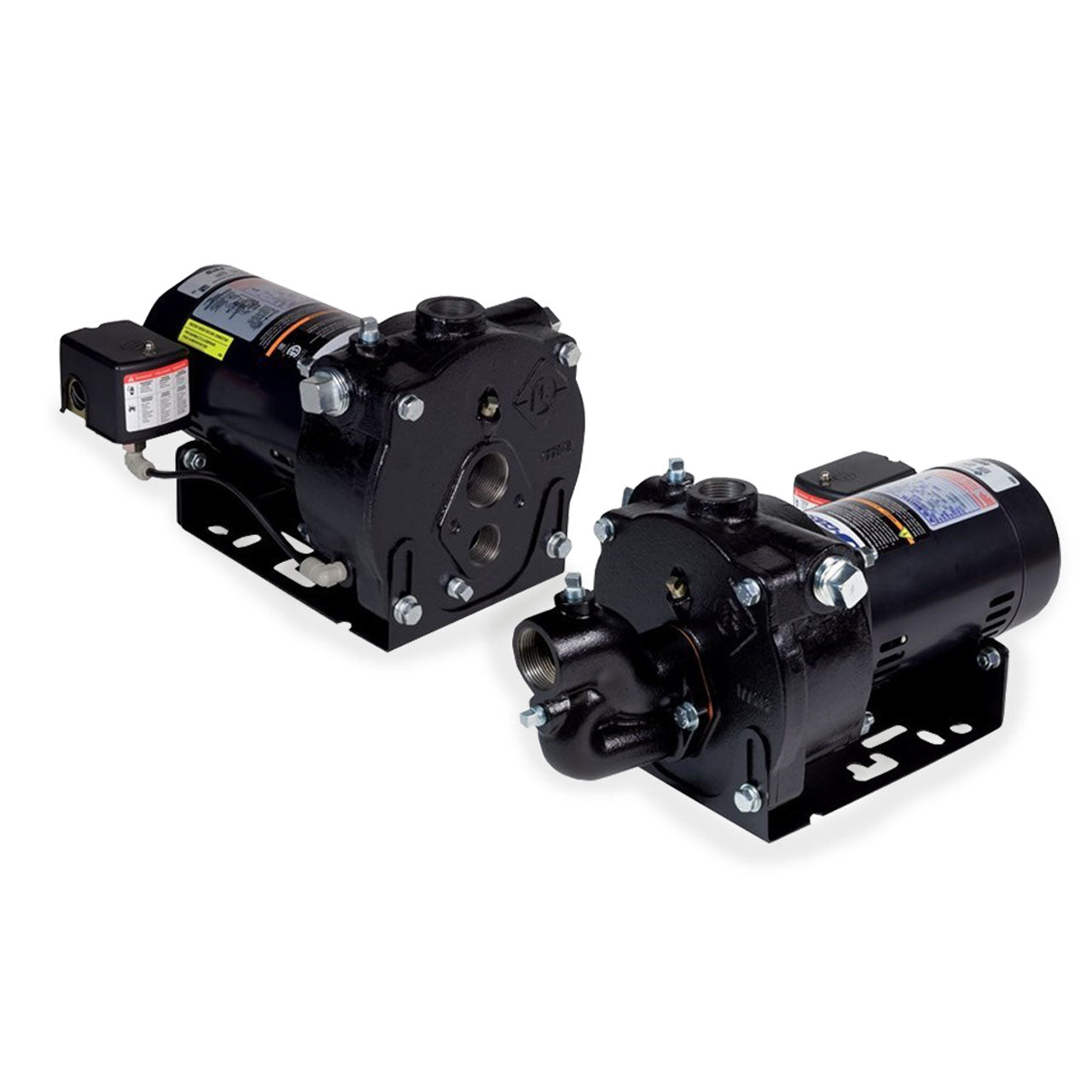

Franklin Electric CVJ15CI-S Pump Specifications

• DISCHARGE SIZE: 1.0" FNPT
• INLET SIZE: 1.25" FNPT
• IMPELLER MATERIAL: Thermoplastic
• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 1.5
• VOLTAGE: 115/230V
• MAXIMUM LIQUID TEMPERATURE: 120 °F/49 °C
• FULL LOAD AMPS: 19.9/9.95
