Franklin Electric 93975244C 15-3WQP-1.5HP-3RC MonoDriveXT QuickPAK 15 GPM NEMA 3R
Franklin Electric 93975244C 15-3WQP-1.5HP-3RC MonoDriveXT QuickPAK 15 GPM NEMA 3R
SKU : FEC93975244
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued See Replacement: Franklin Electric 93975244C 15-3WQP-1.5HP-3RC SubDrive Connect -Wire QuickPAK 15 GPM NEMA 3R

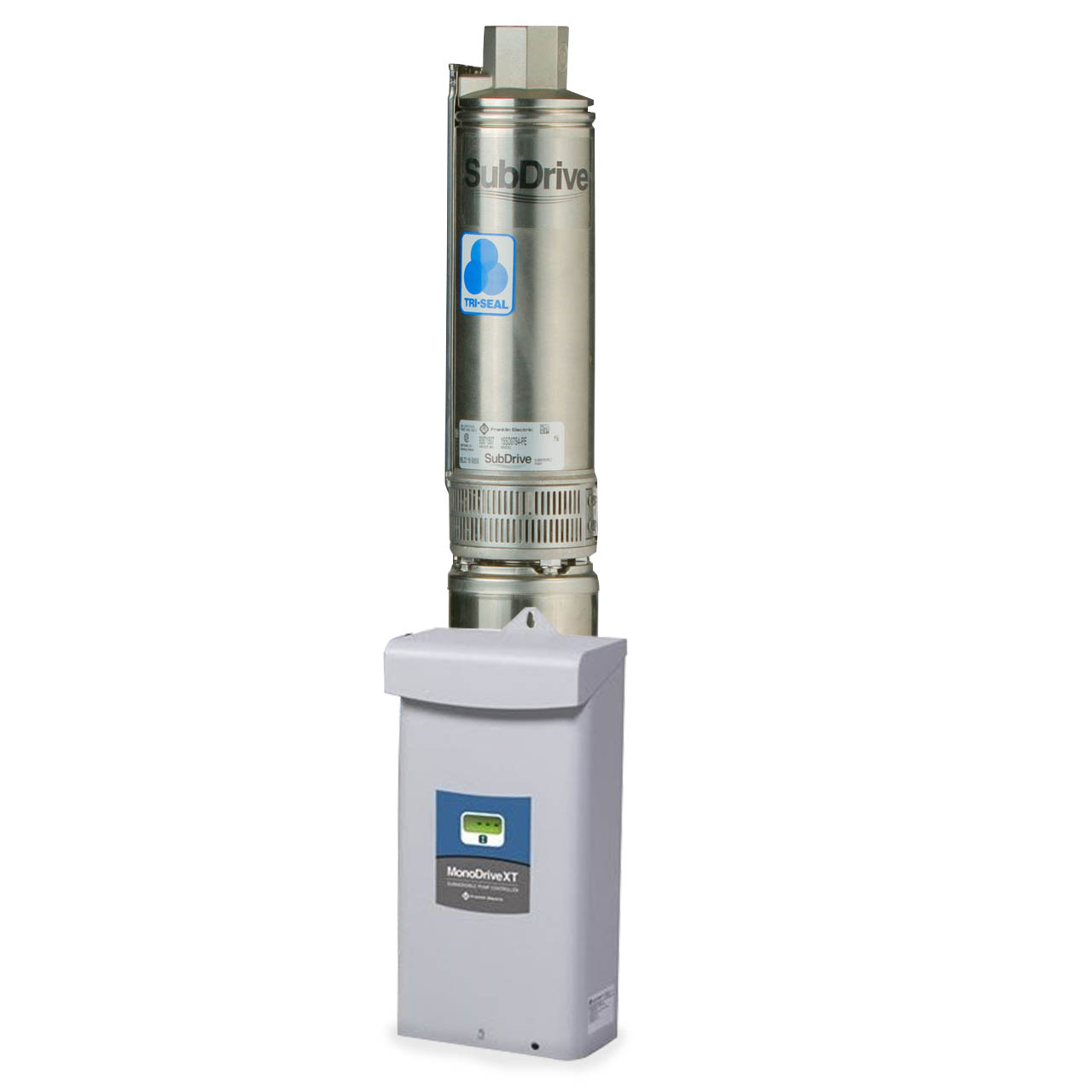

Franklin Electric Monodrive QuickPAK Well Pump Package Description
The MonoDrive is an all-in-one package backed by Franklin's commitment to quality, availability, service, innovation and value. The MonoDrive is Franklin's popular system solution package, designed to simplify the installation of a constant pressure system.
Franklin Electric MonoDrive QuickPAK Included Components
- Franklin Pump
- Franklin Motor
- NEMA 3R Enclosure
- Pressure Sensor
Franklin Electric MonoDrive QuickPAK Applications
- Residential Water Systems
- City-Like Water Pressure
- Smaller Tank Saves Space
- Landscape Irrigation Systems
- Even Distribution of Water in Zones
- Eliminates Need for Separate System
- Water Treatment Systems
- More Efficient Back Flushing
- Eliminates Need for Multiple Pumps
- Geothermal Systems
- Constant Pressure Boosting
- Ability to Pump from a Cistern or Holding Tank
Specifications
Specifications
Franklin Electric MonoDrive QuickPAK Features
- Motor, Pump and Drive all in One Package
- Selection Based on Flow and Total Dynamic Head
- NEMA 3R Drive Enclosure
- Excellent Radio Frequency Interference Shielding
- User-Defined Motor Frequency Range and Underload Off-Time
- Pressure Transducer Input with System Pressure Display (NEMA 3R)
- Soft Start Feature Prevents Water Hammer and Increases Motor Life
- Works with Small or Large Pressure Tanks, Including an Existing Tank
- FE Connect Mobile App for Advanced Settings and Monitoring (NEMA 3R)
- Built-In Diagnostic Features and Protection from Potentially Harmful Conditions, Including Surge, Underload, Undervoltage, Locked Pump, Open Circuit, Short Circuit, Overheated Controller, and Broken Pipe
- Flow Rates of 5-25 gpm for MonoDrive (3-Wire) QuickPAK
- Single-Phase Motor Performance using 0.5-2 HP Motors for MonoDrive (3-Wire) QuickPAK
Franklin Electric 15-3WQP-1.5HP-3RC QuickPAK Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric MonoDrive QuickPAK Resources
Franklin Electric QuickPAK Catalog
Franklin Electric QuickPAK Brochure
Franklin Electric QuickPAK Family
Franklin Electric QuickPAK Quick Install Reference Sheet
Franklin Electric QuickPAK Owners Manual
Franklin Electric QuickPAK Quick Troubleshoot Guide
Franklin Electric QuickPAK Duplex Alternator Install Manual
Franklin Electric QuickPAK Duplex Alternator Wiring Guide
