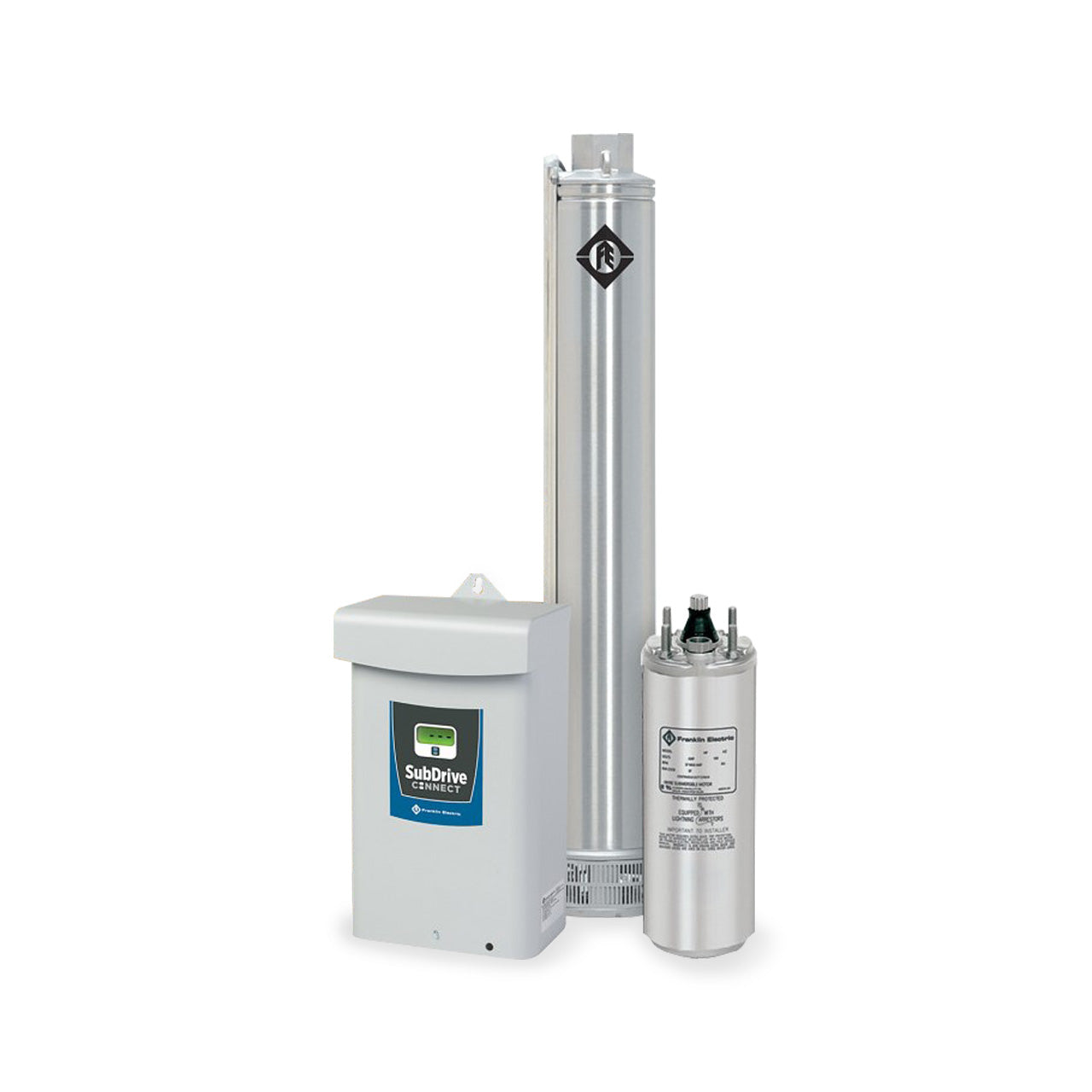

Franklin Electric SubDrive QuickPAK Applications

• Residential Water Systems
• Landscape Irrigation Systems
• Water Treatment Systems
• Geothermal Systems
• Constant Pressure Boosting

Franklin Electric SubDrive QuickPAK Features

• Designed for Water Systems, Optimized for Constant Pressure. Designed specifically for water pumping applications, SubDrive QuickPAK delivers unique features:
• Provides Consistent Water Pressure Across a System, Eliminating Fluctuations
• Soft Start Maximizes System Life
• Advanced Filtering Removes Radio Frequency Interference
• Power Factor Correction that Optimizes the System for a Wider
• Additional Built-In Protections Include:
• Underload (Dry-Run) with Customizable
• Overload/Locked Pump
• Broken Pipe Detection
• Output Short Circuit and Open Circuit
• Undervoltage
• Electrical Surge
• Overheated Controller
• Simple Installation, Easy Selection
• Select a System Quickly Based on Flow and Total Dynamic Head Requirements
• Motor, Pump and Drive All In One Package
• The Easy-To-Install Platform uses and Array of Setup and Assisted Troubleshooting Solutions to Help You Save Time During Installation and Servicing
• Versatility for Multiple Applications:
• Find a Solution for Every Challenge with Flow Rate Options from 5 up to 90 GPM and Horsepower Ranges up to 5 Horsepower, 3-Phase or 1-Phase, 3-Wire Motor Options
• System Optimized with SubDrive Connect:
• Deliver Integrated Connectivity and Compatibility with our FE Connect Mobile App for Advanced Settings and Monitoring
• Pressure Transducer Included for Pressure Display
• Comes Standard with a Self-Contained NEMA 3R Enclosure that can be Used Indoors or Outside Since the Drive Provides a Degree of Protection Against Falling Rain or Sleet
• Offers Options Powered by 4" MagForce High Efficiency Motor's Permanent Magnet Technology
• Smaller Footprint, Smarter Use of Space: Compact Drive Design is Ideal for Wall-Mounting; Works with Small Pressure Tanks or Existing Larger Tanks.

Franklin Electric 35PMQP-5.0HP-3RC SubDrive QuickPAK Specifications

Water Well Motors
• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: Motor: 5.0 HP
• VOLTAGE: 3ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.15
• DOWNWARD THRUST (lbs): 650 lbs
• DUTY RATING: Continuous
• FULL LOAD AMPS: 8.1
• LEAD: 3-Wire, XPLE
Water Well Pump Ends
• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 35 GPM
• HORSEPOWER: 3.0 HP
• MAXIMUM CAPACITY: 63 GPM
• MAXIMUM HEAD: 700’
• STAGES: 12
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Acetal
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric 35PMQP-5.0HP-3RC SubDrive QuickPAK Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
