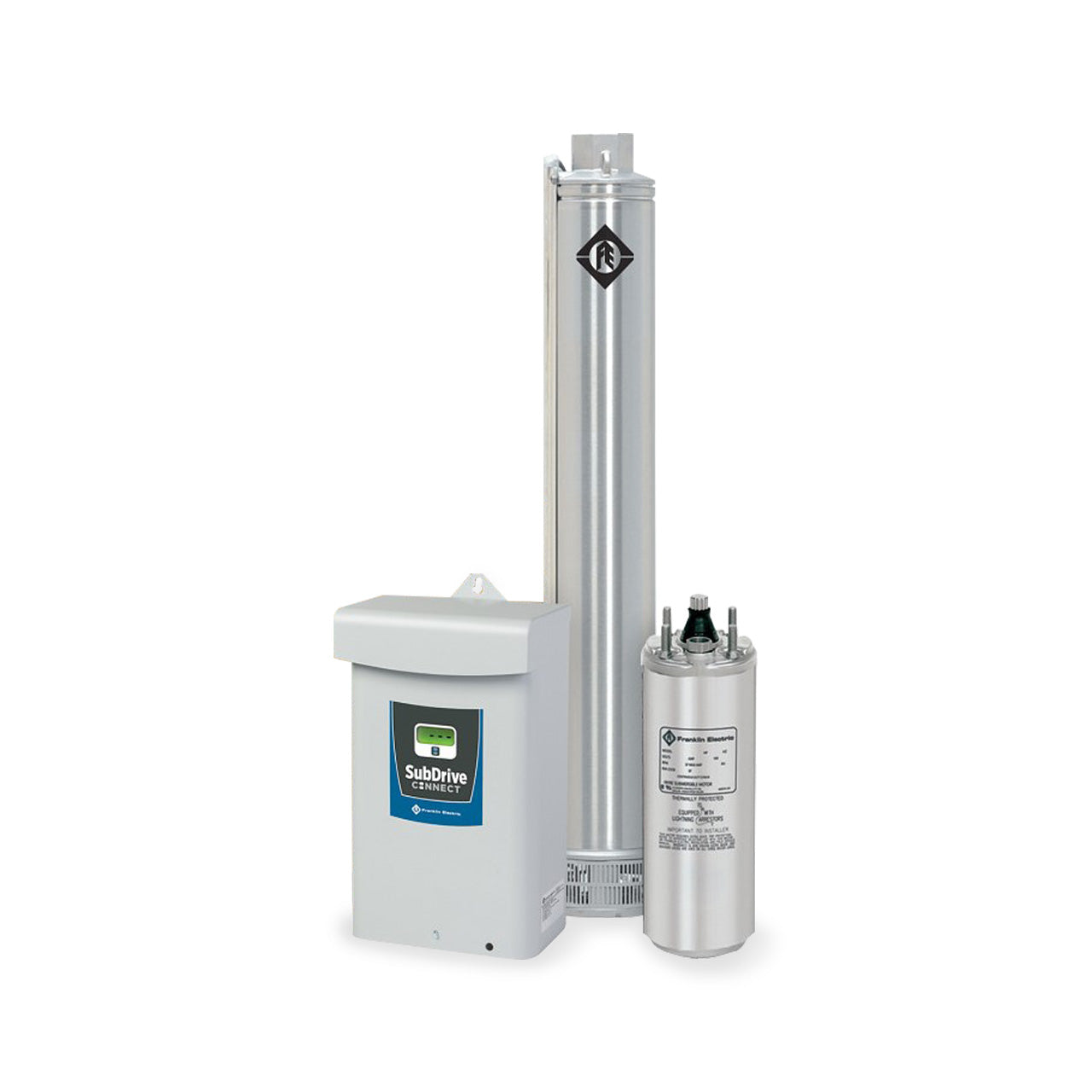

Franklin Electric SubDrive QuickPAK Applications

• Residential Water Systems
• Landscape Irrigation Systems
• Water Treatment Systems
• Geothermal Systems
• Constant Pressure Boosting

Franklin Electric SubDrive QuickPAK Features

• Designed for Water Systems, Optimized for Constant Pressure.
• Provides Consistent Water Pressure Across a System, Eliminating Fluctuations
• Soft Start Maximizes System Life
• Advanced Filtering Removes Radio Frequency Interference
• Power Factor Correction that Optimizes the System for a Wider Performance Range
• Additional Built-In Protections Include:
• Underload (Dry-Run) with Customizable
• Overload/Locked Pump
• Broken Pipe Detection
• Output Short Circuit and Open Circuit
• Undervoltage
• Electrical Surge
• Overheated Controller
• Find and All-In-One Solution for Every Challenge: Simple Installation, Easy Selection
• Packaged Solutions Include Pump, Motor and Drive to Ensure Effortless Sizing
• Available Options Cover a Wide Range of Needs:
• Flow Rate Choices from 5 to 90 GPM
• Up to 5 HP
• 3-Phase or 1-Phase, 3-Wire Motor
• The Easy-To-Install Platform Uses an Array of Setup and Assisted Troubleshooting Solutions to Help you Save Time During Installation and Servicing
• Compact Drive Design is Ideal for Wall-Mounting and Smarter Use of Space; Works With Small Pressure Tanks or Existing Larger Tanks
• Unlock a Smaller, Lighter and More Powerful Design when Ordering SubDrive QuickPAK Powered by a 4-Inch MagForce High Efficiency Motor
• Optimized for Multiple Applications:
• QuickPAK Optimized with SubDrive Connect:
• Offers 3-Phase Options Powered by a 4" MagForce High Efficiency Motor to Achieve Performance with the Least Amount of Electricity at any Given Operational Point
• Comes Standard with a Self-Contained NEMA 3R Enclosure that can be Used Indoors or Outside Since the Drive Provides a Degree of Protection Against Falling Rain or Sleet
• Easy Setup & Troubleshooting via FE Connect Saves Time During Installation and Reduces Services Hours
• Pressure Transducer Included for Pressure Display
• QuickPAK Optimized with SubDrive NEMA 4:
• Comes Standard with a Self-Contained NEMA 4 Enclosure that Offers Robust Protection against Harsh Environmental Conditions
• Includes Traditional Pressure Sensor:
• Fully Supported: Comes Fully Supported by Industry-Leading Technical Support Professionals and Field Service Engineers

Franklin Electric 35PMQP-3.0HP-3RC SubDrive QuickPAK Specifications

Water Well Motors
• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: Motor: 3.0 HP
• VOLTAGE: 3ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.15
• DOWNWARD THRUST (lbs): 650 lbs
• DUTY RATING: Continuous
• FULL LOAD AMPS: 8.1
• LEAD: 3-Wire, XPLE
Water Well Pump Ends
• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 35 GPM
• HORSEPOWER: 1.5 HP
• MAXIMUM CAPACITY: 63 GPM
• MAXIMUM HEAD: 400’
• STAGES: 7
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Acetal
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric 35PMQP-3.0HP-3RC SubDrive QuickPAK Pump Curve
