Franklin Electric SubDrive QuickPAK Applications

• Residential Water Systems
• Landscape Irrigation Systems
• Water Treatment Systems
• Geothermal Systems
• Constant Pressure Boosting

Franklin Electric SubDrive QuickPAK Features

• Designed for Water Systems, Optimized for Constant Pressure. Designed specifically for water pumping applications, SubDrive QuickPAK delivers unique features:
• Provides Consistent Water Pressure Across a System, Eliminating Fluctuations
• Soft Start Maximizes System Life
• Advanced Filtering Removes Radio Frequency Interference
• Power Factor Correction that Optimizes the System for a Wider
• Additional Built-In Protections Include:
• Underload (Dry-Run) with Customizable
• Overload/Locked Pump
• Broken Pipe Detection
• Output Short Circuit and Open Circuit
• Undervoltage
• Electrical Surge
• Overheated Controller
• Simple Installation, Easy Selection
• Select a System Quickly Based on Flow and Total Dynamic Head Requirements
• Motor, Pump and Drive All In One Package
• The Easy-To-Install Platform uses and Array of Setup and Assisted Troubleshooting Solutions to Help You Save Time During Installation and Servicing
• Versatility for Multiple Applications:
• Find a Solution for Every Challenge with Flow Rate Options from 5 up to 90 GPM and Horsepower Ranges up to 5 Horsepower, 3-Phase or 1-Phase, 3-Wire Motor Options
• System Optimized with SubDrive Connect:
• Deliver Integrated Connectivity and Compatibility with our FE Connect Mobile App for Advanced Settings and Monitoring
• Pressure Transducer Included for Pressure Display
• Comes Standard with a Self-Contained NEMA 3R Enclosure that can be Used Indoors or Outside Since the Drive Provides a Degree of Protection Against Falling Rain or Sleet
• Offers Options Powered by 4" MagForce High Efficiency Motor's Permanent Magnet Technology
• Smaller Footprint, Smarter Use of Space: Compact Drive Design is Ideal for Wall-Mounting; Works with Small Pressure Tanks or Existing Larger Tanks.

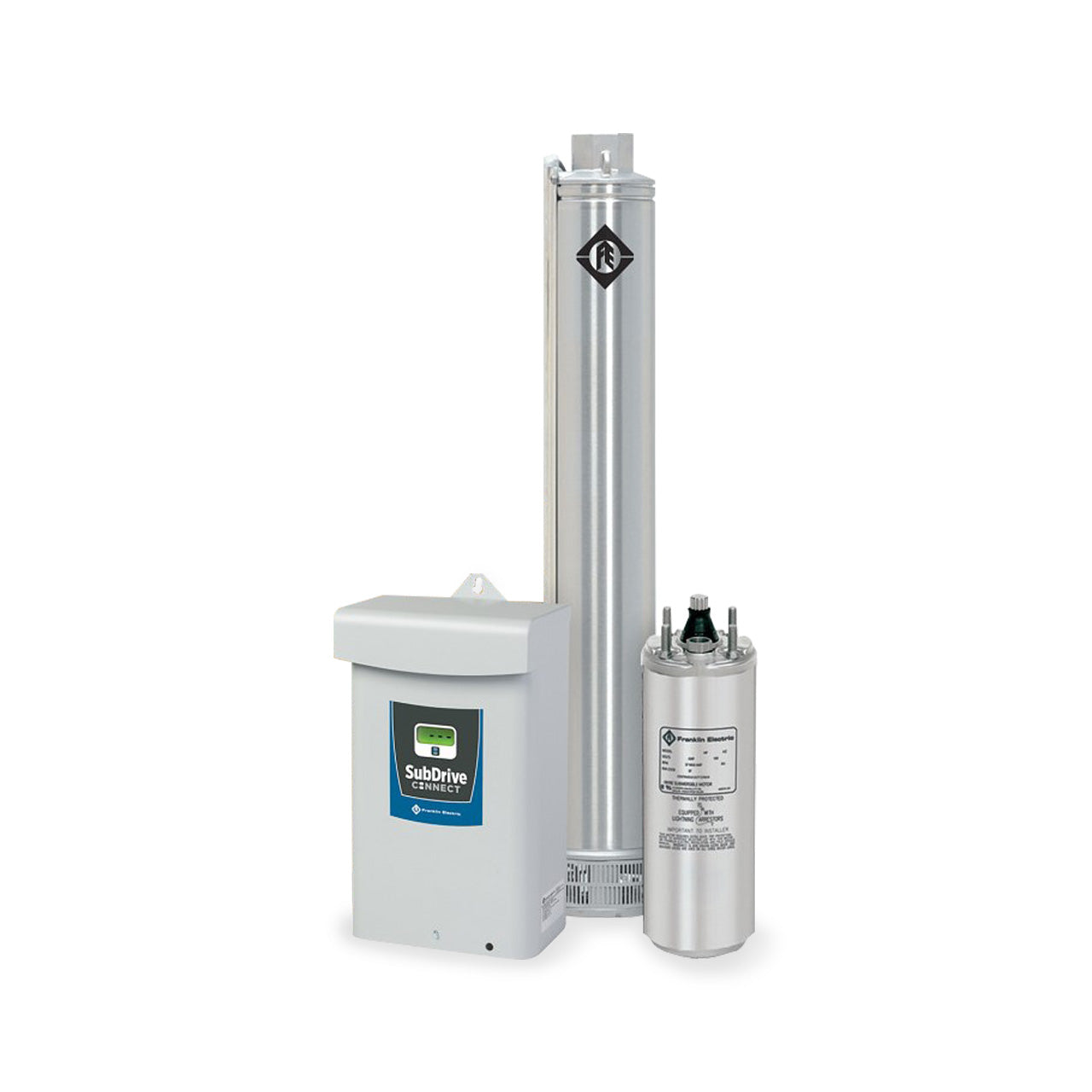

Franklin Electric 15PMQP-3.0HP-3RC SubDrive QuickPAK Specifications

Water Well Motors
• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: Motor: 3.0 HP
• VOLTAGE: 3ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.25
• DOWNWARD THRUST (lbs): 650 lbs
• DUTY RATING: Continuous
• FULL LOAD AMPS: 8.1
• LEAD: 3-Wire, XPLE
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” NPT
• NOMINAL FLOW RATING: 7 GPM
• HORSEPOWER: 1.5 HP
• MAXIMUM CAPACITY: 13 GPM
• MAXIMUM HEAD: 850’
• STAGES: 11
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Acetal
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric 15PMQP-3.0HP-3RC SubDrive QuickPAK Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SubDrive QuickPAK Resources

Franklin Electric SubDrive QuickPAK Catalog

Franklin Electric SubDrive Connect Brochure

Franklin Electric 4" MagForce High Efficiency Motors Brochure

Franklin Electric SubDrive Connect Owners Manual

Franklin Electric 60 Hz AIM Manual
