Franklin Electric SubDrive QuickPAK Applications

• Residential Water Systems
• Landscape Irrigation Systems
• Water Treatment Systems
• Geothermal Systems
• Constant Pressure Boosting

Franklin Electric SubDrive QuickPAK Features

• Designed for Water Systems, Optimized for Constant Pressure.
• Provides Consistent Water Pressure Across a System, Eliminating Fluctuations
• Soft Start Maximizes System Life
• Advanced Filtering Removes Radio Frequency Interference
• Power Factor Correction that Optimizes the System for a Wider Performance Range
• Additional Built-In Protections Include:
• Underload (Dry-Run) with Customizable
• Overload/Locked Pump
• Broken Pipe Detection
• Output Short Circuit and Open Circuit
• Undervoltage
• Electrical Surge
• Overheated Controller
• Find and All-In-One Solution for Every Challenge: Simple Installation, Easy Selection
• Packaged Solutions Include Pump, Motor and Drive to Ensure Effortless Sizing
• Available Options Cover a Wide Range of Needs:
• Flow Rate Choices from 5 to 90 GPM
• Up to 5 HP
• 3-Phase or 1-Phase, 3-Wire Motor
• The Easy-To-Install Platform Uses an Array of Setup and Assisted Troubleshooting Solutions to Help you Save Time During Installation and Servicing
• Compact Drive Design is Ideal for Wall-Mounting and Smarter Use of Space; Works With Small Pressure Tanks or Existing Larger Tanks
• Unlock a Smaller, Lighter and More Powerful Design when Ordering SubDrive QuickPAK Powered by a 4-Inch MagForce High Efficiency Motor
• Optimized for Multiple Applications:
• QuickPAK Optimized with SubDrive Connect:
• Offers 3-Phase Options Powered by a 4" MagForce High Efficiency Motor to Achieve Performance with the Least Amount of Electricity at any Given Operational Point
• Comes Standard with a Self-Contained NEMA 3R Enclosure that can be Used Indoors or Outside Since the Drive Provides a Degree of Protection Against Falling Rain or Sleet
• Easy Setup & Troubleshooting via FE Connect Saves Time During Installation and Reduces Services Hours
• Pressure Transducer Included for Pressure Display
• QuickPAK Optimized with SubDrive NEMA 4:
• Comes Standard with a Self-Contained NEMA 4 Enclosure that Offers Robust Protection against Harsh Environmental Conditions
• Includes Traditional Pressure Sensor:
• Fully Supported: Comes Fully Supported by Industry-Leading Technical Support Professionals and Field Service Engineers

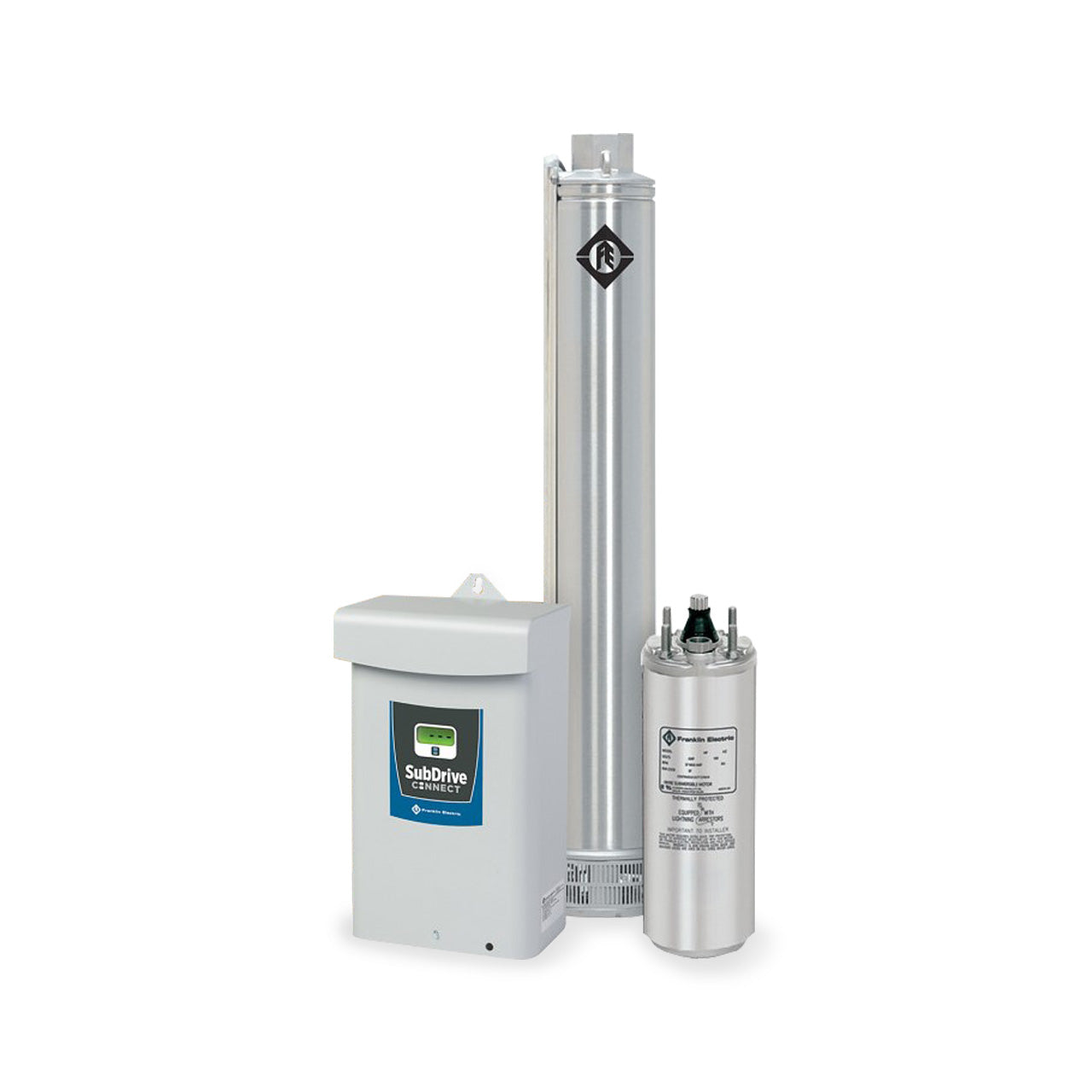

Franklin Electric 25PMQP-1.5HP-3RC SubDrive QuickPAK Specifications

Water Well Motors
• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: Motor: 1.5 HP
• VOLTAGE: 3ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.3
• DOWNWARD THRUST (lbs): 650 lbs
• DUTY RATING: Continuous
• FULL LOAD AMPS: 4.8
• LEAD: 3-Wire, XPLE
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” NPT
• NOMINAL FLOW RATING: 25 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 40 GPM
• MAXIMUM HEAD: 410’
• STAGES: 6
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Acetal
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F/49°C

Franklin Electric 25PMQP-1.5HP-3RC QuickPAK Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SubDrive QuickPAK Resources

Franklin Electric SubDrive QuickPAK Catalog

Franklin Electric SubDrive Connect Brochure

Franklin Electric 4" MagForce High Efficiency Motors Brochure

Franklin Electric SubDrive Connect Owners Manual

Franklin Electric 60 Hz AIM Manual
