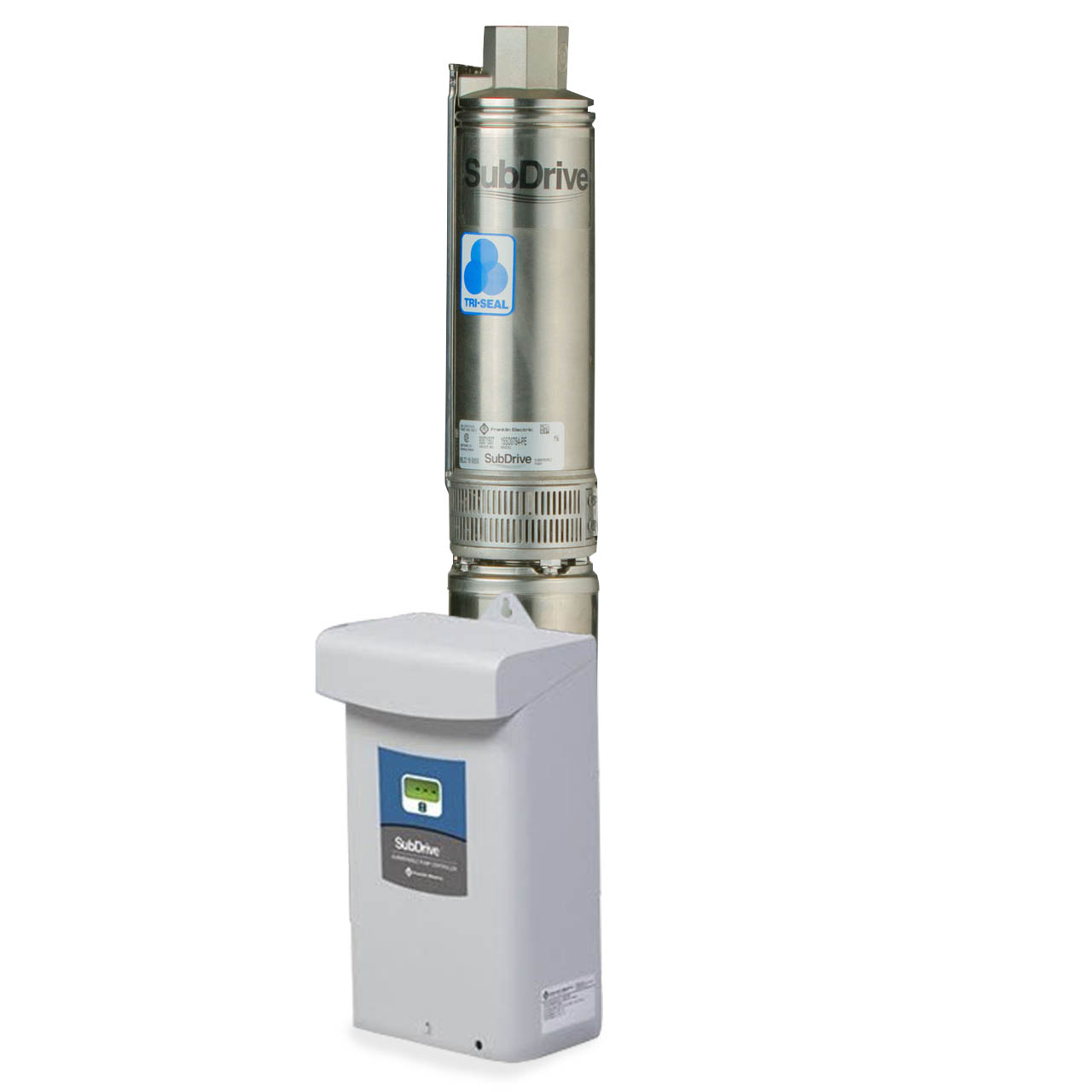

Franklin Electric 93805566C 25SDQP-3.0HP-3RC SubDrive 30 QuickPAK 25 GPM NEMA 3R
Franklin Electric 93805566C 25SDQP-3.0HP-3RC SubDrive 30 QuickPAK 25 GPM NEMA 3R
SKU : FEC93805566X
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED SEE REPLACEMENT: Franklin Electric 93806566C 25PMQP-3.0HP-3RC SubDrive 30 QuickPAK 25 GPM NEMA 3R
Franklin Electric QuickPAK Well Pump Packages
The SubDrive QuickPAK is an all-in-one package backed by Franklin's commitment to quality, availability, service, innovation and value. SubDrive QuickPAK is Franklin's popular system solution package, designed to simplify the installation of a constant pressure system.
Franklin Electric SubDrive QuickPAK Included Components
- Franklin pump
- Franklin motor
- NEMA 3R SubDrive variable frequency controller
- Pressure sensor
Franklin Electric SubDrive QuickPAK Applications
- Residential Water Systems
- City-like water pressure
- Smaller tank saves space
- Landscape Irrigation Systems
- Even distribution of water in zones
- Eliminates need for separate system
- Water Treatment Systems
- More efficient back flushing
- Eliminates need for multiple pumps
- Geothermal Systems
- Constant Pressure Boosting
- Ability to pump from a cistern or holding tank
Specifications
Specifications
Franklin Electric SubDrive QuickPAK Features
- Motor, pump and drive in one package
- Selection based on flow and total dynamic head
- NEMA 3R drive enclosure
- Soft start feature prevents water hammer and increases motor life
- Works with small or large pressure tanks, even works with an existing tank
- Smart Reset technology allows well recovery before restarting the pump
- Excellent radio frequency interference shielding
- FE Connect mobile app for advanced settings and monitoring
- Built-in diagnostic features and protection from potentially harmful conditions, including surge, underload, undervoltage, locked pump, open circuit, short circuit, overheated controller and broken pipe
- Flow rates of 7-90 gpm for SubDrive QuickPAK
- Single-phase input power, with three-phase motor performance using 1.5-3 hp motors for SubDrive QuickPAK
Franklin Electric 25SDQP-3.0HP-3RC QuickPAK Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SubDrive QuickPAK Resources
Franklin Electric QuickPAK Catalog
Franklin Electric QuickPAK Brochure
Franklin Electric QuickPAK Family
Franklin Electric QuickPAK Quick Install Reference Sheet
Franklin Electric QuickPAK Owners Manual
Franklin Electric QuickPAK Quick Troubleshoot Guide
Franklin Electric QuickPAK Duplex Alternator Install Manual
Franklin Electric QuickPAK Duplex Alternator Wiring Guide
