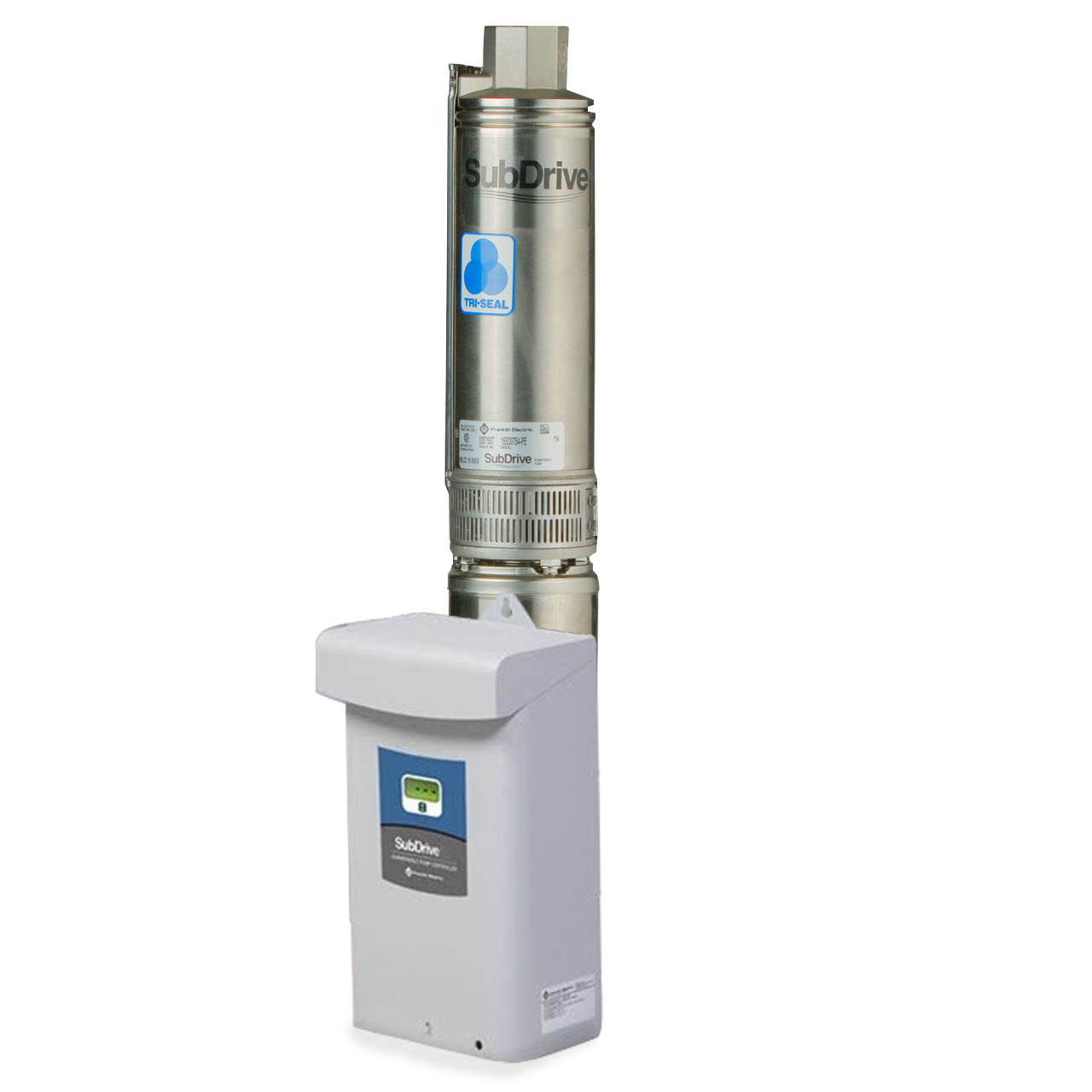

Franklin Electric SubDrive QuickPAK Applications

• Residential Water Systems
  • City-Like Water Pressure
  • Smaller Tank Saves Space
• Landscape Irrigation Systems
  • Even Distribution of Water in Zones
  • Eliminates Need for Separate System
• Water Treatment Systems
  • More Efficient Back Flushing
  • Eliminates Need for Multiple Pumps
• Geothermal Systems
• Constant Pressure Boosting
  • Ability to Pump from a Cistern or Holding Tank

Franklin Electric SubDrive QuickPAK Features

• Motor, Pump and Drive all in One Package
• Selection Based on Flow and Total Dynamic Head
• NEMA 3R Drive Enclosure
• Excellent Radio Frequency Interference Shielding
• User-Defined Motor Frequency Range and Underload Off-Time
• Pressure Transducer Input with System Pressure Display (NEMA 3R Only)
• Soft-Start Feature Prevents Water Hammer and Increases Motor Life
• Works with Small or Large Pressure Tanks, Including an Existing Tank
• FE Connect Mobile App for Advanced Settings and Monitoring (NEMA 3R Only)
• Built-In Diagnostic Features and Protection from Potentially Harmful Conditions, Including Surge, Underload, Undervoltage, Locked Pump, Open Circuit, Short Circuit, Overheated Controller and Broken Pipe
• Flow Rates of 7-90 gpm for SubDrive QuickPAK
• Single-phase Input Power, with Three-Phase Motor Performance Using 1.5-3 HP Motors for SubDrive QuickPAK

Franklin Electric 7SDQP-3.0HP-3RC QuickPAK Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SubDrive QuickPAK Resources

Franklin Electric QuickPAK Catalog

Franklin Electric QuickPAK Brochure

Franklin Electric QuickPAK Family

Franklin Electric QuickPAK Quick Install Reference Sheet

Franklin Electric QuickPAK Owners Manual

Franklin Electric QuickPAK Quick Troubleshoot Guide

Franklin Electric QuickPAK Duplex Alternator Install Manual

Franklin Electric QuickPAK Duplex Alternator Wiring Guide

Franklin Electric QuickPAK Fan Replacement Install Guide

Franklin Electric 60 Hz AIM Manual
