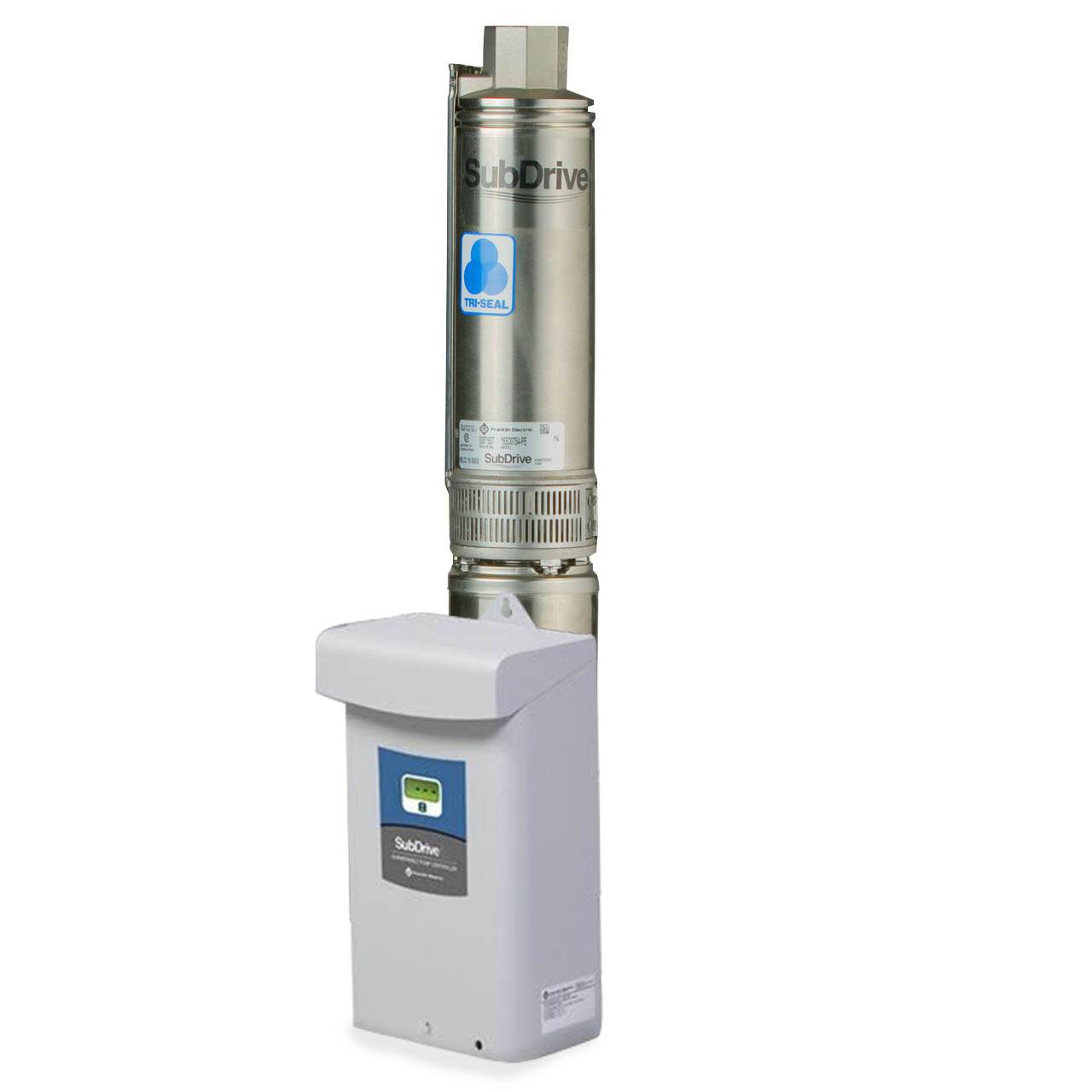

Franklin Electric 93805264C 25SDQP-1.5HP-3RC SubDrive 20 QuickPAK 25 GPM NEMA 3R
Franklin Electric 93805264C 25SDQP-1.5HP-3RC SubDrive 20 QuickPAK 25 GPM NEMA 3R
SKU : FEC93805264X
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED SEE REPLACEMENT: Franklin Electric 93806264C 25PMQP-1.5HP-3RC SubDrive 20 QuickPAK 25 GPM NEMA 3R
Franklin Electric QuickPAK Well Pump Package Description
The SubDrive QuickPAK is an all-in-one package backed by Franklin's commitment to quality, availability, service, innovation and value. SubDrive QuickPAK is Franklin's popular system solution package, designed to simplify the installation of a constant pressure system.
Franklin Electric SubDrive QuickPAK Included Components
Franklin Electric SubDrive QuickPAK Applications
- Residential Water Systems
- Landscape Irrigation Systems
- Water Treatment Systems
- Geothermal Systems
- Constant Pressure Boosting
Franklin Electric SubDrive QuickPAK Features
- Motor, Pump and Drive all in One Package
- Selection Based on Flow and Total Dynamic Head
- Soft-Start Feature Prevents Water Hammer and Increases Motor Life
- Flow Rates Option from 5 up to 90 GPM; Drives up to 5HP
- Built-In Diagnostic Features and Protection from Potentially Harmful Conditions, Including Surge, Underload, Overheated Controller and Broken Pipe Undervoltage, Locked Pump, Open Circuit, Short Circuit
- Single-Phase Input Power, with Three-Phase Motor Performance using SubDrive QuickPAKs
- FE Connect Mobile App for Advanced Settings and Monitoring
- Excellent Radio Frequency Interference Shielding
- 3-Phase or 1-Phase Motor Option Available
- Power Factor Correction Module for Increased Head and Flow Output
- Pressure Transducer Input with System Pressure Display
Specifications
Specifications
Franklin Electric 25SDQP-1.5HP-3RC SubDrive QuickPAK Specifications
- Motor
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: Motor: 1.5 HP/ Pump End: 1.0HP
- VOLTAGE: 3ø, 230V
- RPM: 3450
- SERVICE FACTOR: 1.3
- DOWNWARD THRUST (lbs): 650 lbs
- MAX AMBIENT TEMPERATURE: 86°F/30°C
- DUTY RATING: Continuous
- FULL LOAD AMPS: 5.0
- LEAD: 3-Wire, XPLE
Franklin Electric 25SDQP-1.5HP-3RC QuickPAK Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SubDrive QuickPAK Resources
Franklin Electric SubDrive QuickPAK Catalog
Franklin Electric SubDrive QuickPAK Brochure
Franklin Electric SubDrive QuickPAK Family
Franklin Electric QuickPAK Quick Install Reference Sheet
Franklin Electric QuickPAK Owners Manual
Franklin Electric QuickPAK Quick Troubleshoot Guide
Franklin Electric QuickPAK Duplex Alternator Install Manual
Franklin Electric QuickPAK Duplex Alternator Wiring Guide
