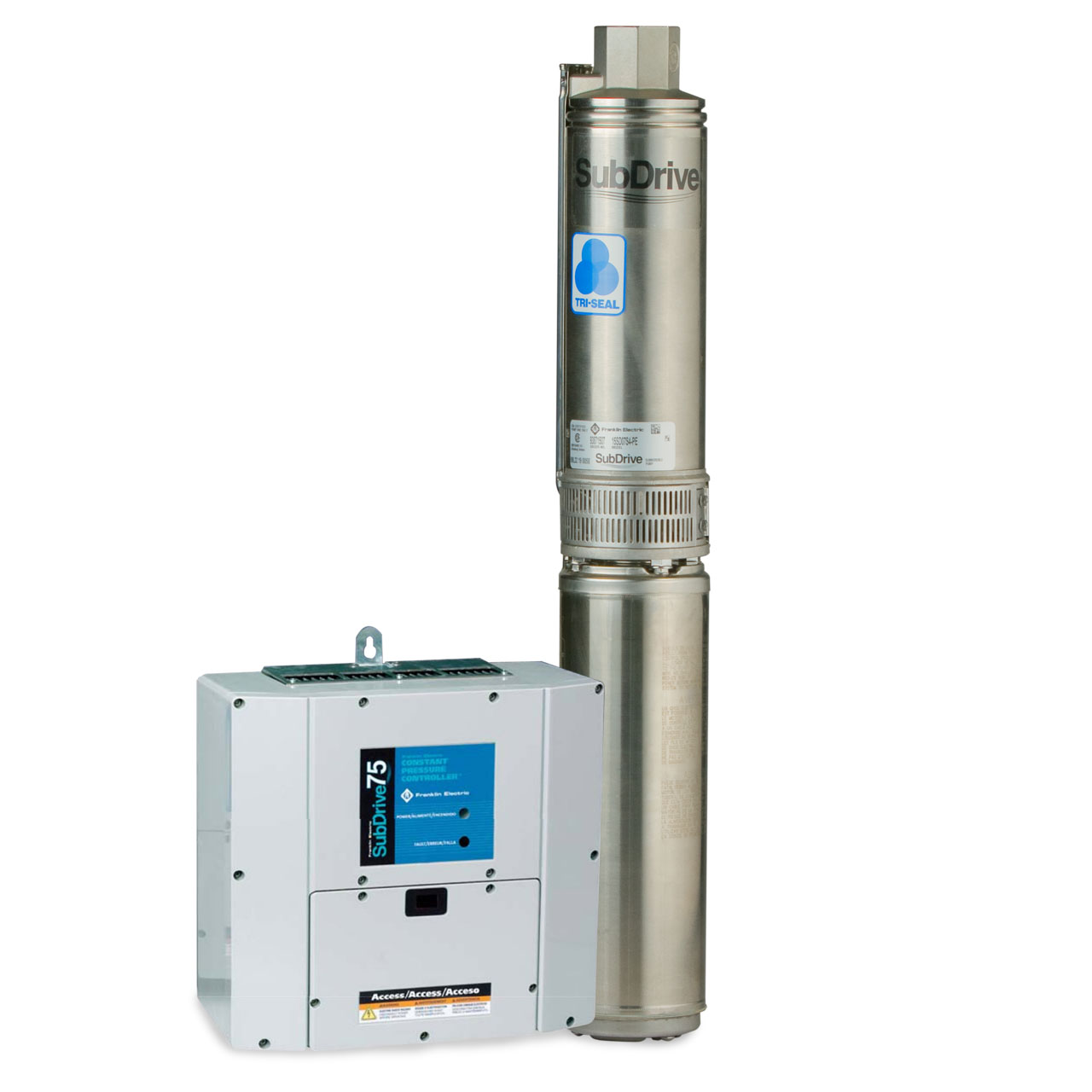

The SubDrive QuickPAK is a popular system-solution package designed to simplify the installation of a constant pressure system. This all-in-one package comes available with an extended warranty for the pump, motor and drive and features durable enclosures for added security.

Franklin Electric SubDrive QuickPAK Included Components

• Franklin Pump End
• Franklin Motor
• NEMA 4 SubDrive Variable Frequency Controller
• Pressure Sensor

Franklin Electric SubDrive QuickPAK Applications

Franklin Electric SubDrive QuickPAK Features

• Motor, Pump and Drive all in One Package
• Selection Based on Flow and Total Dynamic Head
• Soft-Start Feature Prevents Water Hammer and Increases Motor Life
• Flow Rates Option from 5 up to 90GPM; Drives up to 5HP
• Built-In Diagnostic Features and Protection from Potentially Harmful Conditions, Including Surge, Underload, Undervoltage, Locked Pump, Open Circuit, Short Circuit, Overheated Controller and Broken Pipe.
• Single-Phase Input Power, with Three-Phase Motor Performance using SubDrive QuickPAKs
• Best-in-Class Enclosure Rating
• Excellent Radio Frequency Interference Shielding
• 3-Phase Motor Performance
• Power Factor Correction Module for Increased Head and Flow Output

Franklin Electric 4" Submersible Motor Specifications

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 1.5 HP
• VOLTAGE: 3ø, 230V
• RPM: 3450
• SERVICE FACTOR: 1.3
• DOWNWARD THRUST (lbs): 650 lbs
• MAX AMBIENT TEMPERATURE: 86°F/30°C
• DUTY RATING: Continuous
• FULL LOAD AMPS: 5.0
• LEAD: 3-Wire, XPLE

Franklin Electric SubDrive QuickPAK Pump Curve
