Franklin Electric 90041554 15FDSP-5HP Fhoton SolarPAK 15 GPM
Franklin Electric 90041554 15FDSP-5HP Fhoton SolarPAK 15 GPM
SKU : FEC90041554
In Stock Quantity:0
:
Brand
:
Regular price
$15,336.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Fhoton SolarPAK Package Description
Franklin Electric™ Fhoton SolarPAK solar-powered is the new modular, compact and more flexible system solution to meet your solar pumping requirements. By utilizing quality components, innovative thinking, global market inputs, and a technical expertise in groundwater pumping, Franklin Electric has developed a rugged, high-output system, which tackles the challenges of harsh and remote environments. In addition, its design is more user friendly and allows for simplified maintenance. No other system delivers the features, benefits and reliability of Fhoton™ SolarPAK solar-powered pump in just one package!

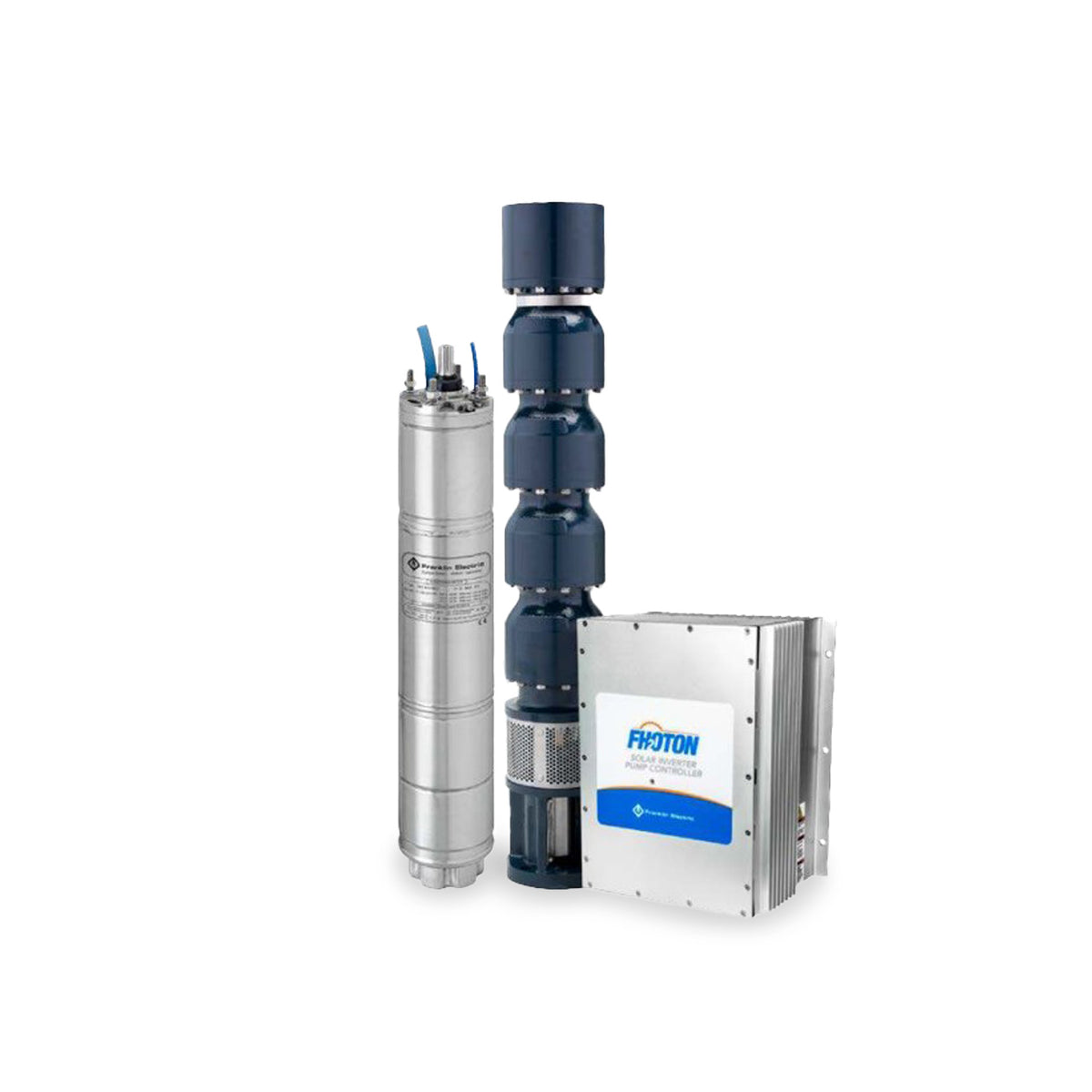

Franklin Electric Fhoton™ SolarPAK Includes:
- Franklin Electric 4" and 6" Submersible Motors
- Motor and Drive Ratings Available: 5.0-10HP (5.4 - 10.6 kW)
- Franklin Electric 4" and 6" Submersible Pumps
- Variety of Flow Rates Available: 10, 15, 25, 35, 45, 60, 90, 100, 125, 150, 180, 220, 275, 325, or 375 US GPM
- Fhoton™ Solar Controller
- Flow Switch with 30ft (10m ) Cable
Franklin Electric Fhoton™ SolarPAK Features
- High-Flow System for Faster Tank-Fill and Significant Water Output
- Proven Motor and Pump Technology for Long-Term Reliability
- Patented Software Provides Enhanced Dry-Run Protection
- Robust IP66, NEMA 4 Enclosure Minimizes Impact from Wildlife, Insects, Dust, and Weather
- Operating Status and Fault Conditions Indicated by Multi-Color LED
- Increased Performance Flexibility Compatible with a Wider Range of Input Voltages (up to 850 VDC)
- Terminals Provided for an Optional Data Communications Board Using the FE Connect App
- Maximum Power Point Tracking (MPPT) for Maximizing Efficiency of Input Power
- Soft-Start Feature Prevents Water Hammer and Increases System Life
- Simple Installation with No Required Maintenance
- Built-In Diagnostics and Protection
- cULus and UL Approved
Specifications
Specifications
Franklin Electric 15FDSP-5HP Fhoton™ SolarPAK Specifications
Water Well Motors
- BODY CONSTRUCTION: Stainless Steel
- HORSEPOWER: 5 HP
- VOLTAGE: 3ø, 230V
- MAX AMBIENT TEMPERATURE: 120°F/49°C
- LEAD: 3-Wire
Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 15 GPM
- HORSEPOWER: 5 HP
- STAGES: 31
- IMPELLER DESIGN: Closed
- IMPELLER MATERIAL: Celcon
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Franklin Electric Fhoton SolarPAK Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SubDrive SolarPAK Resources
Franklin Electric Fhoton SolarPAK Catalog
Franklin Electric Fhoton SolarPAK Installation Manual
