Franklin Electric E-Series Submersible Effluent Pump Features

• Ideal for Effluent Pumping Applications.
• Stainless Steel or Thermoplastic Discharge and Motor Bracket are Tough and Non-Corrosive. Both Materials are Highly Resistant to Damage by Minerals, Metals, and Other Substances Typically Found in Water.
• Heavy Duty, 300 V, 10 ft SJOOW Motor Leads.
• Designed to Provide Years of Reliable Service: High-Flow 35 to 90 GPM Units are Built with Proven and Durable Ceramic Sleeve Bearing.
• Water Flow Path Through the Discharge of the Pump is Designed to Pass Particulate to Allow for Efficient and Continuous Operation.
• Proven Hydraulic Staging Allows Close Tolerances and Increased Performance.
• Carbon Phenolic Upthrust Washer Prevents Excessive Wear in Severe Applications.
• Removable Built-In Check Valve on 10-20 GPM Pumps. No Built-In Check Valves on High Capacity Pumps.
• Powered by a Franklin Electric Submersible Motor.

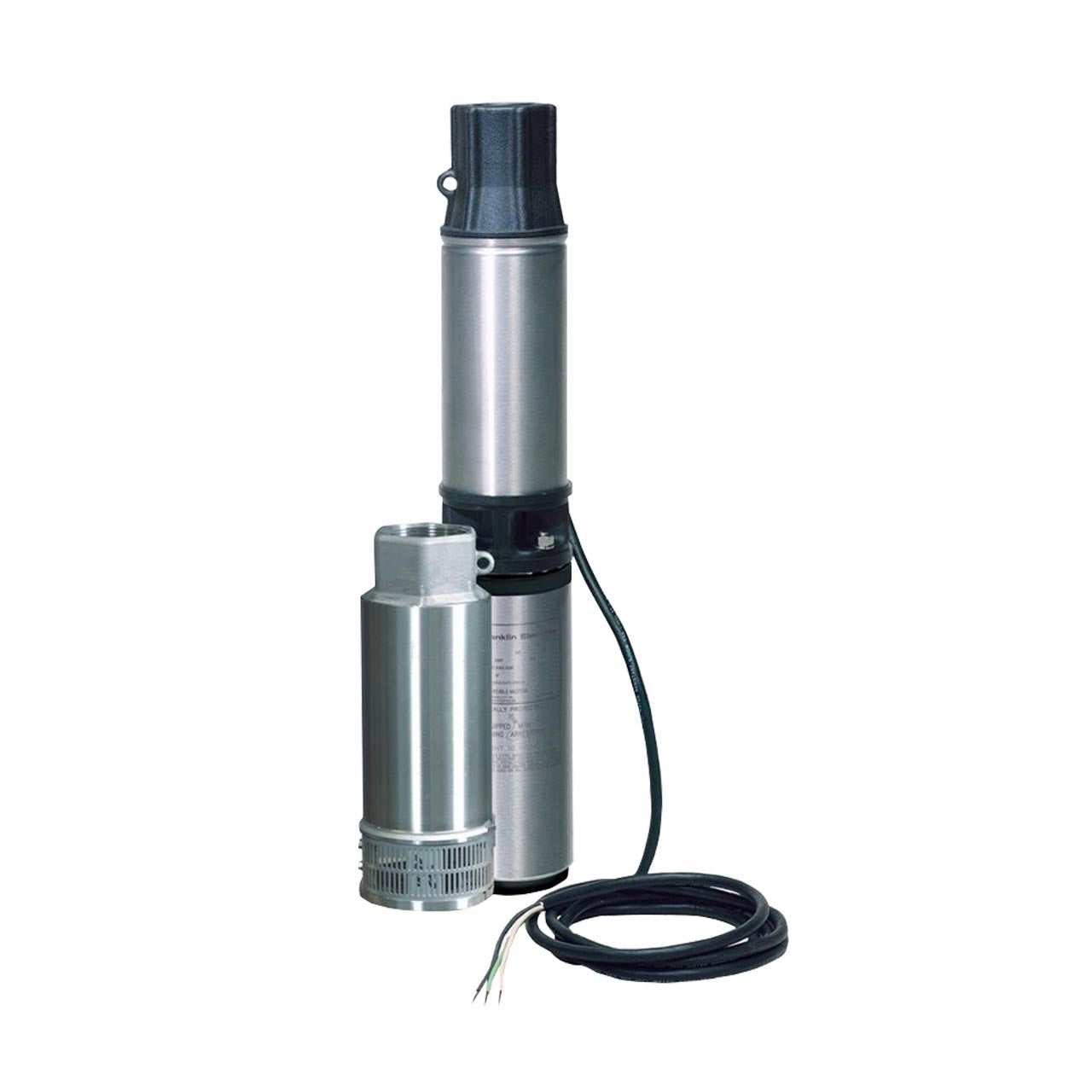

Franklin Electric 60HE1S4-2W230 E-Series Submersible Effluent Pump Specifications

Water Well Motors
• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 1.0 HP
• VOLTAGE: 1ø, 230V
• LEAD: 2-wire
Water Well Pump Ends
• DISCHARGE SIZE: 1.25” FNPT
• NOMINAL FLOW RATING: 60 GPM
• HORSEPOWER: 1.0 HP
• MAXIMUM CAPACITY: 90 GPM
• MAXIMUM HEAD: 120’
• STAGES: 4
• IMPELLER DESIGN: Floating Stack
• BODY MATERIAL: Stainless Steel

Franklin Electric E-Series 60 GPM Submersible Effluent Pump Curve
