Franklin Electric E-Series Submersible Effluent Pump Features

• Ideal for Effluent Pumping Applications.
• Stainless Steel or Thermoplastic Discharge and Motor Bracket are Tough and Non-Corrosive. Both Materials are Highly Resistant to Damage by Minerals, Metals, and Other Substances Typically Found in Water.
• Heavy Duty, 300 V, 10 ft SJOOW Motor Leads.
• Designed to Provide Years of Reliable Service: High-Flow 35 to 90 GPM Units are Built with Proven and Durable Ceramic Sleeve Bearing.
• Water Flow Path Through the Discharge of the Pump is Designed to Pass Particulate to Allow for Efficient and Continuous Operation.
• Proven Hydraulic Staging Allows Close Tolerances and Increased Performance.
• Carbon Phenolic Upthrust Washer Prevents Excessive Wear in Severe Applications.
• Removable Built-In Check Valve on 10-20 GPM Pumps. No Built-In Check Valves on High Capacity Pumps.
• Powered by a Franklin Electric Submersible Motor.

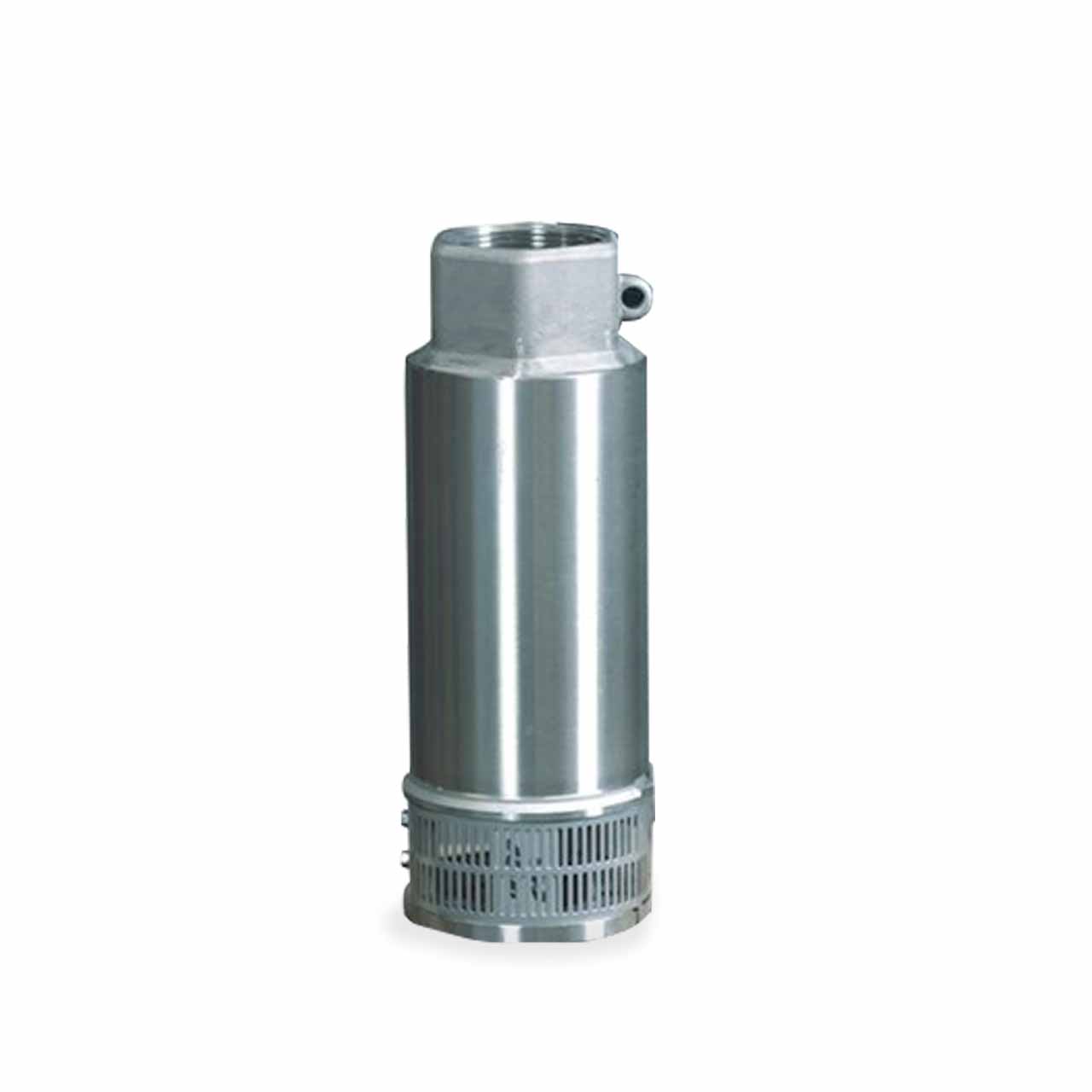

Franklin Electric 60HE05S4-PE E-Series Submersible Effluent Pump Specifications

• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 60 GPM
• HORSEPOWER: 0.5 HP
• MAXIMUM CAPACITY: 90 GPM
• MAXIMUM HEAD: 63’
• STAGES: 2
• IMPELLER DESIGN: Floating Stack
• BODY MATERIAL: Stainless Steel

Franklin Electric E-Series 60 GPM Submersible Effluent Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric E-Series Submersible Effluent Pump Product Resources

Download Franklin Electric E-Series Submersible Effluent Pump Catalog Pages

Download Franklin Electric E-Series Submersible Effluent Pump Brochure

Download Franklin Electric E-Series Submersible Effluent Pump Owner's Manual
