Franklin Electric 5FV1S4-3W230 Series V Submersible Pump 5 GPM 1.0 HP 230V 3-Wire
Franklin Electric 5FV1S4-3W230 Series V Submersible Pump 5 GPM 1.0 HP 230V 3-Wire
SKU : FEC95420545
In Stock Quantity:0
:
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

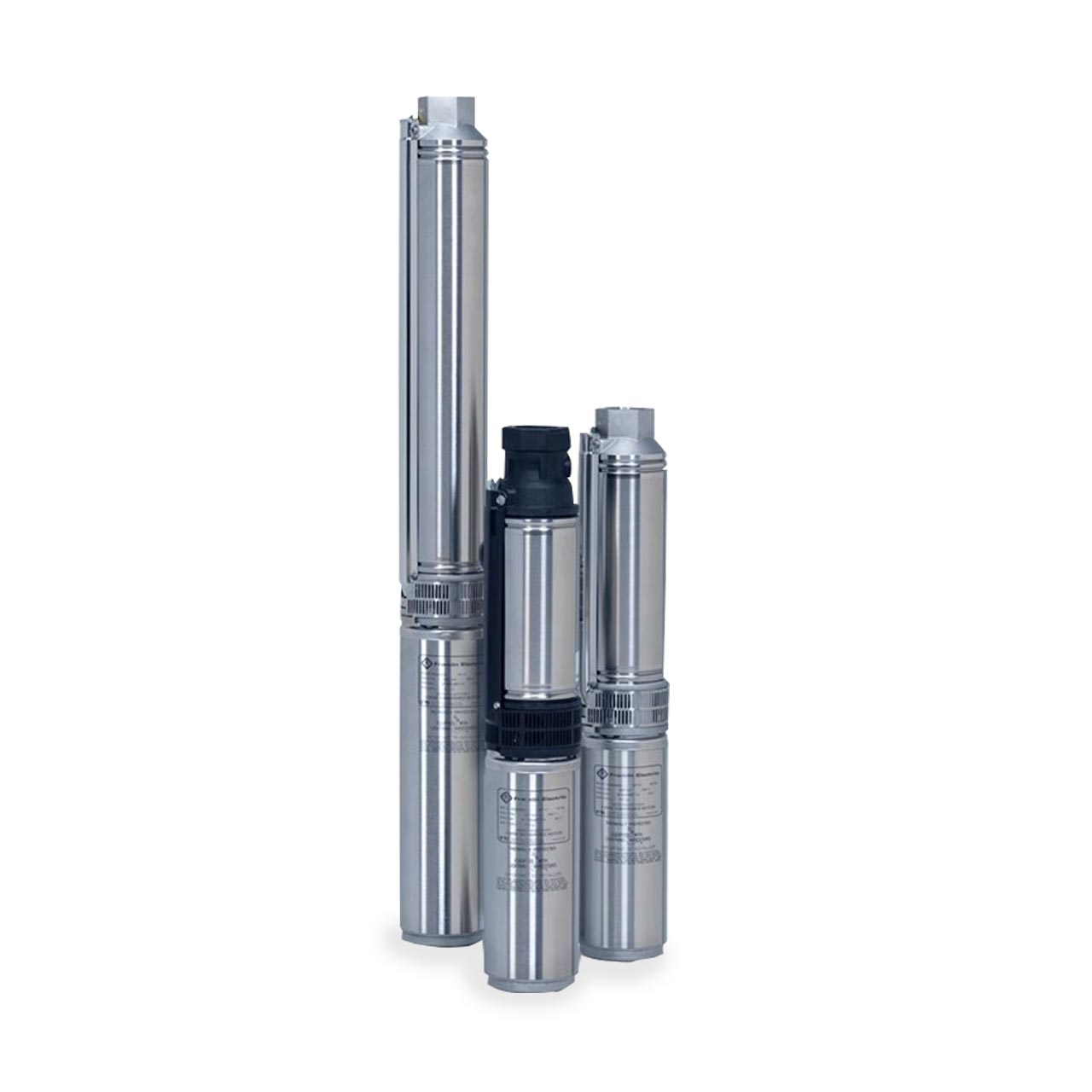

Franklin Electric Series V Submersible Pump
The standard FPS Series V submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. Available in 5, 7, 10, 15, 20, and 25 GPM, 1/2 - 5 horsepower.
Franklin Electric Series V Submersible Pump Features
- 6 Performance Ranges: 5, 7, 10, 15, 20, and 25 GPM.
- Horsepower Ranges: 1/2 - 5.
- Discharge Head and Motor Bracket Produced with Industry Proven, Engineered Materials. Available in 300 Series Stainless Steel or High-Quality Thermoplastic Resins.
- Large Wrench Flat Area on the Discharge Head for Ease of Installation.
- Dry Run Designed Top Bearing Positively Supports the 300 Series Stainless Steel 7/16-inch Hex Shaft.
- Removable Internal Check Valve.
- Powered by Franklin Electric Corrosion-Resistant Super Stainless 4-inch Submersible Motors with Lightning Protection.
- Maximum Water Temperature with Proper Flow is 120°F/49°C. Consult Factory for Details.
Specifications
Specifications
Franklin Electric 5FV1S4-3W230 Series V Submersible Pump Specifications
- Water Well Motors
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 1.0 HP
- VOLTAGE: 1ø, 230V
- RPM: 3450
- MAX AMBIENT TEMPERATURE: 120°F/49°C
- LEAD: 3-wire
- CONTROL BOX REQUIRED Water Well Pump Ends
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 5 GPM
- HORSEPOWER: 1.0 HP
- MAXIMUM CAPACITY: 8 GPM
- MAXIMUM HEAD: 620’
- STAGES: 8
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Acetal
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Franklin Electric Series V Submersible 5GPM Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Series V Submersible Pump Product Resources
Download Franklin Electric Series V Submersible Pump Catalog Pages
Download Franklin Electric Series V Submersible Pump Brochure
Download Franklin Electric Series V Submersible Pump Owner's Manual
