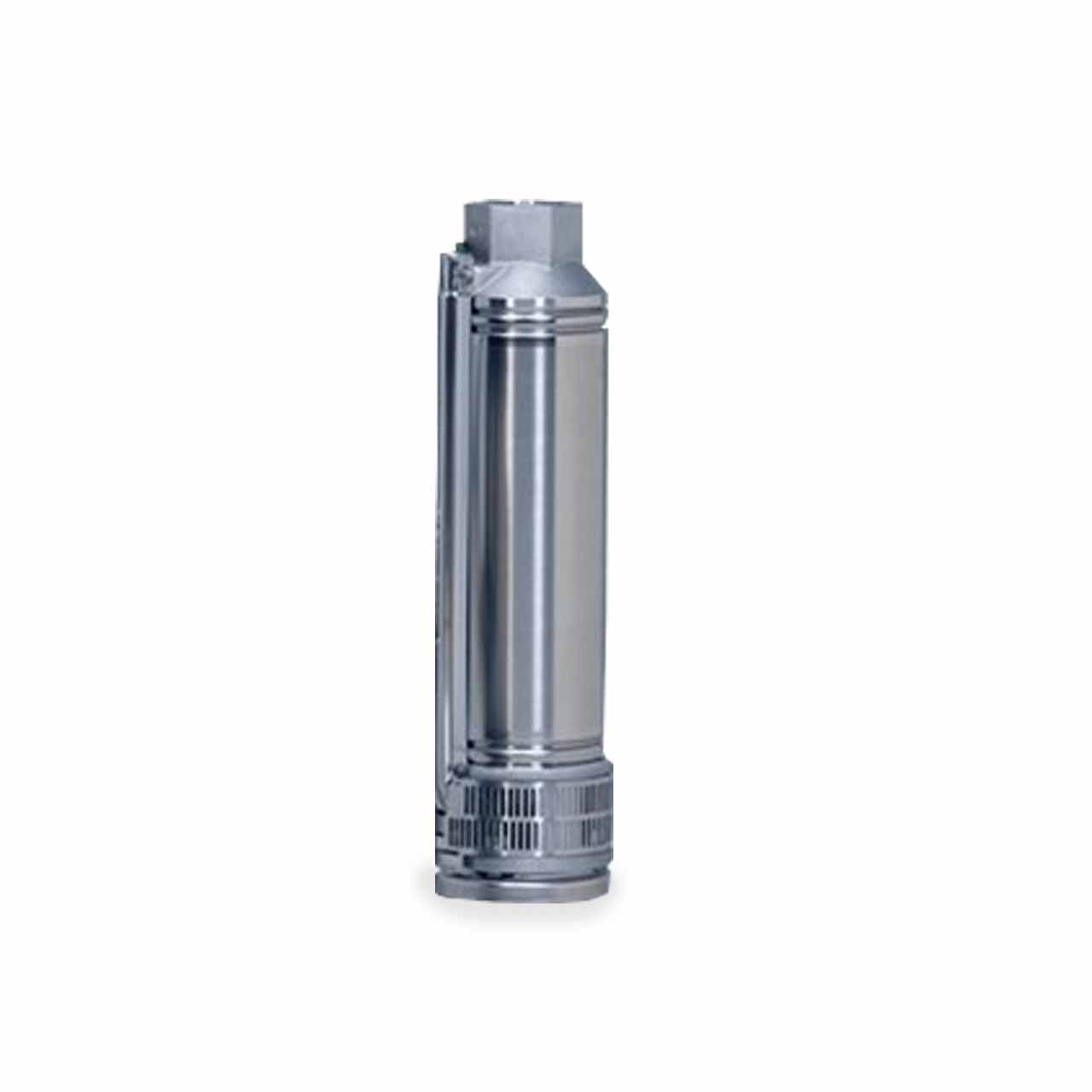

Franklin Electric 5FV07S4-PE Series V Submersible Pump End Only 5 GPM 0.75 HP
Franklin Electric 5FV07S4-PE Series V Submersible Pump End Only 5 GPM 0.75 HP
SKU : FEC95430501
In Stock Quantity:0
:
:
Brand
:
Regular price
$1,477.60 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Series V Submersible Pump
The standard FPS Series V submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. Available in 5, 7, 10, 15, 20, and 25 gpm, 1/2 - 5 horsepower.
Franklin Electric Series V Submersible Pump Features
- 6 Performance Ranges: 5, 7, 10, 15, 20, and 25 gpm.
- Horsepower Ranges: 1/2 - 5.
- Discharge Head and Motor Bracket Produced with Industry Proven, Engineered Materials. Available in 300 Series Stainless Steel or High Quality Thermoplastic Resins.
- Large Wrench Flat Area on the Discharge Head for Ease of Installation.
- Dry Run Designed Top Bearing Positively Supports the 300 Series Stainless Steel 7/16-inch Hex Shaft.
- Removable Internal Check Valve.
- Powered by Franklin Electric Corrosion-Resistant Super Stainless 4-inch Submersible Motors with Lightning Protection.
- Maximum Water Temperature with Proper Flow is 120°F/49°C. Consult Factory for Details.
Specifications
Specifications
Franklin Electric 5FV07S4-PE Series V Submersible Pump Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 5 GPM
- HORSEPOWER: 0.75 HP
- MAXIMUM CAPACITY: 8 GPM
- MAXIMUM HEAD: 500’
- STAGES: 12
- IMPELLER DESIGN: Floating Stack
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C
Franklin Electric Series V Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Series V Submersible Pump Product Resources
Download Franklin Electric Series V Submersible Pump Catalog Pages
Download Franklin Electric Series V Submersible Pump Brochure
Download Franklin Electric Series V Submersible Pump Owner's Manual
Warranty
Warranty
