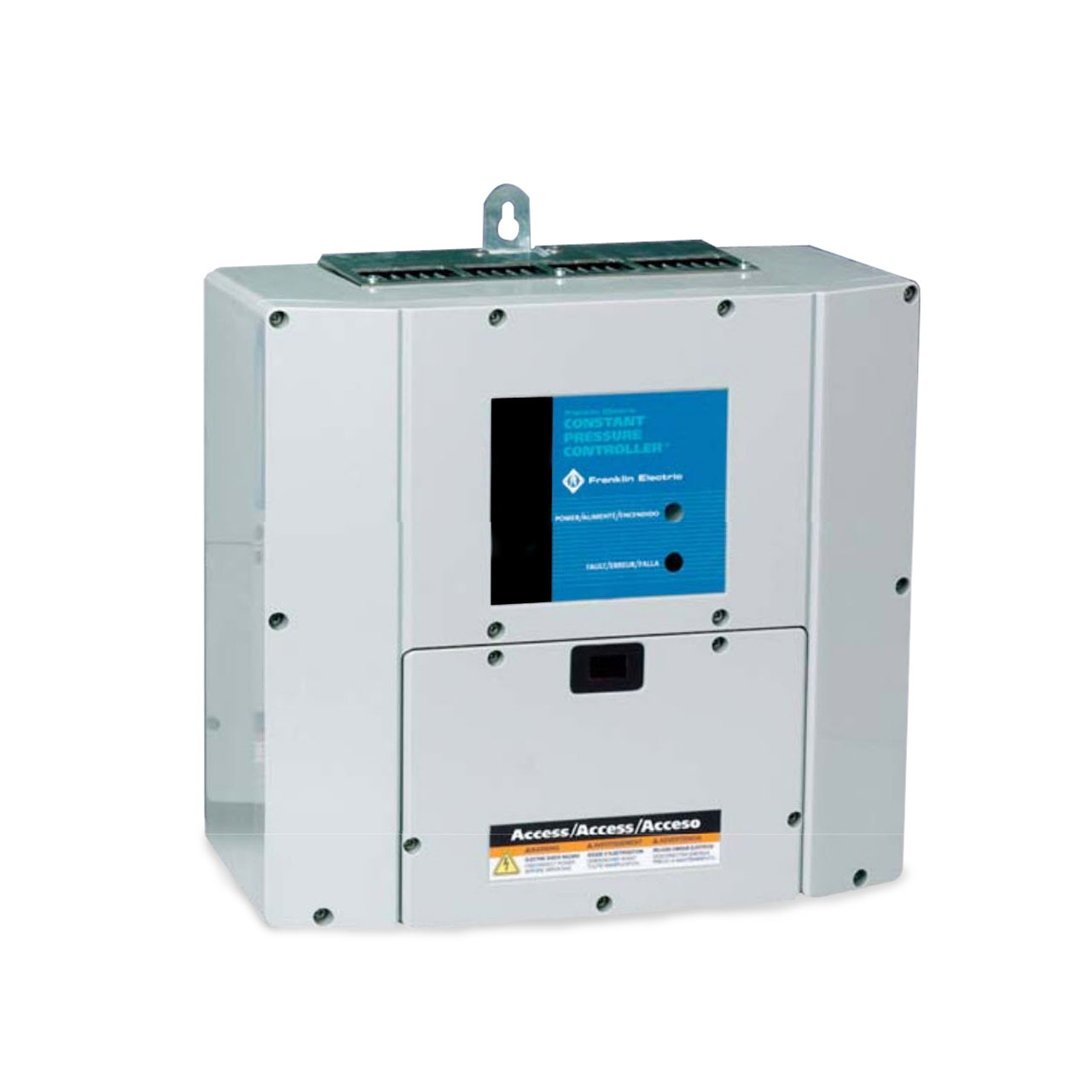

Franklin Electric 5870204104 SubDrive100 Submersible Motor Constant Pressure Controller NEMA4
Franklin Electric 5870204104 SubDrive100 Submersible Motor Constant Pressure Controller NEMA4
SKU : FEC5870204104
In Stock Quantity:1
:
:
Brand
:
Regular price
$4,239.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric SubDrive NEMA 4 Description
Franklin Electric's Constant Pressure Controllers use state-of-the-art technology to provide constant pressure through variable speed control of submersible water well pumps.
SubDrive75, SubDrive100, SubDrive150 and SubDrive300 Controllers are designed for three-phase motors to provide constant pressure with three-phase performance using single-phase input power. Designed with a NEMA 4 weatherproof enclosure, they offer rugged, watertight variable frequency drive solutions that meets water demand changes.
Franklin Electric SubDrive and MonoDrive Applications
- Residential Homes
- Restaurants
- Farms
- Schools
- Car Washes
- Landscape Irrigation Systems
Franklin Electric SubDrive NEMA 4 Features & Benefits
- Designed for Water Systems, Optimized for Constant Pressure: Designed Specifically for Water Pumping Applications, SubDrive & MonoDrive Deliver Unique Features:
- Provides Consistent Water Pressure Across a System, Eliminating Fluctuations
- Soft Start Maximizes System Life
- Advanced Filtering to Remove Radio Frequency Interference
- Additional Built-In Protections Include:
- Underload (Dry-Run) with Customizable Sensitivity
- Overload / Locked Pump
- Output Short Circuit and Open Circuit
- Undervoltage
- Electric Surge
- Overheated Controller
- Simple Installation: Easy-to-Install Drive; Most Applications Require the Simple Flip of One Switch, Saving Significant Time During Installation
- Versatility for Multiple Applications:
- From SubDrive 75 thru SubDrive 300, SubDrive (NEMA 4) Models are Designed to Provide Constant Pressure for Three-Phase Motors Using Single-Phase Input Power for 1-1/2 - 5HP Jobs.
- MonoDrive and MonoDrive XT (NEMA 4) are Designed to Convert a Conventional 1/2 HP to 2 HP, Single-Phase, 3-Wire Pump System into a Constant Pressure System by Simply Replacing the Control Box and Pressure Switch.
- Smaller Footprint, Smarter Use of Space:
- Compact Design, that is Ideal for Wall-Mounting, Works with Small Pressure Tanks or Existing Larger Tanks
- Ideal for Demanding Applications Since the Self-Contained NEMA 4 Enclosures (rated for indoor or outdoor use) Offer Robust Protection against Harsh Environmental Conditions
- Fully Supported: Comes Fully Supported by the Industry-Leading Technical Support Professionals and Field Service Engineers
Specifications
Specifications
Franklin Electric SubDrive 100 Specifications
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SubDrive and MonoDrive Resources
Franklin Electric Variable Frequency Drives-SubDrive NEMA 4 Brochure
Franklin Electric Constant Pressure Systems Brochure
Franklin Electric Constant Pressure Systems Homeowner Brochure
Franklin Electric SubDrive and MonoDrive Quick Installation Guide
Franklin Electric SubDrive and MonoDrive Full Installation Guide
