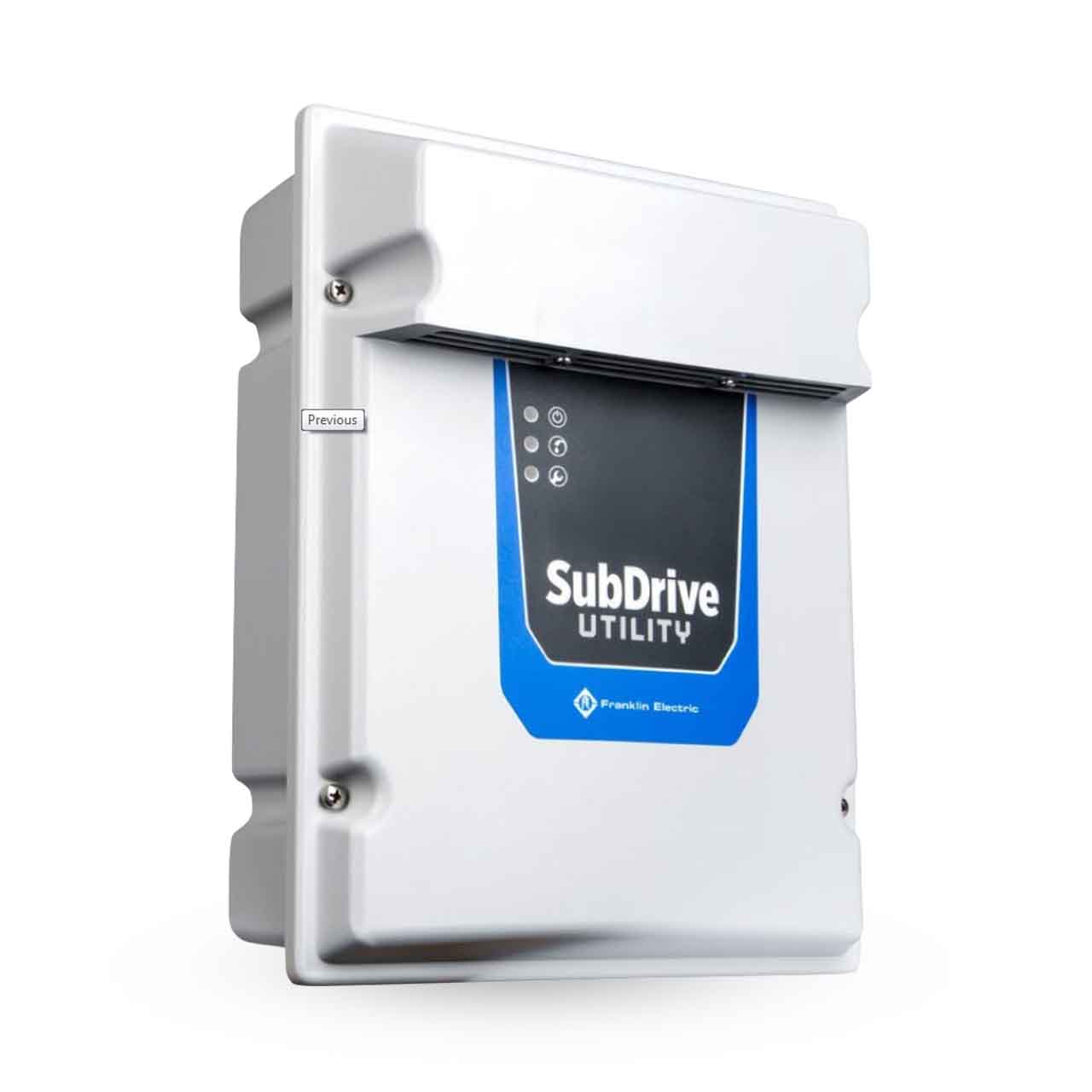

Franklin Electric SubDrive Utility Variable Frequency Drive

Franklin Electric's SubDrive Utility Variable Frequency Drive provide an easy-to-install constant pressure solution for 115 V and 230 V single-phase, two-wire systems and 230 V three-wire and three-phase systems up to 2HP.

Requiring only a small pressure tank in most applications, they offer a more compact overall footprint compared to traditional water systems while providing the added value of constant pressure and built-in motor protection.

Designed with a sleek NEMA 3R (Type 3R) enclosure, they are rated for both indoor and outdoor use that provides a degree of protection against falling rain or sleet.

Franklin Electric SubDrive Utility Variable Frequency Drive Features

• Designed for Water Systems, Optimized for Constant Pressure: Designed Specifically for Water Pumping Applications, SubDrive Utility Delivers Unique Features:
• Provides Consistent Water Pressure Across a System, Eliminate Fluctuations
• Additional Built-In Protections Include:
• Underload (Dry-Run) with Customizable Sensitivity
• Overload/Locked Pump
• Output Short Circuit and Open Circuit
• Undervoltage
• Simple Installation, Easy-To-Install Drive: Most Applications Require the Simple Life of one Switch, Saving Significant Time During Installation.
• Versatility for Multiple Applications:
• Ideal for Retrofitting or Optimizing Existing Single-Phase, Two-Wire or Three-Wire and Three-Phase Submersible or Above Ground Pumping Systems up to 2 Horsepower.
• Smaller Footprint, Smarter Use of Space:
• Compact Design, that is Ideal for Wall-Mounting, Works with Small Pressure Tanks or Existing Units
• Cost-Effective Solution that Replaces the Need for Multiple Control Boxes, A Pressure Switch and Larger Tanks; Delivers a Total System Cost at or Below Standard Installations with Pump Flows of 10 GPM and Greater
• Can be Used Indoors or Outside Since the Self-Contained NEMA 3R-Rated Drive Provides a Degree of Protection against Falling Rain or Sleet
• Fully Supported: Comes Fully Supported by the Industry's-Leading Technical Support Professional and Field Service Engineers.

Franklin Electric SubDrive Utility Frequency Drive Specifications
