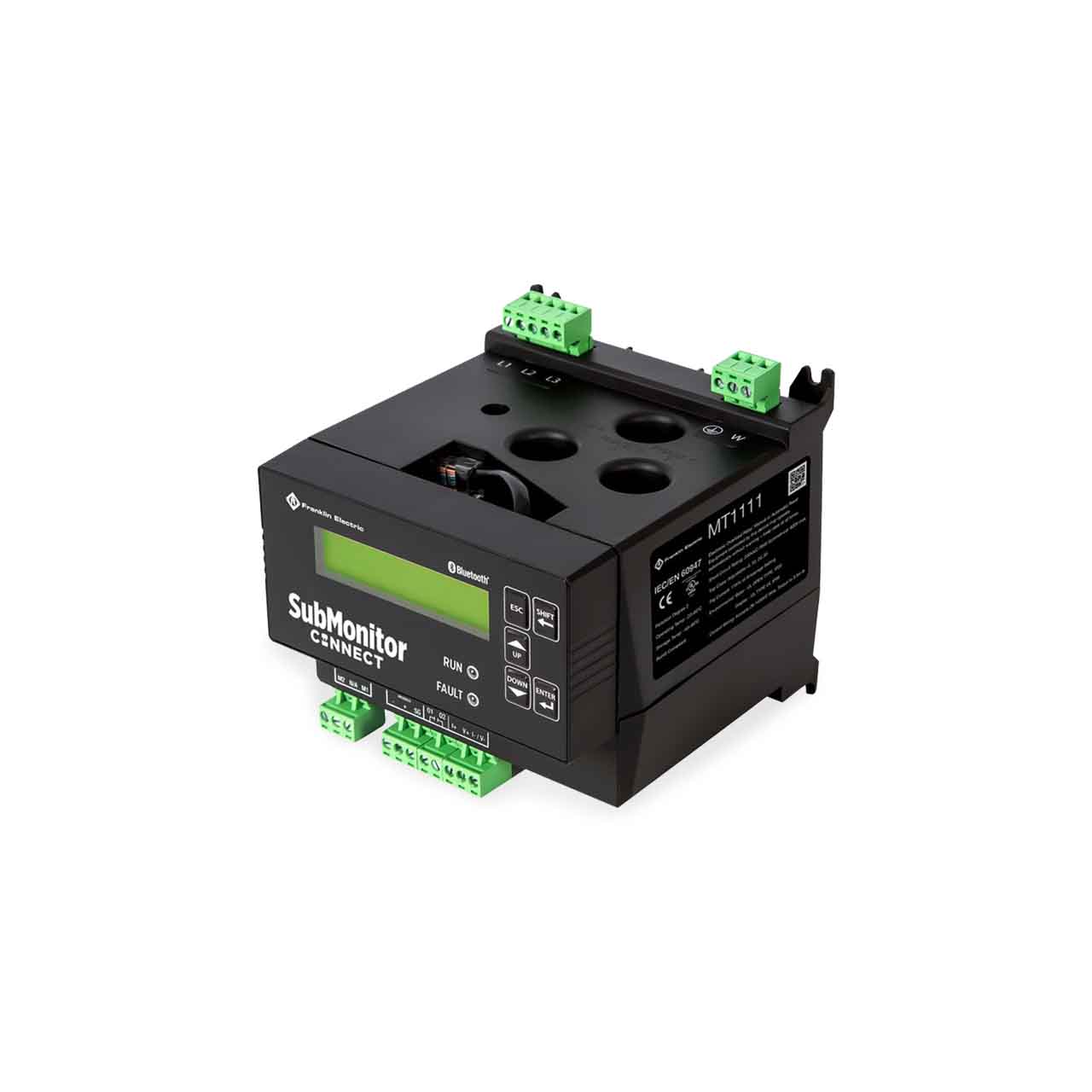

The newly designed SubMonitor Connect features the innovative FE Connect App that provides three-phase motor protection with the enhanced capabilities of real-time performance monitoring to improve troubleshooting. Also enjoy a simple plug-and-play designe that provides protection against arc flash, universal power supply and a NEMA 4X rated display. You can't always predict overload, dry run, dirty power conditions or other electrical mishaps, but you can be protected from them.

Franklin Electric SubMonitor Connect-Premium Features

• Display Door Mounting Kit and Surge Suppressor Included
• Electronic Overload Motor Protection
• Adjustable, Class 5-30 Electronic Overload
• Underload (dry-run protection), for Time-Based Automatic Restart with Well Recovery Mode
• Over/Under Voltage
• Current Phase Unbalance
• Cycle Fault
• Reverse Phase
• Easy Access to Input and Output Terminals
• 32 Character, Backlit, NEMA 4X, Wash-Down Rated Screen, Visible from the Front of the Panel
• Motor Insulation Check
• Real-Time and Date-Stamped Fault Logging
• Pre-Programmed Real Time Clock with a 10-Year Battery Backup
• Contains Separate Fault, Configuration Change and Start Logs
• Records Up to 150 Faults
• Application Based Setup
• Precise Protection Programming
• Nine-Step Wizard
• Preset Protection Parameters Available for Submersible, Surface or Custom Usages
