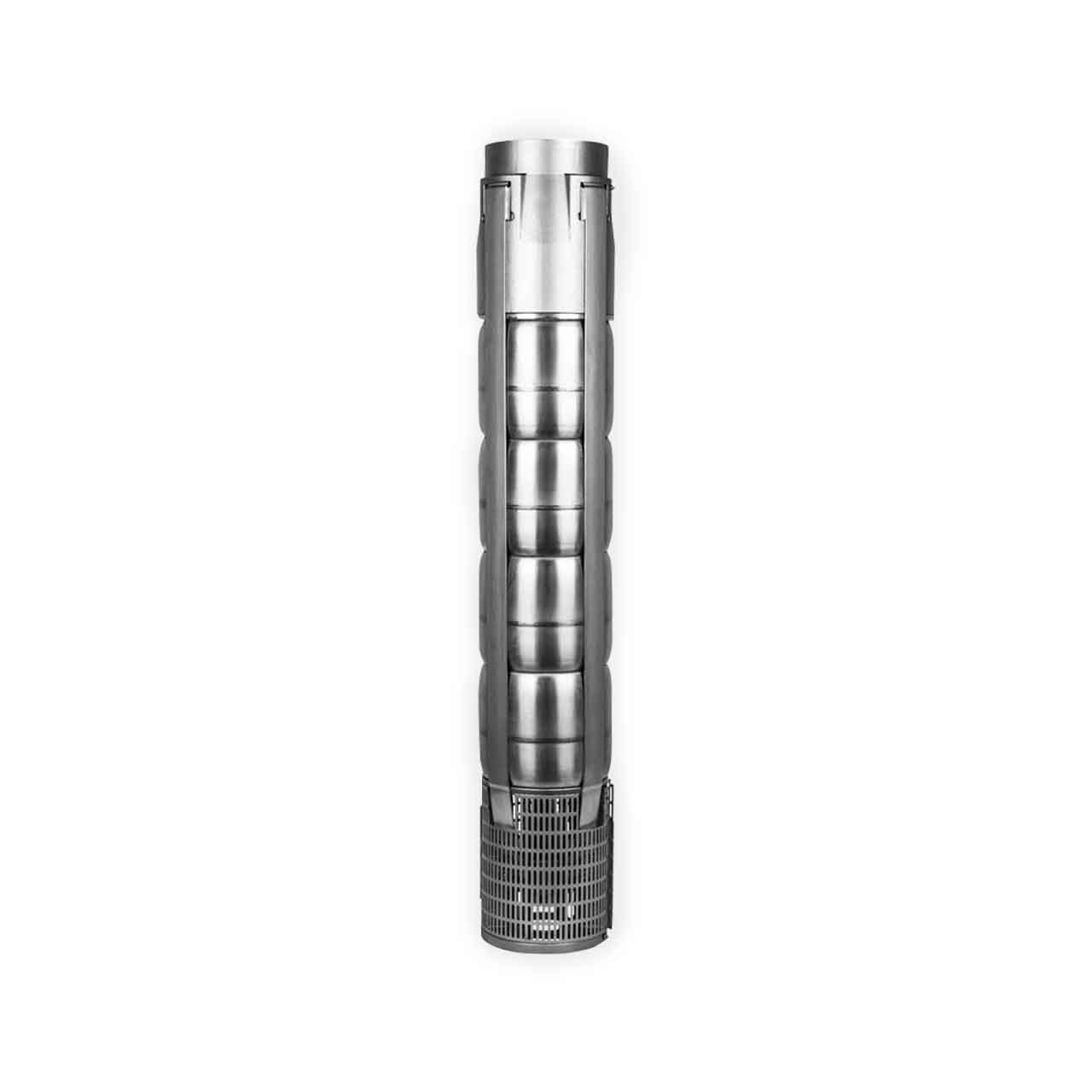

Franklin Electric 475SSI25F86-0365 8-Inch SSI Submersible Turbine Pump 475 GPM 25 HP
Franklin Electric 475SSI25F86-0365 8-Inch SSI Submersible Turbine Pump 475 GPM 25 HP
SKU : FEC617960301020082
In Stock Quantity:0
:
:
Brand
:
Regular price
$8,447.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric 8-Inch SSI Submersible Turbine Pump
The SSI Series Submersible Pumps meet the demanding pumping challenges in irrigation, agricultural, industrial, and municipal applications. Available in 6-inch, 8-inch, and 10-inch models with flows up to 1300 GPM, this stamped stainless steel pump family is fully serviceable and corrosion resistant. Its I-Blade technology offers stronger internal components for improved efficiency, while tungsten inert gas (TIG) progressive welding creates stronger welds.
Franklin Electric 8-Inch SSI Submersible Turbine Pump Applications
- Irrigation
- Agricultural
- Municipal
- Commercial
- De-Watering
Franklin Electric 8-Inch SSI Submersible Turbine Pump Features
- High Quality Die-Cut Stainless Steel Impellers and Diffusers for Durability in Demanding Applications
- Stainless Steel Construction for Corrosion Resistance
- Patented I-Type Blade Assembly Reduces Hydraulic Friction and Improves Pump Efficiency
- High Standard of Energy Efficiency for a Reduced Cost of Operation
- Nitrile Wear Rings and Fluted Bearings Ensure Durability Against Wear for Long-Lasting Performance and Reliability
- Four-Strap Design Reduces Irregular Compression Loading
- Built-In Check Valve to Protect Pump Against Water Hammer
- Fully Serviceable
Specifications
Specifications
Franklin Electric 475SSI25F86-0365 Submersible Turbine Pump Specifications
- DISCHARGE SIZE: 5.0” NPT
- NOMINAL FLOW RATING: 475 GPM
- HORSEPOWER: 25 HP
- MAXIMUM CAPACITY: 600 GPM
- MAXIMUM HEAD: 230’
- STAGES: 3
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Stainless Steel
- BODY MATERIAL: Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C
Franklin Electric 8-Inch SSI Submersible Turbine Pump 475 GPM Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric SSI Submersible Turbine Pump Product Resources
Download Franklin Electric SSI Submersible Turbine Pump Brochure
Download Franklin Electric SSI Submersible Turbine Pump Catalog Pages
Download Franklin Electric SSI Submersible Turbine Pump Manual
