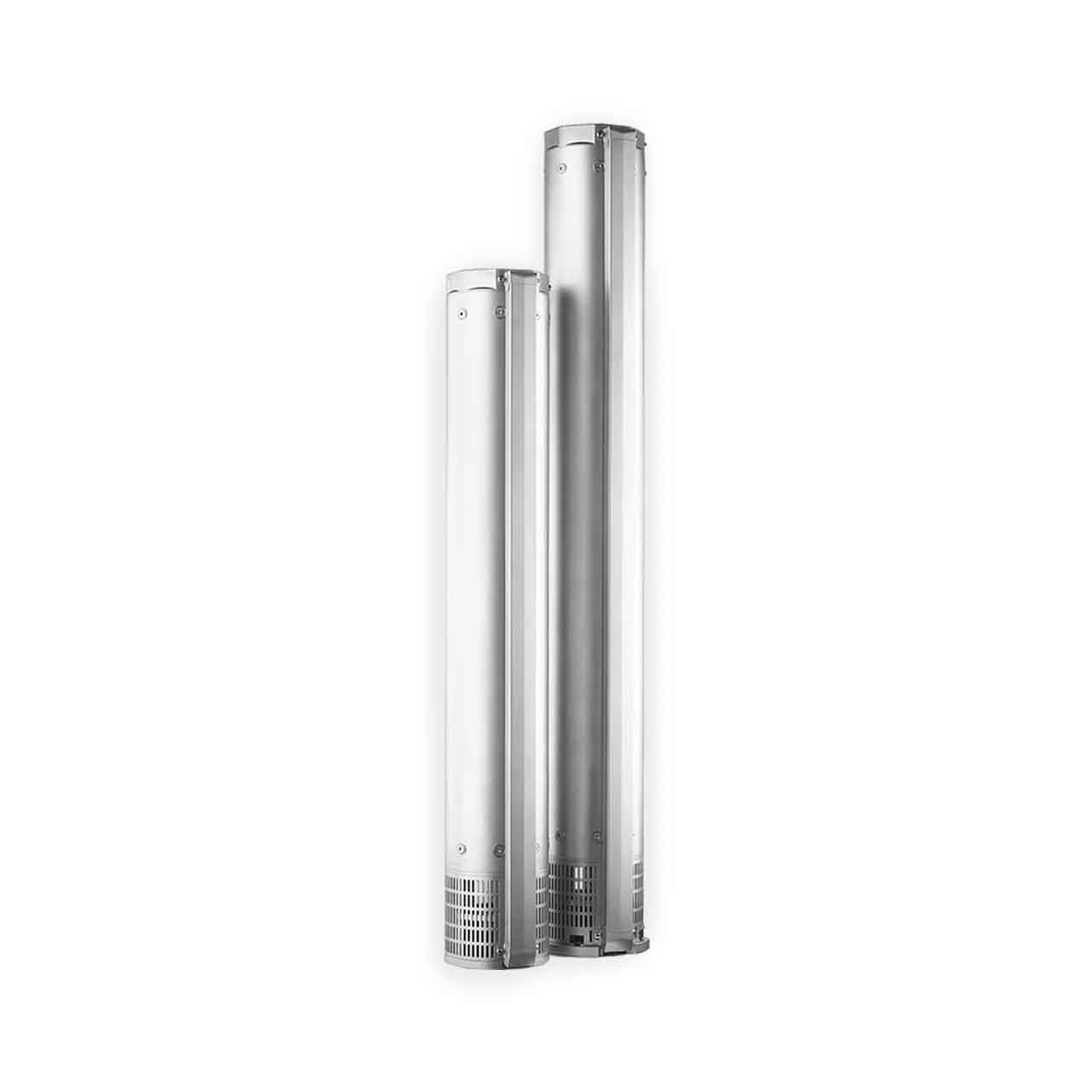

Franklin Electric 8-Inch SR Submersible Turbine Pump

Designed for industrial and agricultural applications, the SR Series submersible pump utilizes high grade stainless steel materials for the most demanding applications.

Franklin Electric 8-Inch SR Submersible Turbine Pump Applications

• Industrial
• Agricultural
• Irrigation
• Commercial

Franklin Electric 8-Inch SR Submersible Turbine Pump Features

• Stainless Steel Impellers and Diffusers to Resist Corrosion
• Heavy-Duty Stainless Steel Shell Assures Permanent Alignment of all Components to Increase Longevity and Enables Higher Pressures than Strap Designs
• PTFE Floating Wear Ring, Ceramic Bearing Journal, and Nitrile Rubber Fluted Bearing Ensure Durability Against Wear for Long-Lasting Performance and Reliability
• Suited to Operate in Horizontal Position
• Built-In Check Valve to Protect the Pump Against Water Hammer
• Energy-Efficient Hydraulic Design for Cost Effective Operation
• Space-Saving Compact Design.
• Easy to Install and Dismantle for Service in the Field if Necessary.
• Maximum Operating Temperature - 140 °F / 60 °C (304SS) and 194 °F / 90 °C (316SS).

Franklin Electric 475SR125F86-1486 Submersible Turbine Pump Specifications

• DISCHARGE SIZE: 4.0” NPT
• NOMINAL FLOW RATING: 475 GPM
• HORSEPOWER: 125 HP
• MAXIMUM CAPACITY: 660 GPM
• MAXIMUM HEAD: 1450’
• STAGES: 11
• IMPELLER DESIGN: Floating Stack
• IMPELLER MATERIAL: Stainless Steel
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C

Franklin Electric 8-Inch SR Submersible Turbine Pump 475 GPM Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric SR Submersible Turbine Pump Product Resources

Download Franklin Electric SR Submersible Turbine Pump Brochure

Download Franklin Electric 8-Inch SR Submersible Turbine Pump Specifications

Download Franklin SR Submersible Turbine Pump Owners Manual
