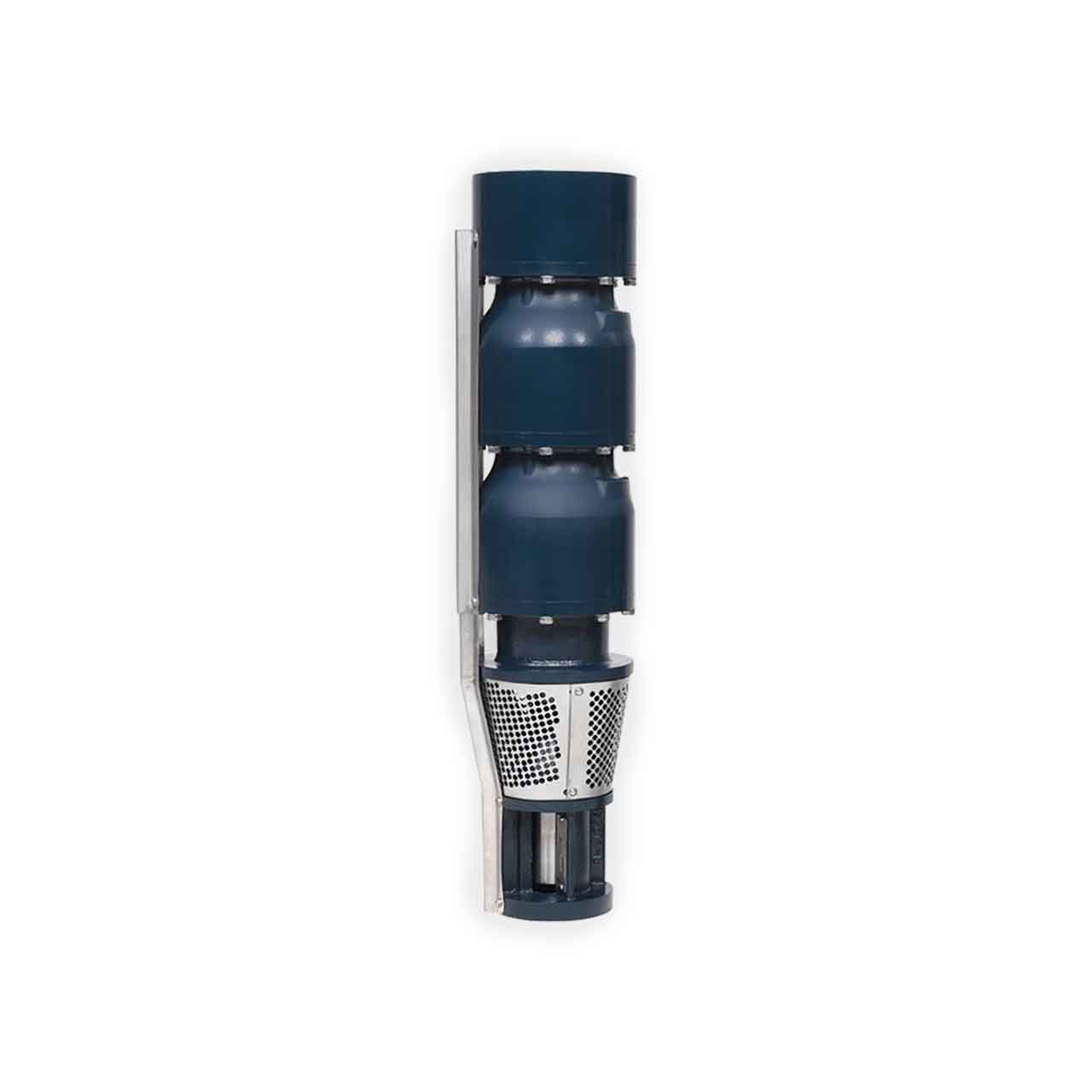

Franklin Electric 450STS60D8X-0486 8-Inch STS Submersible Turbine Pump 450 GPM 60 HP

Franklin Electric 450STS60D8X-0486 8-Inch STS Submersible Turbine Pump 450 GPM 60 HP

Usually ships within 2 weeks

SKU : FEC97080450904

In Stock Quantity:0

:
:
Brand : Franklin Electric
$7,163.10 USD
Shipping calculated at checkout.

Description

Franklin Electric™

Franklin Electric 8-Inch STS Submersible Turbine Pump

The complete STS Series product family includes 5-inch, 6-inch, 8-inch and 9-inch models ideal for irrigation, agricultural, industrial, commercial or municipal water pumping applications. It offers flows from 60 to 1600 GPM and a total dynamic head up to 2300 feet. Each pump features premium materials of construction, including ductile iron motor brackets, ductile iron discharges, cast 304 stainless steel impellers, robust spiral cutlass rubber intermediate bowl bearings and copper bismuth bronze discharge and motor bracket bearings.

Franklin Electric 8-Inch STS Submersible Turbine Pump Applications

  • Irrigation
  • Agricultural
  • Industrial
  • Municipal
  • Commercial

Franklin Electric 8-Inch STS Submersible Turbine Pump Features

  • 100% Franklin Electric Factory Wet Tested with Test Results Shipped with Each Pump
  • Premium Ductile Iron Casting for Longer Life and Higher Pressures
  • Longer Discharge and Motor Bracket Bearings for Increased Pump Life
  • Spiral Cutlass Rubber Intermediate Bearings Designed for Harsh Environments
  • 416 Stainless Steel Pump Shaft Ground and Polished for Maximum Durability
  • Investment Cast Stainless Steel Impellers for Maximum Abrasion Resistance
  • Custom Pumps Available

Specifications

Franklin Electric 450STS60D8X-0486 Submersible Turbine Pump Specifications

  • DISCHARGE SIZE: 6.0” NPT
  • NOMINAL FLOW RATING: 450 GPM
  • HORSEPOWER: 60 HP
  • MAXIMUM CAPACITY: 540 GPM
  • MAXIMUM HEAD: 475’
  • STAGES: 4
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Stainless Steel
  • BODY MATERIAL: Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C

Franklin Electric 8-Inch STS Submersible Turbine Pump 450 GPM Curve

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Franklin Electric STS Submersible Turbine Pump Product Resources


Download Franklin Electric STS Submersible Turbine Pump Brochure

Download Franklin Electric 8-Inch STS Submersible Turbine Pump Catalog Pages

Download Franklin Electric STS Submersible Turbine Pump Manual
