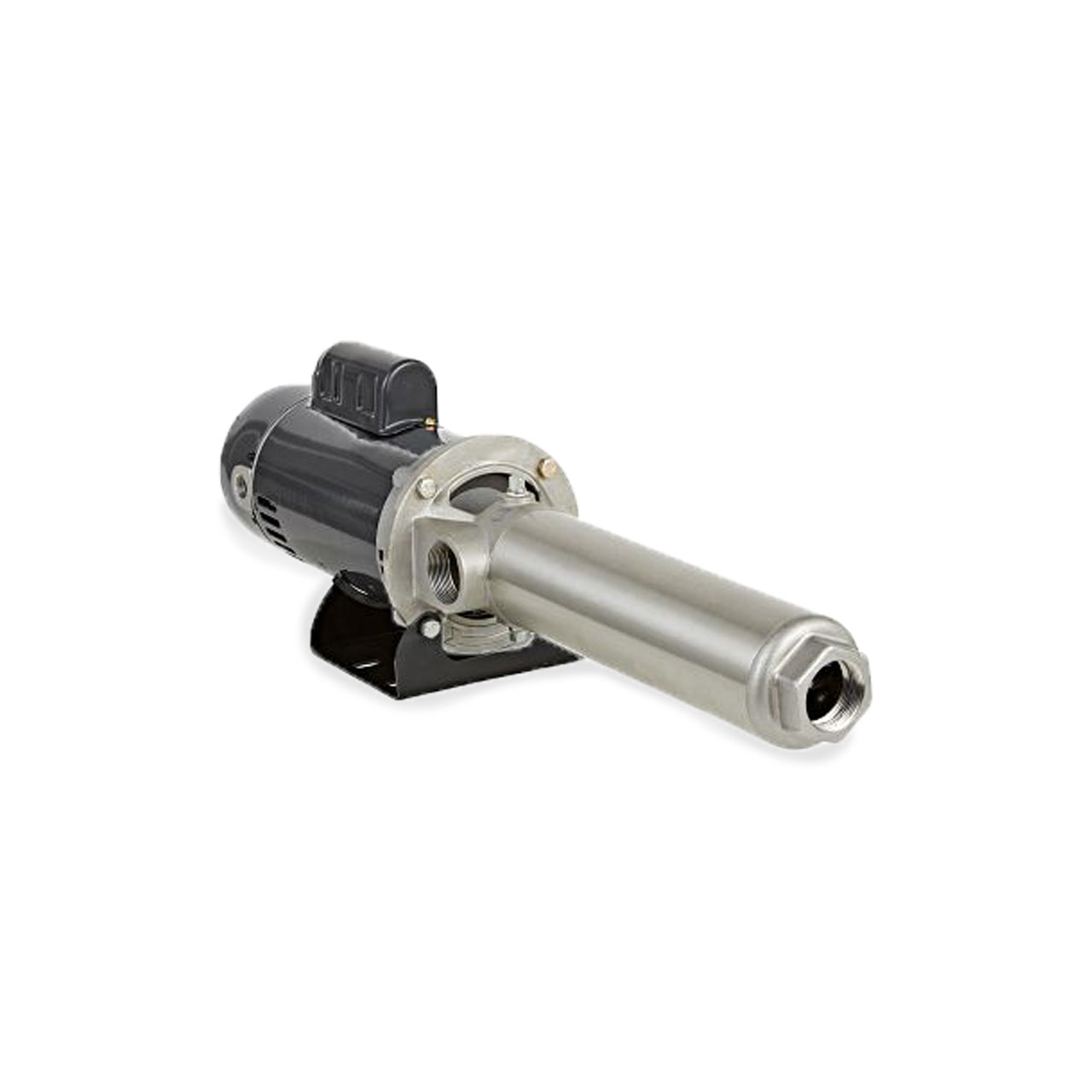

Franklin Electric 4507FBT3S4-S Horizontal Multi-Stage Booster Pump 3.0 HP 230V 1 Phase 45 GPM
Franklin Electric 4507FBT3S4-S Horizontal Multi-Stage Booster Pump 3.0 HP 230V 1 Phase 45 GPM
SKU : FEC95934507
In Stock Quantity:0
:
Brand
:
Regular price
$1,940.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Franklin Electric Horizontal Multi-Stage Booster Pump Description
The BT4 Horizontal Booster Pump is a low to medium capacity, high pressure, multi-stage unit. The BT4 can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow. Size ranges from 5 GPM to 45 GPM.
Franklin Electric Horizontal Multi-Stage Booster Pump Applications
- Boosting Water Pressure From City Mains or Private Water Systems
- Pressure Washing Buildings and Floors
- Poultry Houses
- Spray Cooling Equipment
- Lawn and Crop Irrigation
- Evaporative Cooling System Misters
- Water Circulation
- General Purpose Plumbing
- Reverse Osmosis
- Filtration
Franklin Electric Horizontal Multi-Stage Booster Pump Features
- Designed for Boosting Water Pressure from a Variety of Sources Including Municipal and Private Water Systems
- Enhanced Hydraulics for 35 & 45 GPM Nominal Ratings to Deliver More Efficient Pressure Boosting
- Robust Stainless Steel Bracket, Shell & Discharge Provide Optimum Corrosion Protection
- Equipped With 1.5" NPT Connections at Inlet and Outlet Minimize System Friction Loss
- Versatile Bracket can be Rotated in 90° Increments for Simplified, Compact Plumbing Arrangements
- Multiple Bracket Drain & Pressure Tappings Enable Draining in any Position and Provide for Bypass and Accessory Plumbing
- Back Pull-Out Design Enables Motor Removal for Servicing Without Disturbing Either the Pump or Plumbing
- NEMA Standard 56C Keyed Shaft Motors are Readily Available in ODP, TEFC Enclosures; 1 & 3-Phase for Common Voltages
- Pump Ends (less motors) Available to Fit an Existing 56C Motor
- Carbon-Ceramic-FKM Mechanical Seal is Capable of Handling a Variety of Fluids
- Maximum Inlet Pressure: 75 PSI
- Maximum Discharge Pressure: 400 PSI
- Maximum Fluid Handling Temperature: 120 °F (49 °C)
Specifications
Specifications
Franklin Electric 4507FBT3S4-S Booster Pump Specifications
- DISCHARGE SIZE: 1.5" NPT
- INLET SIZE: 1.5" NPT
- MAXIMUM CAPACITY: 67 GPM
- MAXIMUM HEAD: 220'
- STAGES: 7
- FULL LOAD AMPS: 15.7-14.2
- IMPELLER DESIGN: Closed; Acetal
- BODY CONSTRUCTION: Stainless Steel
- HORSEPOWER: 3.0
- MOTOR TYPE: ODP (Open Drip Proof)
- VOLTAGE: 1ø, 115/230V
- MAXIMUM LIQUID TEMPERATURE: 120°F/49°C
Franklin Electric Horizontal Multi-Stage Booster Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Franklin Electric Horizontal Multi-Stage Booster Pump Resources
Franklin Electric High Performance Booster Pump Product Pages
Franklin Electric High Performance Booster Pump Owner's Manual
