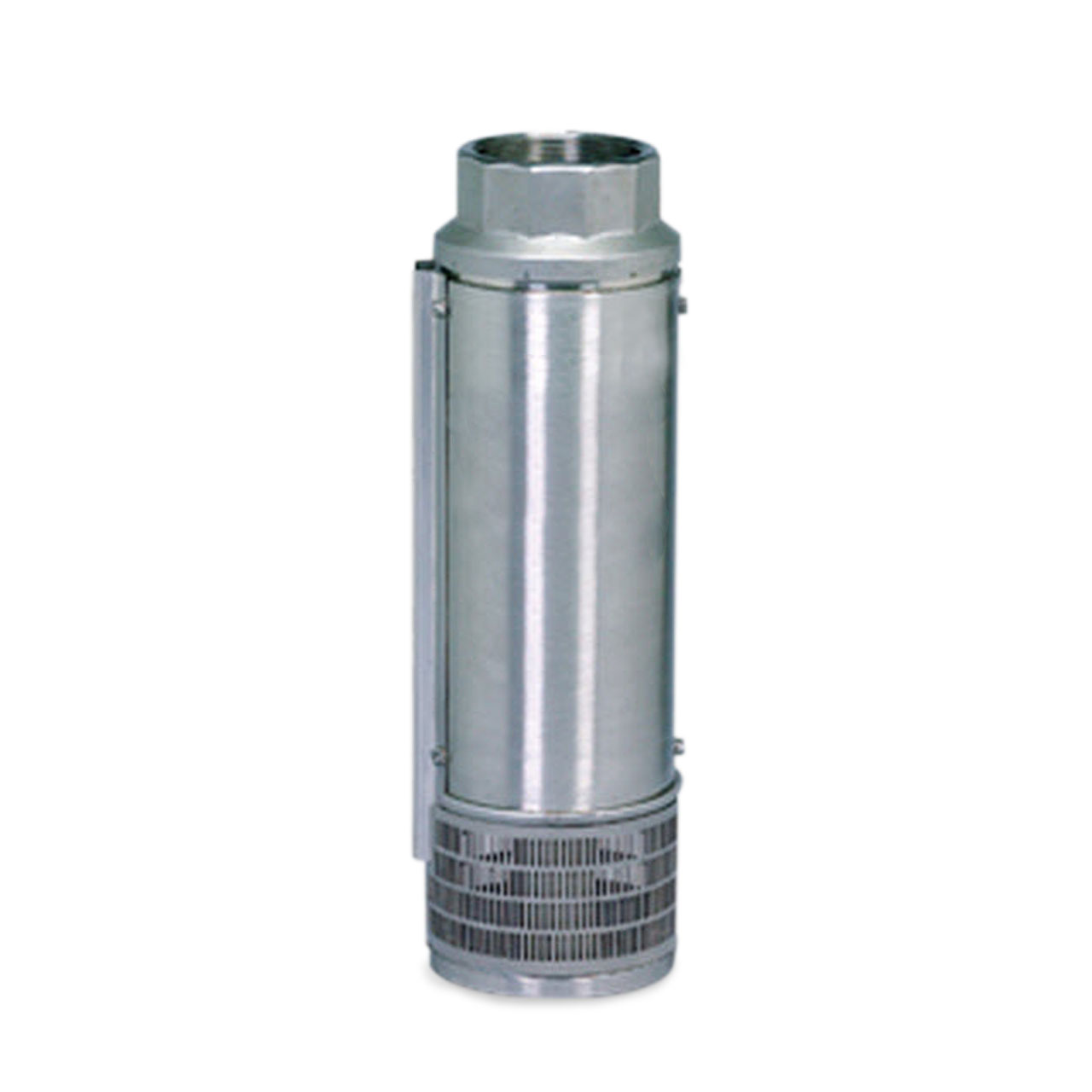

Discontinued See Replacement: Franklin Electric Tri-Seal 6" High Capacity 50FH7S6-PE Submersible Well Pump End Only 50 GPM 7.5 HP

Franklin Electric 4400 6" High Capacity Pumps

Ideal for farm, home, irrigation, industry, municipal and commercial applications, equipped with the power, performance and reliability you expect from Franklin Electric. Flow ratings of 50, 75, 100 and 125 gpm with TDH up to 1200 ft. Horsepower ranges from 1-1/2 to 40 hp.

Franklin Electric 4400 6" High Capacity Pump Features

• Heavy-Duty Stainless Steel Discharge Head and Motor Bracket
• Stainless Steel Shaft, Shell, Intake Screen and Cable Guard Provides Corrosion Resistance and Longer Pump Life
• Glass-Filled Modified PPO Nylon Impeller Stage Assemblies Provide Exceptional Strength and Durability
• Ceramic Shaft Sleeve and Rubber Discharge Bearing Minimize Bearing Wear and Shaft Misalignment
• 3" NPT Heavy-Duty Stainless Steel Discharge Head
• Modular Motor Bracket Enabling 4" or 6" Motor Mount for 5-10 Horsepower Units

Franklin Electric 4400 6" High Capacity Pump Specifications

• DISCHARGE SIZE: 3.0” NPT
• NOMINAL FLOW RATING: 50 GPM
• HORSEPOWER: 7.5 HP
• MAXIMUM CAPACITY: 75 GPM
• MAXIMUM HEAD: 595’
• STAGES: 11
• IMPELLER MATERIAL: Glass-Filled Modified PPO
• BODY MATERIAL:  Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C

Franklin Electric 4400 6" High Capacity 50 GPM Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric 4400 6" High Capacity Pump Product Resources

Download Franklin Electric 4400 6" High Capacity Catalog Pages

Download Franklin Electric 4400 6" High Capacity Manual
