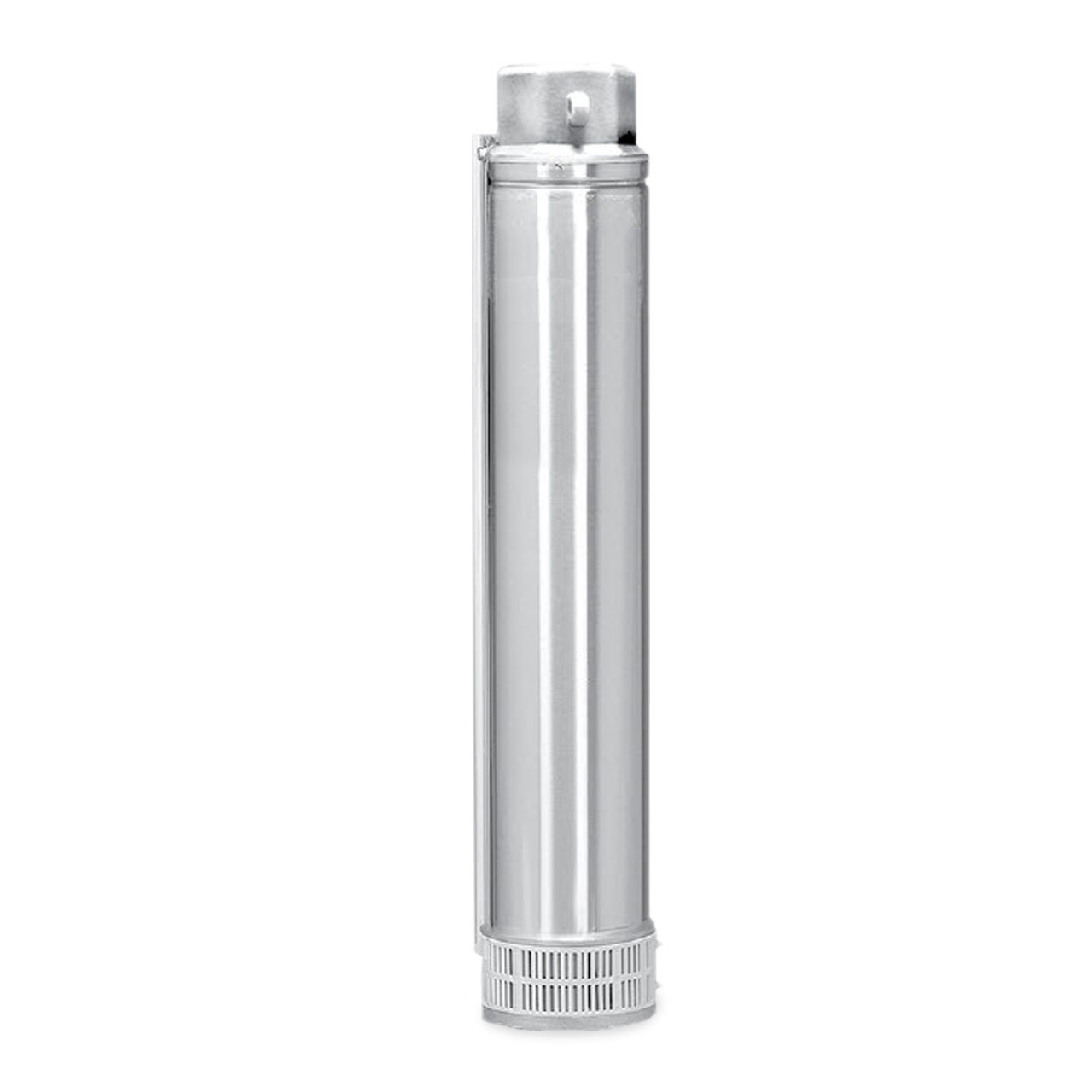

Discontinued See Replacement: Franklin Electric Tri-Seal 4" High Capacity 90FH7S4-PE Submersible Well Pump End Only 90 GPM 7.5 HP

Franklin Electric 4" High Capacity Pumps

Ideal for farm, home, irrigation, industry, municipal and commercial applications, equipped with the power, performance and reliability you expect from Franklin Electric. Flow ratings of 35, 45, 60 and 90 gpm with TDH up to 1200 ft. Horsepower ranges from 1 to 10 hp.

Franklin Electric 4" High Capacity Pump Features

• 4 Performance Ranges – 35, 45, 60 and 90 gpm
• Stainless Steel Discharge Head and Motor Bracket
• High Flow Impellers and Stages are Glass-Filled Modified PPO for Maximum Efficiency
• Ceramic Shaft Sleeve and Rubber Discharge Bearing Eliminates Sand Wear
• Intermediate Bearing for Increased Shaft Stability
• Floating Eye and Hub Seals for Improved Performance and Efficiency
• Stainless Steel Hex Pump Shaft, Shell and Shaft Coupling
• High Capacity Upthrust Assembly for Protection During Start-Up and Operation (45, 60 and 90 gpm models)
• Powered by Franklin Corrosion-Resistant 4” Submersible Motors
• 2” NPT Discharge
• Check Valve Must be Ordered Separately

Franklin Electric 4" High Capacity Pump Specifications

• DISCHARGE SIZE: 2.0” NPT
• NOMINAL FLOW RATING: 90 GPM
• HORSEPOWER: 7.5 HP
• MAXIMUM CAPACITY: 130 GPM
• MAXIMUM HEAD: 425’
• STAGES: 19
• IMPELLER MATERIAL: Glass-Filled Modified PPO
• BODY MATERIAL: Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 120°F / 49°C

Franklin Electric 4" High Capacity 90 GPM Well Pump Curve
